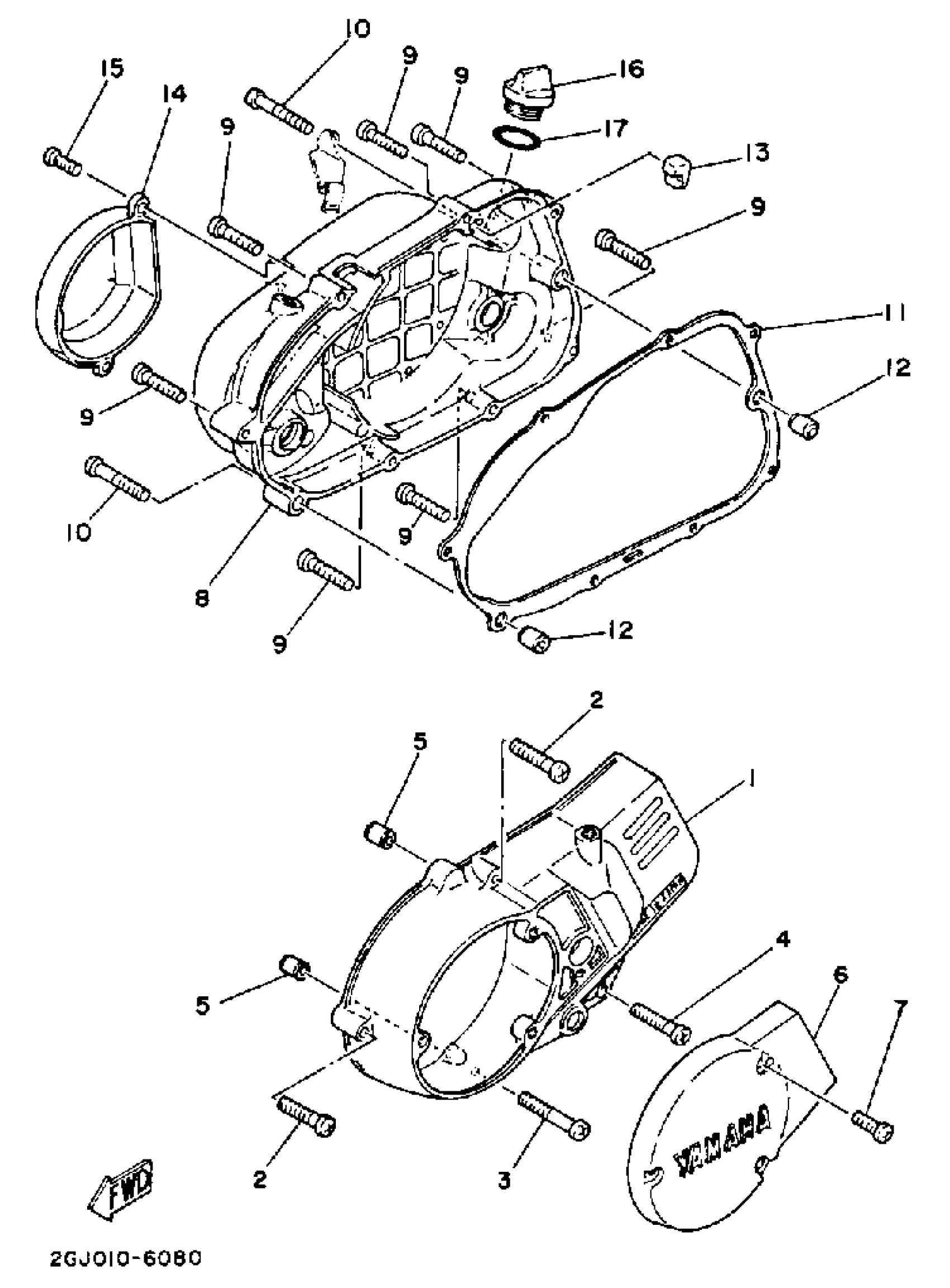

Yamaha YSR50U (YSR50U) 1988 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE L

3M7-15411-00-00

Unavailable

2

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

3

SCREW PAN HEAD

98580-06040-00

$8.49

4

SCREW PAN HEAD

98580-06545-00

$5.60

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

COVER, GENERATOR

3M7-15415-00-00

Unavailable

7

SCREW PAN HEAD

98580-06020-00

$8.49

8

COVER, CRANKCASE R

3M7-15421-00-00

Unavailable

9

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

10

SCREW PAN HEAD

98580-06040-00

$8.49

11

GASKET, CRANKCASE COVER 1

3MT-15451-00-00

$25.99

12

PIN, DOWEL(3VD)

99530-10114-00

$2.55

13

SCRAPER, OIL

353-15437-02-00

Unavailable

14

COVER, OIL PUMP

3M7-15416-00-00

Unavailable

15

SCREW, PAN

98507-06014-00

$8.49

16

PLUG, OIL

3Y1-15363-10-00

Unavailable

17

O-RING

93210-21190-00

Unavailable
