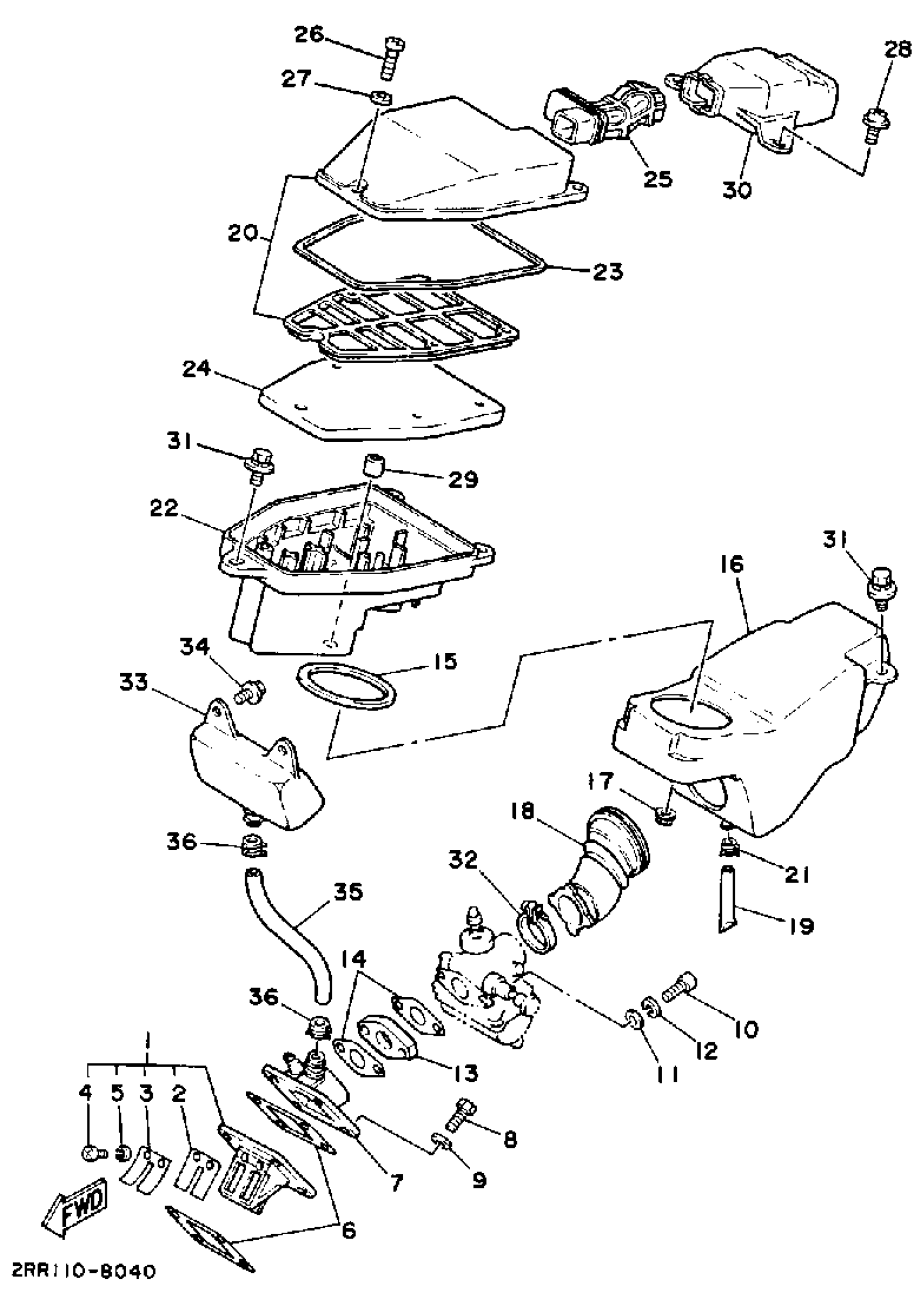

Yamaha YSR50U (YSR50U) 1988 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSY

53V-13610-00-00

$172.99

2

VALVE, REED

314-13613-01-00

Unavailable

3

. STOPPER, REED VALVE

10X-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

87A-13621-00-00

$8.99

7

JOINT, CARBURETOR

2AL-13565-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

BOLT,SOCKET

91317-06025-00

$5.60

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

WASHER, SPRING

92995-06100-00

Unavailable

13

MANIFOLD, INTAKE

353-13555-00-00

Unavailable

14

GASKET, MANIFOLD

3FD-13556-00-00

$7.99

15

SEAL

10W-14452-00-00

Unavailable

16

SILENCER, INTAKE 2

2AL-14441-00-00

Unavailable

17

NUT (21W)

90179-06403-00

Unavailable

18

JOINT, AIR CLNR 1

2AL-14453-00-00

Unavailable

19

PIPE, DRAIN

34X-1443E-00-00

Unavailable

20

AIR CLEANER CASE

10W-W1441-00-00

Unavailable

21

CLIP

90467-11028-00

Unavailable

22

CASE, AIR CLEANER 1

10W-14411-00-00

Unavailable

23

SEAL

1VJ-14462-00-00

Unavailable

24

ELEMENT, AIR CLEANER

10W-14451-00-00

Unavailable

25

DUCT

30W-14437-00-00

Unavailable

26

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

$2.80

28

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

29

SEAL

5H0-14462-00-00

Unavailable

30

COVER 1

2AL-14417-00-00

Unavailable

31

BOLT, WITH WASHER

90119-06152-00

Unavailable

32

CLAMP, HOSE

90460-33087-00

Unavailable

33

CHAMBER, AIR

2AL-13581-00-00

Unavailable

34

BOLT, WITH WASHER

90119-06152-00

Unavailable

35

PIPE

2AL-14465-00-00

Unavailable

36

CLIP (4V3)

90467-19051-00

Unavailable
