1992 Yamaha YSR50D (YSR50D) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1992 Yamaha YSR50D (YSR50D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

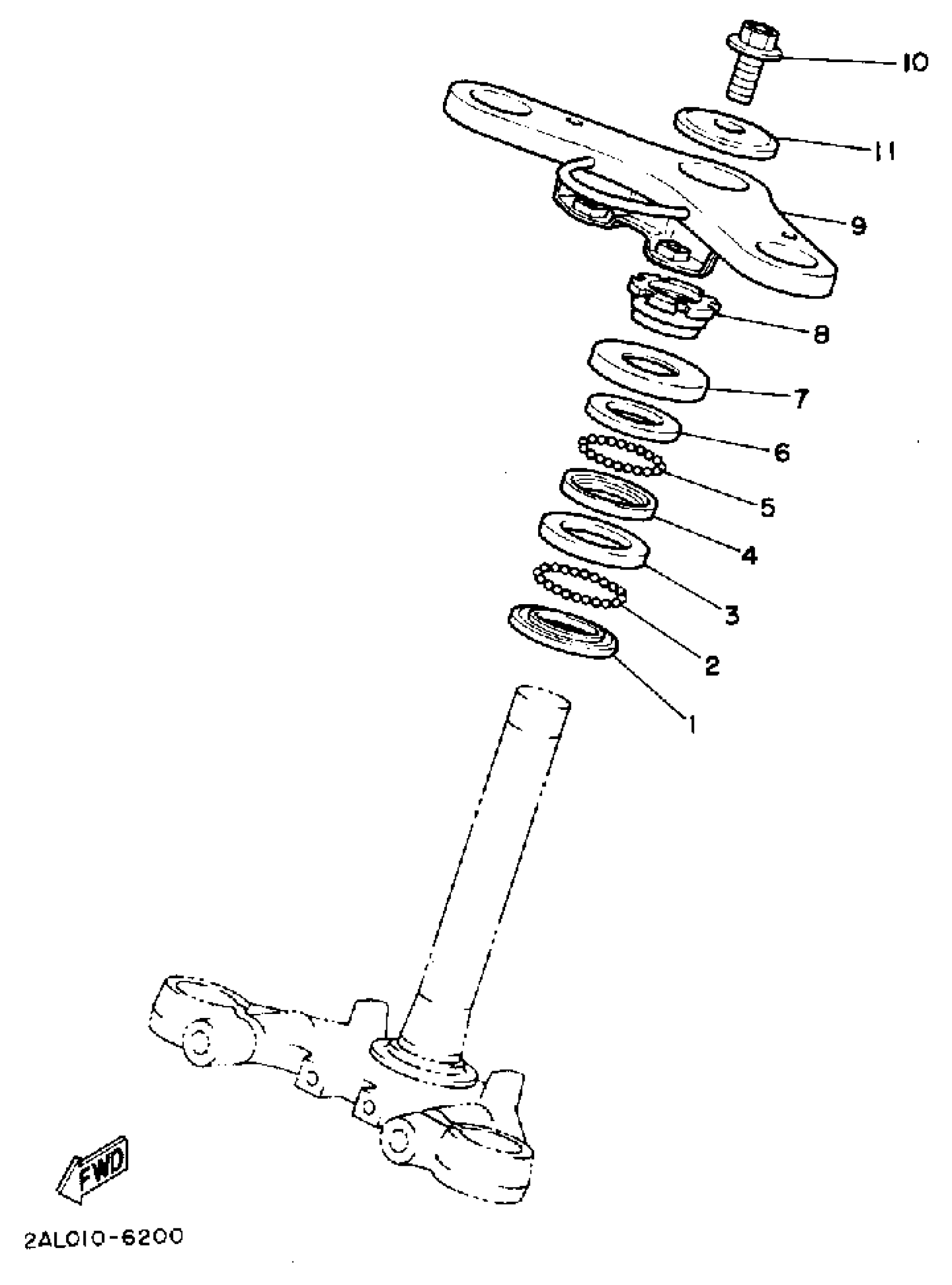

1992 Yamaha YSR50D (YSR50D) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

BALL

93501-04011-00

1
Out of stock

3

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

BALL

93503-16003-00

1

$2.14

In stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

8

NUT (122-23453-00)

90179-25051-00

1
Out of stock

9

CROWN, HANDLE

2AL-23435-00-35

1
Out of stock

10

BOLT, FLANGE

90105-10153-00

1

$5.62

In stock

11

WASHER (1YJ)

90209-10160-00

1

$5.68

In stock
