1992 Yamaha YSR50D (YSR50D) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1992 Yamaha YSR50D (YSR50D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

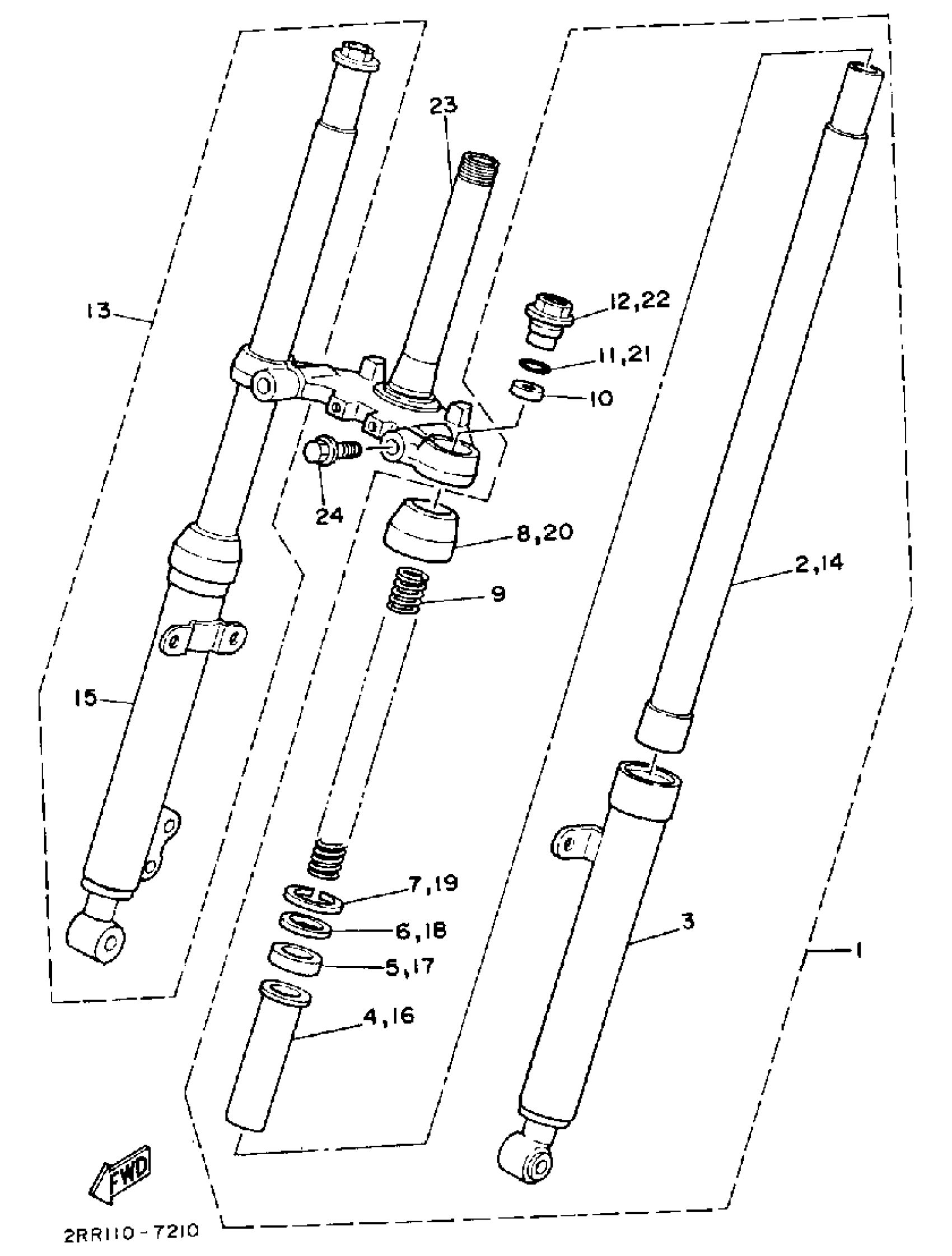

1992 Yamaha YSR50D (YSR50D) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

2RR-23102-00-00

1
Out of stock

2

. INNER TUBE COMP 1

2AL-23110-00-00

1
Out of stock

3

. OUTER TUBE COMP L

2RR-23106-00-35

1
Out of stock

4

. METAL, SLIDE 1

5A1-23125-00-00

1
Out of stock

5

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

6

. WASHR, OIL SEAL

5A1-23146-00-00

1
Out of stock

7

CIR-CLIP (70R)

93420-40064-00

—
Out of stock

8

SEAL, DUST

5A1-23144-00-00

1
Out of stock

9

. SPRING, FRONT FORK

2AL-23141-00-00

1
Out of stock

10

. SEAT, SPRING UPPER

5R2-23142-00-00

1
Out of stock

11

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

12

. BOLT, CAP

2AL-23111-00-00

1
Out of stock

13

FRONT FORK ASSEMBLY R

2RR-23103-00-00

1
Out of stock

14

. INNER TUBE COMP 1

2AL-23110-00-00

1
Out of stock

15

. OUTER TUBE COMP R

2RR-23107-00-35

1
Out of stock

16

. METAL, SLIDE 1

5A1-23125-00-00

1
Out of stock

17

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

18

. WASHR, OIL SEAL

5A1-23146-00-00

1
Out of stock

19

CIR-CLIP (70R)

93420-40064-00

—
Out of stock

20

SEAL, DUST

5A1-23144-00-00

1
Out of stock

21

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

22

. BOLT, CAP

2AL-23111-00-00

1
Out of stock

23

UNDER BRACKET

3AX-23340-00-00

1
Out of stock

24

BOLT, FLANGE

95817-10030-00

—

$6.17

In stock
