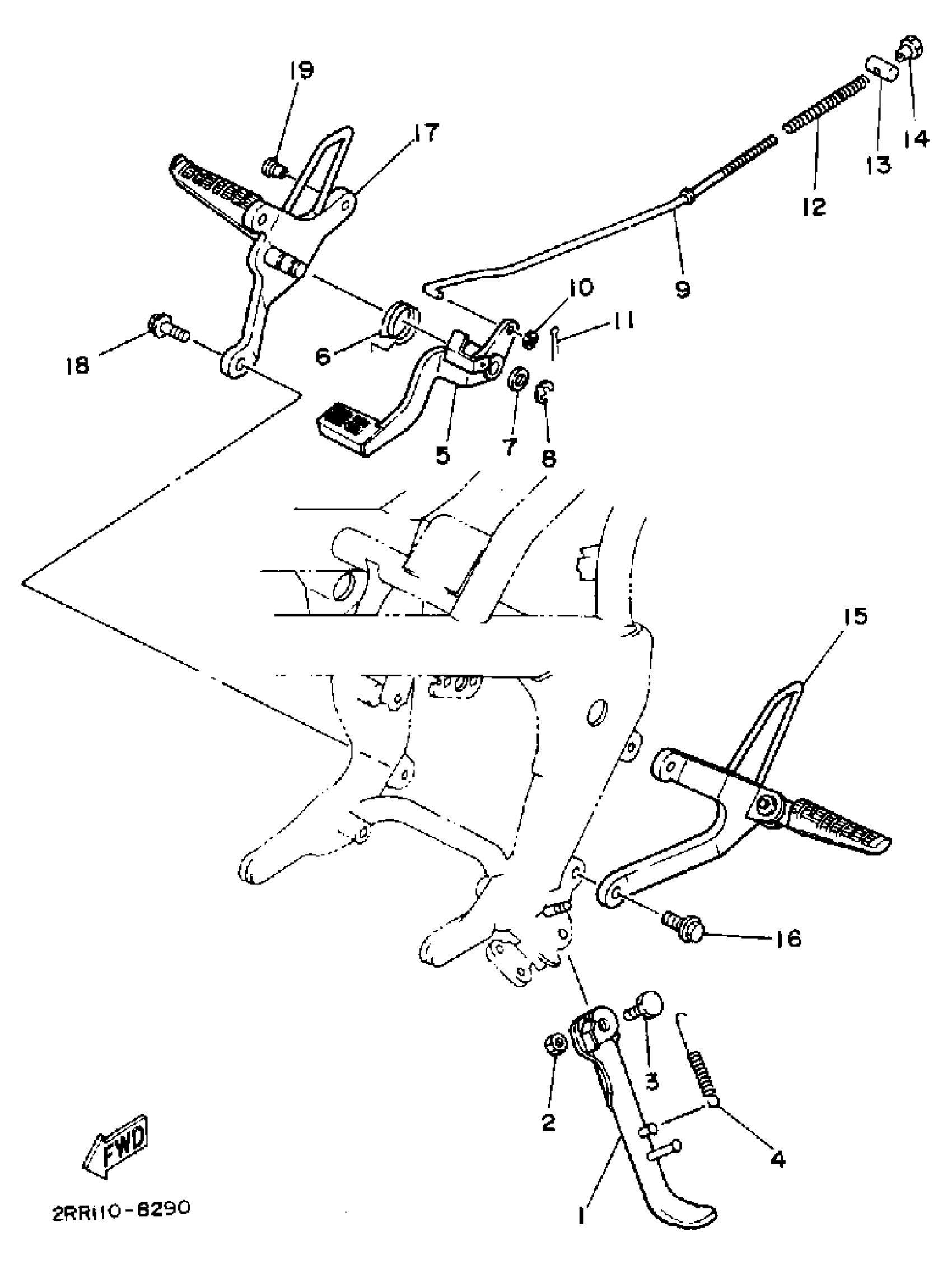

Yamaha YSR50D (YSR50D) 1992 STAND - FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

2RR-27311-00-R4

Unavailable

2

NUT

90185-08055-00

$9.49

3

BOLT 266273170000

90109-08034-00

$7.49

4

SPRING, TENSION

90506-26330-00

Unavailable

5

PEDAL, BRAKE

2AL-27211-01-91

Unavailable

6

SPRING, TORSION

90508-32716-00

Unavailable

7

WASHER PLATE 611441260000

90201-14212-00

$8.49

8

CIRCLIP (137)

93430-10015-00

$9.49

9

ROD, BRAKE

2AL-27231-00-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

PIN, COTTER

91490-20025-00

$1.99

12

SPRING, (180-27236-00)

90501-10245-00

$8.49

13

PIN 1562723700

90249-12008-00

$8.49

14

NUT (25K)

90179-06411-00

$8.49

15

FRONT FOOTREST ASSEMBLY L (LEFT)

2RR-27410-00-35

Unavailable

16

BOLT, WASHER BASED(36Y)

90105-08307-00

Unavailable

17

FRONT FOOTREST ASSEMBLY R (RIGHT)

2RR-27420-00-35

Unavailable

18

BOLT, WASHER BASED(36Y)

90105-08307-00

Unavailable

19

PLUG (17J)

90338-07124-00

Unavailable
