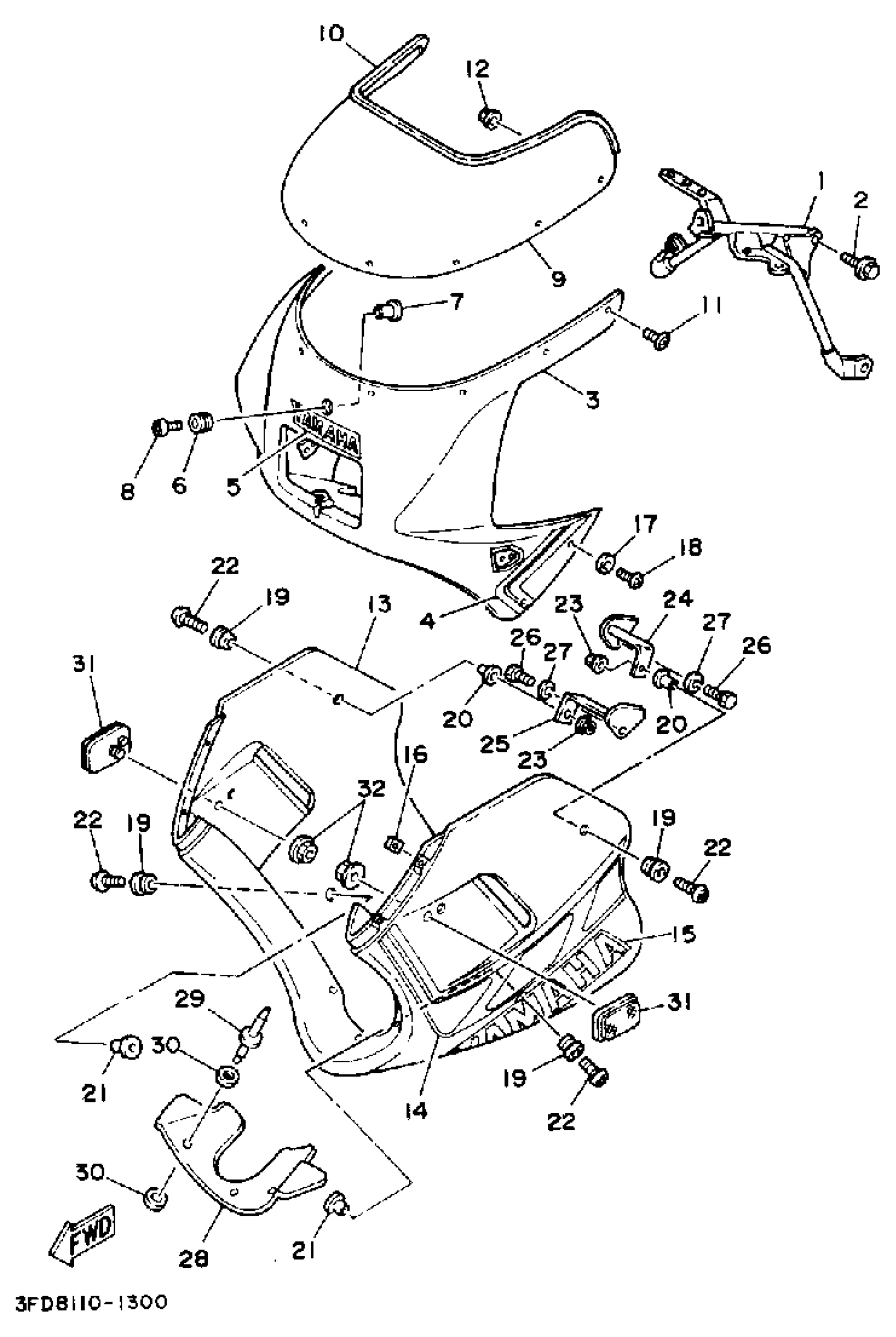

Yamaha YSR50D (YSR50D) 1992 FAIRING - COWLING Diagram

#

Description
Price

1

STAY 1

2RR-28356-00-00

Unavailable

2

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

3

BODY, FRONT UPPER 1

3FD-2835G-00-00

Unavailable

4

GRPHC SET, COWLING

2UE-28390-10-00

Unavailable

5

EMBLEM, YAMAHA

99241-00080-00

$13.99

6

GROMMET

90480-13014-00

$8.49

7

COLLAR

90387-06159-00

$8.49

8

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

9

SCREEN

2RR-2837U-00-00

Unavailable

10

MOLD 2

2AL-28346-00-00

Unavailable

11

SCREW, ROUND HEAD(46X)

90150-05020-00

$9.49

12

NUT, FLANGE(3GM)

95707-05500-00

$8.49

13

BODY, FRONT LOWER 1

2RR-2835J-30-00

Unavailable

14

GRAHIC SET, LWR CVRLOWER COVER 1

2UE-28301-10-00

Unavailable

15

EMBLEM, YAMAHA

99241-00240-00

Unavailable

16

NUT, SPRING

90183-051A0-00

Unavailable

17

WASHER PLATE 626441880000

90202-06007-00

Unavailable

18

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

19

GROMMET

90480-13014-00

$8.49

20

COLLAR(1LJ)

90387-067N5-00

Unavailable

21

COLLAR (420)

90387-06241-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

23

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

24

STAY, GUIDE 1

2AL-2831E-00-00

Unavailable

25

STAY, GUIDE 2

2AL-2831F-00-00

Unavailable

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

PANEL, INNER 1

2AL-2836K-00-00

Unavailable

29

RIVET, BLIND

90267-40029-00

Unavailable

30

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

31

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

32

NUT, FLANGE(3GM)

95707-05500-00

$8.49
