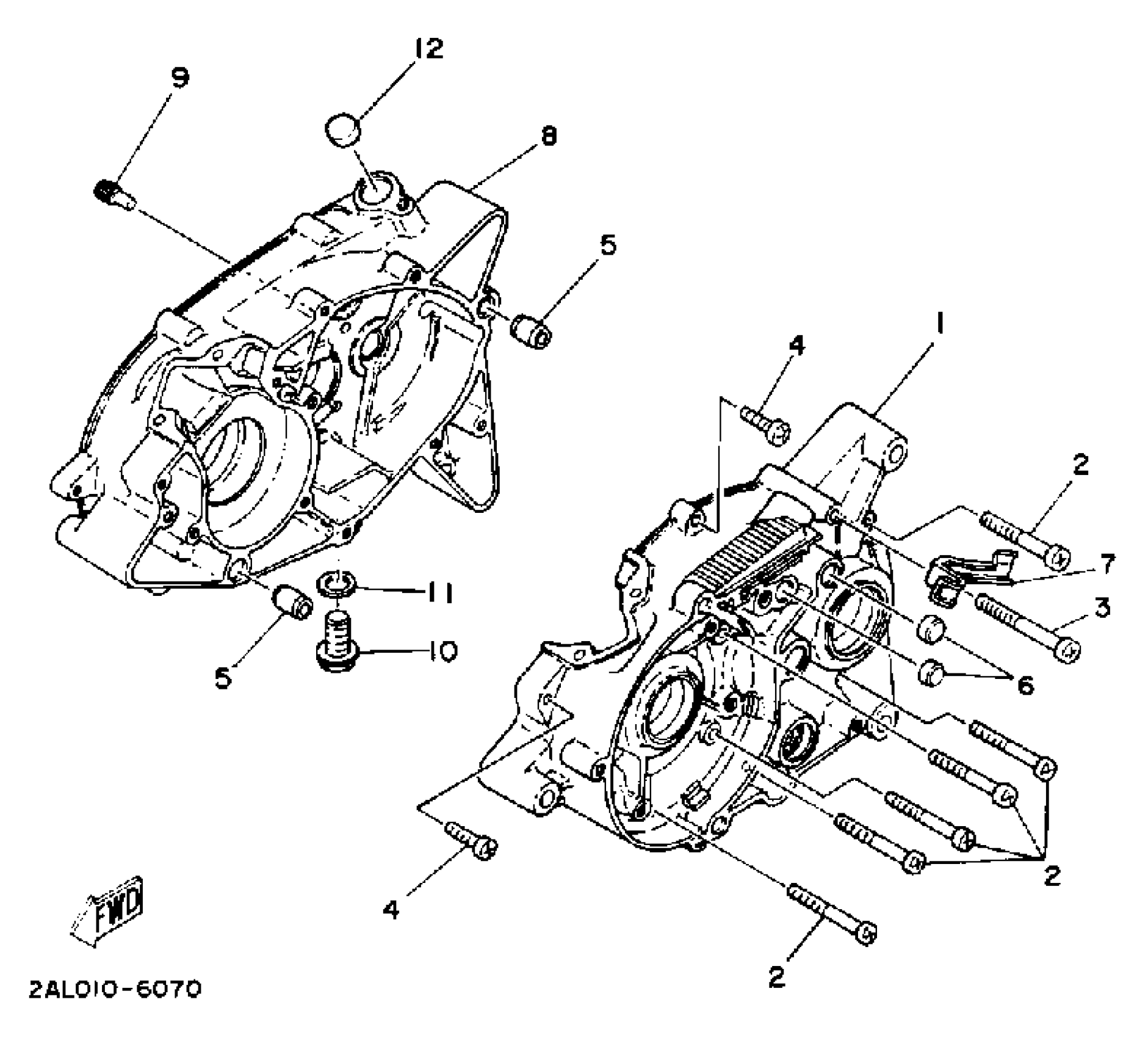

Yamaha YSR50D (YSR50D) 1992 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

3T2-15111-01-00

Unavailable

2

SCREW PAN HEAD

98580-06550-00

$5.87

3

SCREW, PANHED (GC2)

98580-06555-00

$4.67

4

SCREW, PAN HEAD (76T)

98517-06025-00

$2.96

5

PIN, DOWEL

99530-12016-00

$3.93

6

PLUG, STRAIGHT

90334-12009-00

Unavailable

7

CLAMP 2

3T2-15484-01-00

Unavailable

8

CRANKCASE 2

3T2-15121-02-00

Unavailable

9

STOPPER

492-15387-00-00

Unavailable

10

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$6.39

11

GASKET(3FD)

90430-12213-00

$4.79

12

PLUG(12Y)

90338-16029-00

Unavailable
