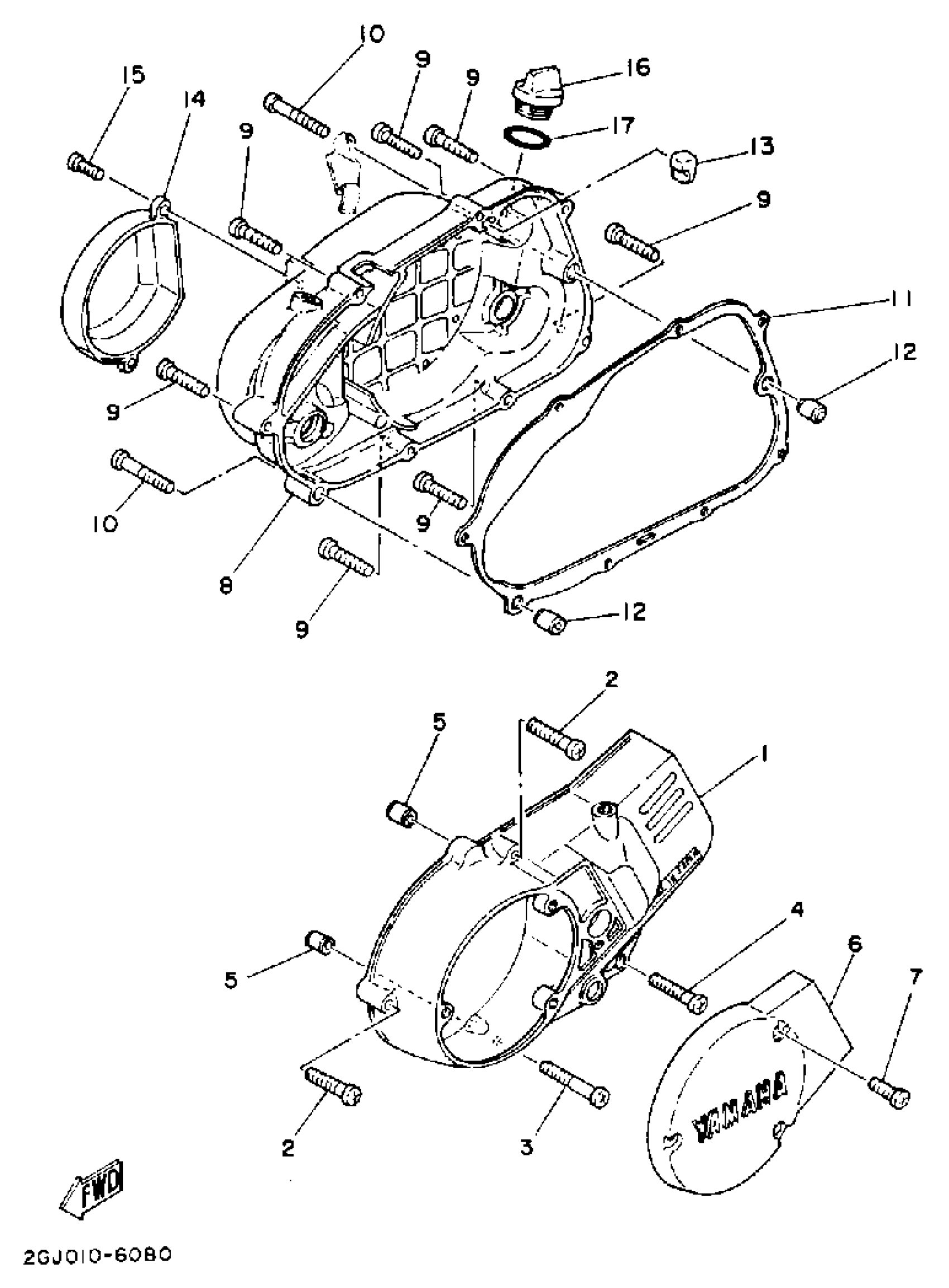

Yamaha YSR50D (YSR50D) 1992 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE L

3M7-15411-00-00

Unavailable

2

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.21

3

SCREW PAN HEAD

98580-06040-00

$5.87

4

SCREW PAN HEAD

98580-06545-00

$6.49

5

PIN, DOWEL(3VD)

99530-10114-00

$2.03

6

COVER, GENERATOR

3M7-15415-00-00

Unavailable

7

SCREW PAN HEAD

98580-06020-00

$6.08

8

COVER, CRANKCASE R

3M7-15421-00-00

Unavailable

9

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.21

10

SCREW PAN HEAD

98580-06040-00

$5.87

11

GASKET, CRANKCASE COVER 1

3MT-15451-00-00

$21.42

12

PIN, DOWEL(3VD)

99530-10114-00

$2.03

13

SCRAPER, OIL

353-15437-02-00

Unavailable

14

COVER, OIL PUMP

3M7-15416-00-00

Unavailable

15

SCREW, PAN HEAD

98580-06016-00

$2.76

16

PLUG, OIL

3Y1-15363-10-00

Unavailable

17

O-RING

93210-21190-00

Unavailable
