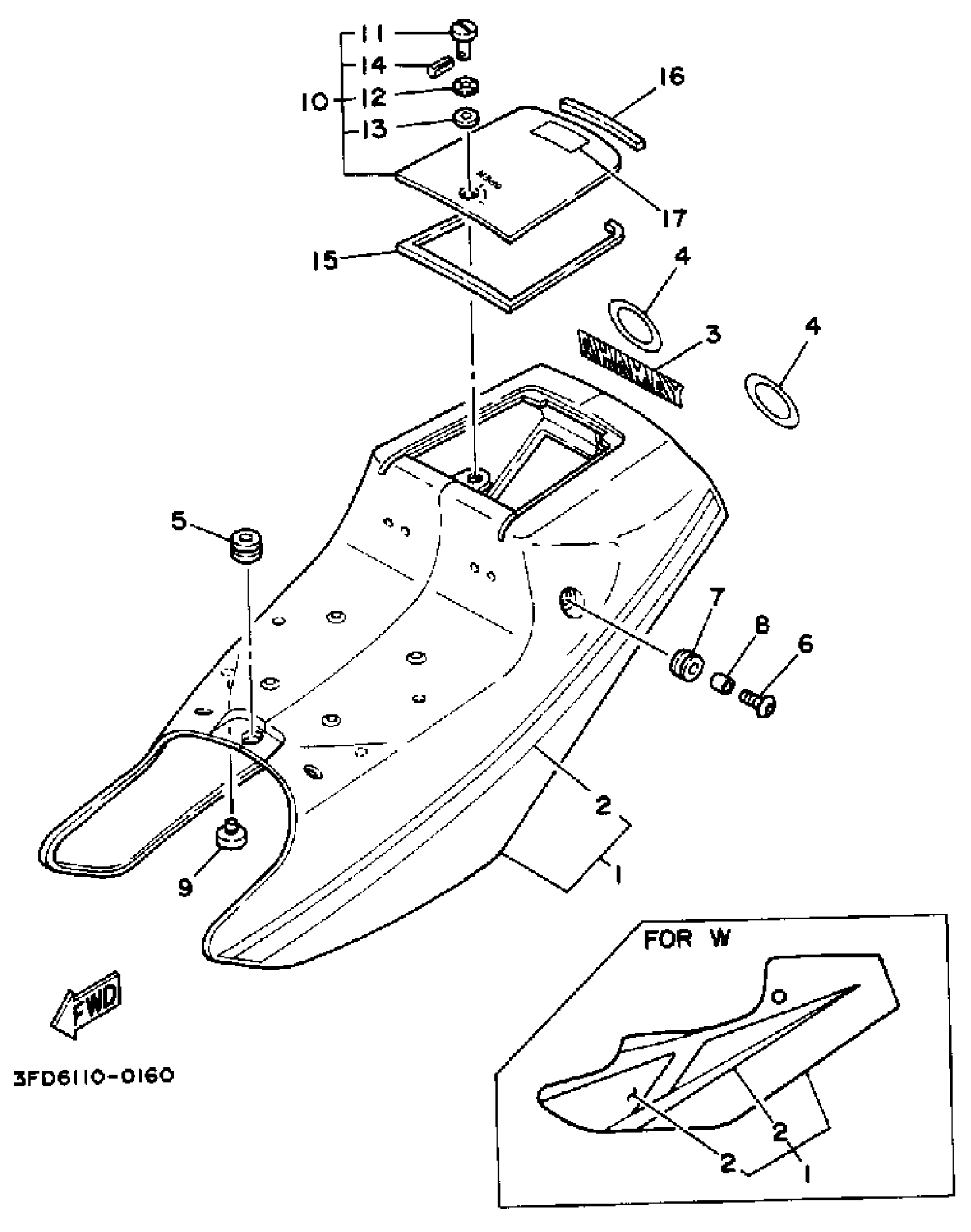

Yamaha YSR50A (YSR50A) 1990 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER, COMP.

2AL-W2178-20-00

Unavailable

1

SIDE COVER COMP

2AL-W2178-30-00

Unavailable

2

. GRAPHIC SET 1

3FD-2173L-10-00

Unavailable

2

. GRAPHIC SET 1

3FD-2173L-20-00

Unavailable

3

EMBLEM, YAMAHA

99243-00080-00

Unavailable

3

EMBLEM, YAMAHA

99246-00080-00

$20.99

4

COVER

2RR-2172W-01-00

Unavailable

5

GROMMET(2AL)

90480-14452-00

$8.49

6

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

7

GROMMET

90480-13014-00

$8.49

8

COLLAR(51L)

90387-067K6-00

$10.49

9

STOPPER

1M3-27114-00-00

$8.99

10

LID ASSEMBLY

2AL-W217E-10-00

Unavailable

10

LID ASSEMBLY (YB)

2AL-W217E-40-00

Unavailable

11

PIN(1HX)

90249-06191-00

$9.49

12

WASHER, WAVE(3RW)

90206-06090-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

14

PIN, SPRING

91690-25016-00

Unavailable

15

SEAL 1

2AL-21732-00-00

Unavailable

16

SEAL 2

2AL-21735-00-00

Unavailable

17

LABEL, WARNING 4

8H8-77764-00-00

Unavailable
