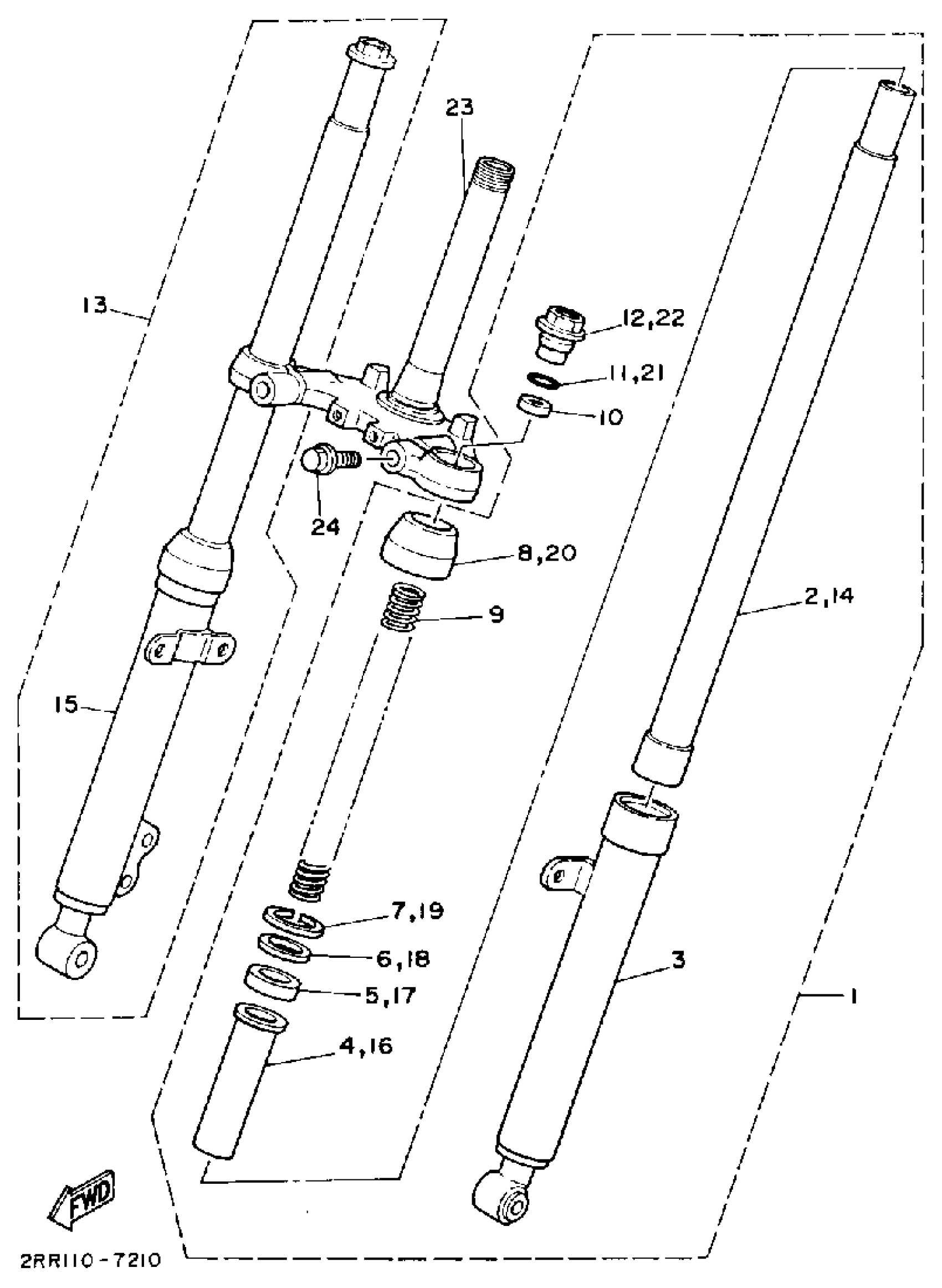

Yamaha YSR50A (YSR50A) 1990 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

2RR-23102-00-00

Unavailable

2

. INNER TUBE COMP 1

2AL-23110-00-00

Unavailable

3

. OUTER TUBE COMP L

2RR-23106-00-35

Unavailable

4

. METAL, SLIDE 1

5A1-23125-00-00

Unavailable

5

OIL SEAL (5R6)

93110-27010-00

Unavailable

6

. WASHR, OIL SEAL

5A1-23146-00-00

Unavailable

7

CIR-CLIP (70R)

93420-40064-00

Unavailable

8

SEAL, DUST

5A1-23144-00-00

$23.99

9

. SPRING, FRONT FORK

2AL-23141-00-00

Unavailable

10

. SEAT, SPRING UPPER

5R2-23142-00-00

Unavailable

11

O-RING(36Y)

93210-17570-00

$7.49

12

. BOLT, CAP

2AL-23111-00-00

Unavailable

13

FRONT FORK ASSEMBLY R

2RR-23103-00-00

Unavailable

14

. INNER TUBE COMP 1

2AL-23110-00-00

Unavailable

15

. OUTER TUBE COMP R

2RR-23107-00-35

Unavailable

16

. METAL, SLIDE 1

5A1-23125-00-00

Unavailable

17

OIL SEAL (5R6)

93110-27010-00

Unavailable

18

. WASHR, OIL SEAL

5A1-23146-00-00

Unavailable

19

CIR-CLIP (70R)

93420-40064-00

Unavailable

20

SEAL, DUST

5A1-23144-00-00

$23.99

21

O-RING(36Y)

93210-17570-00

$7.49

22

. BOLT, CAP

2AL-23111-00-00

Unavailable

23

UNDER BRACKET

3AX-23340-00-00

Unavailable

24

BOLT, FLANGE

95817-10030-00

Unavailable
