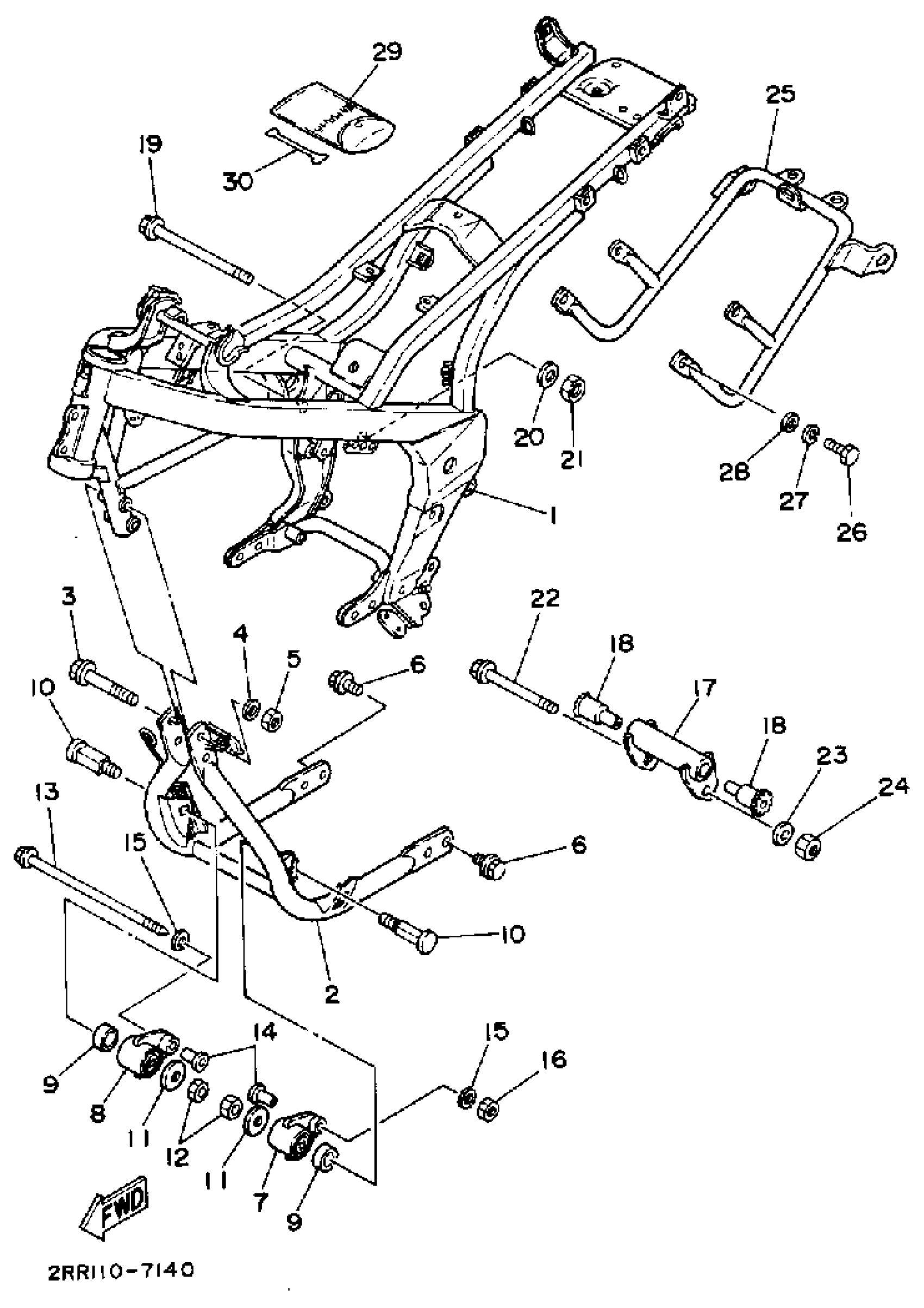

Yamaha YSR50A (YSR50A) 1990 FRAME Diagram
#
Description
Price
1
FRAME, COMP.
2RR-21110-02-35
Unavailable
2
TUBE, DOWN
2GX-21140-01-00
Unavailable
3
BOLT,WASHER BASED
90105-08521-00
Unavailable
7
ENGINE BRACKET SUB-COMP. 1
2GX-2140X-00-00
Unavailable
8
UNAVAILABLE IN PRICE BOOKSUB-COMP. 2
2X2-140Y0-00-0
Unavailable
9
COLLAR
2GX-21116-00-00
Unavailable
10
BOLT, ENGINE MOUNTING 1
5G3-21481-00-00
Unavailable
13
BOLT, WASHER BASED
90105-08473-00
Unavailable
17
BRACKET, ENGINE LOWER
2AL-21489-00-00
Unavailable
18
DAMPER 2
2GX-21486-00-00
Unavailable
19
BOLT
90105-08024-00
Unavailable
22
BOLT,WASHER BASED
90105-08100-00
Unavailable
25
HANDLE, STANDING
2RR-21165-00-00
Unavailable
26
BOLT, HEXAGON
97013-08016-00
Unavailable
27
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
28
.. WASHER, PLATE
92990-08600-00
Unavailable
29
TOOL KIT
2U2-W2810-00-00
Unavailable
30
GAUGE, LEVEL
353-15361-00-00
Unavailable
