FAIRING-COWLING

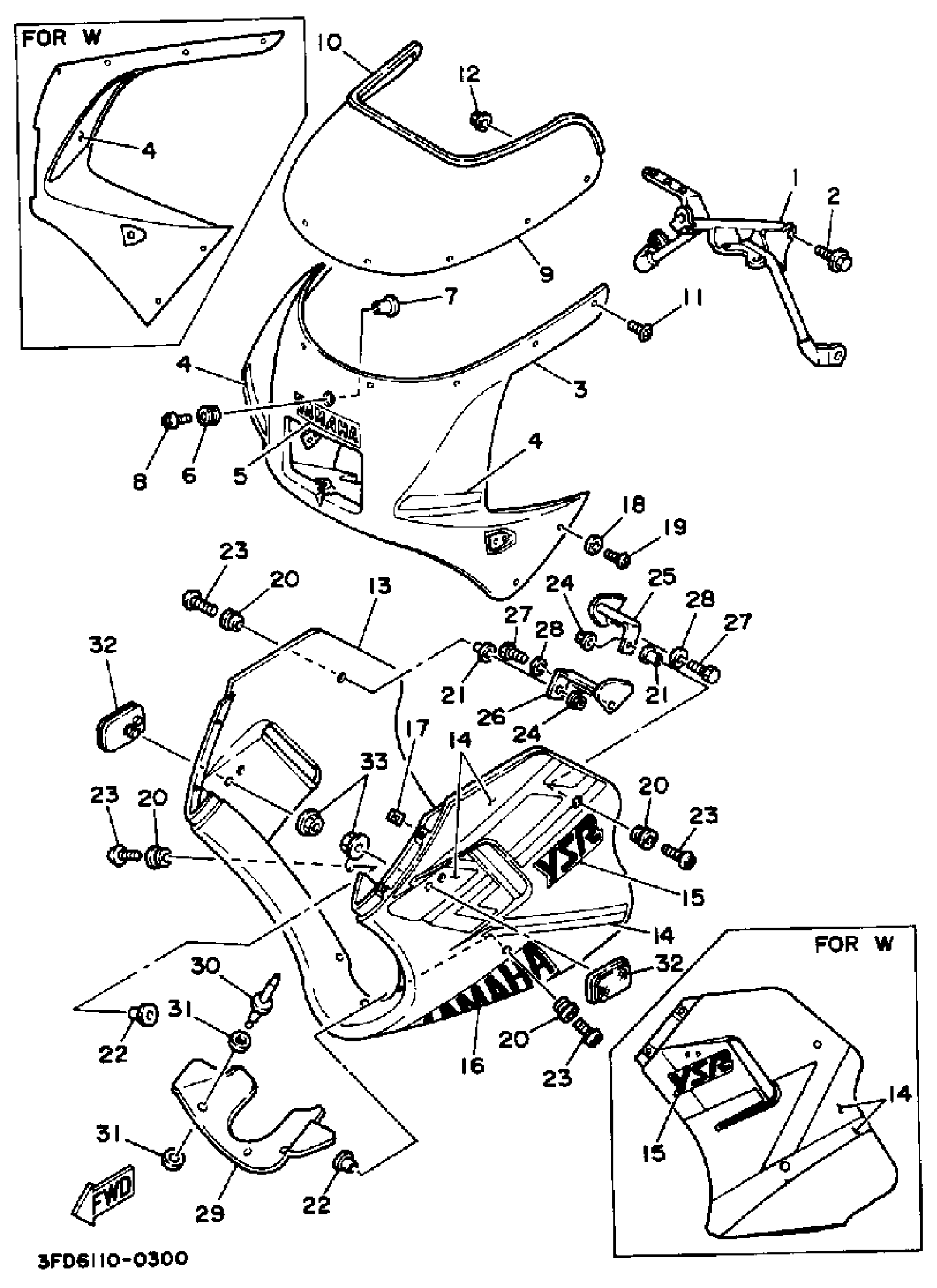

Yamaha YSR50A (YSR50A) 1990 FAIRING-COWLING Diagram
#
1
STAY 1
2RR-28356-00-00
Unavailable
3
BODY, FRONT UPPER 1
2RR-2835G-00-00
Unavailable
3
BODY, FRONT UPPER 1UPPER 1
2RR-2835G-30-7M
Unavailable
4
GRPHC SET, COWLINGCOWLING
3FD-28390-10-00
Unavailable
4
GRAPHIC SET, COWLCOWLING
3FD-28390-20-00
Unavailable
5
EMBLEM, YAMAHA
99243-00080-00
Unavailable
9
SCREEN
2RR-2837U-00-00
Unavailable
10
MOLD 2
2AL-28346-00-00
Unavailable
13
BODY, FRONT LOWER 1 LOWER 1
2RR-2835J-00-00
Unavailable
13
BODY, FRONT LOWER 1
2RR-2835J-30-00
Unavailable
14
GRAHIC SET, LWR CVRCOVER 1
3FD-28301-10-00
Unavailable
14
GRAPHIC SET LO COVCOVER 1
3FD-28301-20-00
Unavailable
15
EMBLEM
3FD-28328-00-00
Unavailable
15
EMBLEM
3FD-28328-20-00
Unavailable
16
EMBLEM, YAMAHA
99246-00200-00
Unavailable
17
NUT, SPRING
90183-051A0-00
Unavailable
18
WASHER PLATE 626441880000
90202-06007-00
Unavailable
19
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
21
COLLAR(1LJ)
90387-067N5-00
Unavailable
22
COLLAR (420)
90387-06241-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(1KF)
90110-06104-00
Unavailable
24
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
25
STAY, GUIDE 1
2AL-2831E-00-00
Unavailable
26
STAY, GUIDE 2
2AL-2831F-00-00
Unavailable
27
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
PANEL, INNER 1
2AL-2836K-00-00
Unavailable
30
RIVET, BLIND
90267-40029-00
Unavailable
31
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
32
FRONT REFLECTOR ASSY
23V-85110-00-00
Unavailable
