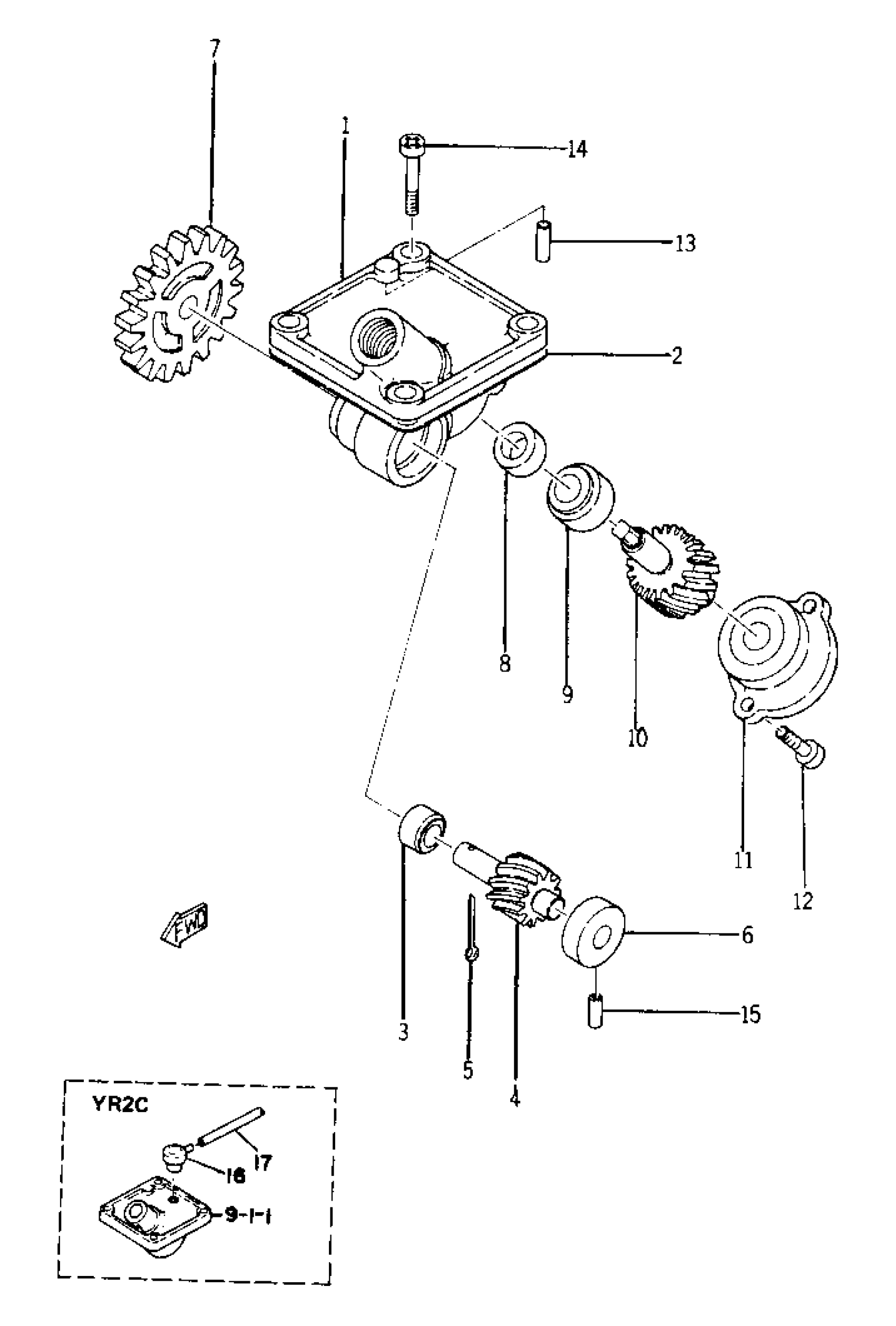

Yamaha YR1 (YR1_2_2C) 1967 TACHOMETER GEAR Diagram

#

Description
Price

1

HOUSING, TACH GEAR

(168-17811-01-00)

Unavailable

1

HOUSING, TACH GEAR

(222-17811-01-00)

Unavailable

1

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

2

GASKET

(168-17818-00-00)

Unavailable

3

BUSH, SOLID

(90380-08003-00)

Unavailable

4

GEAR, DRIVE

(168-17831-00-00)

Unavailable

5

PIN COTTER

91490-30025-00

$3.99

6

BUSH, DR GEAR OUTER

(168-17833-00-00)

Unavailable

7

GEAR, PRIMARY

(168-17851-00-00)

Unavailable

8

OIL SEAL,SDO-TYPE

93109-10023-00

Unavailable

9

BUSH, SOLID

(90380-10008-00)

Unavailable

10

GEAR, DRIVEN

(168-17842-00-00)

Unavailable

11

COVER, HOUSING

(168-17821-00-00)

Unavailable

12

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

13

PIN,DOWEL (137)

93604-14012-00

$1.81

14

SCREW, PAN

98507-06014-00

Unavailable

15

. PIN, SPRING

91609-20008-00

Unavailable

16

BREATHER

583-15371-00-00

Unavailable

17

PIPE, BREATHER

(122-15373-00-00)

Unavailable
