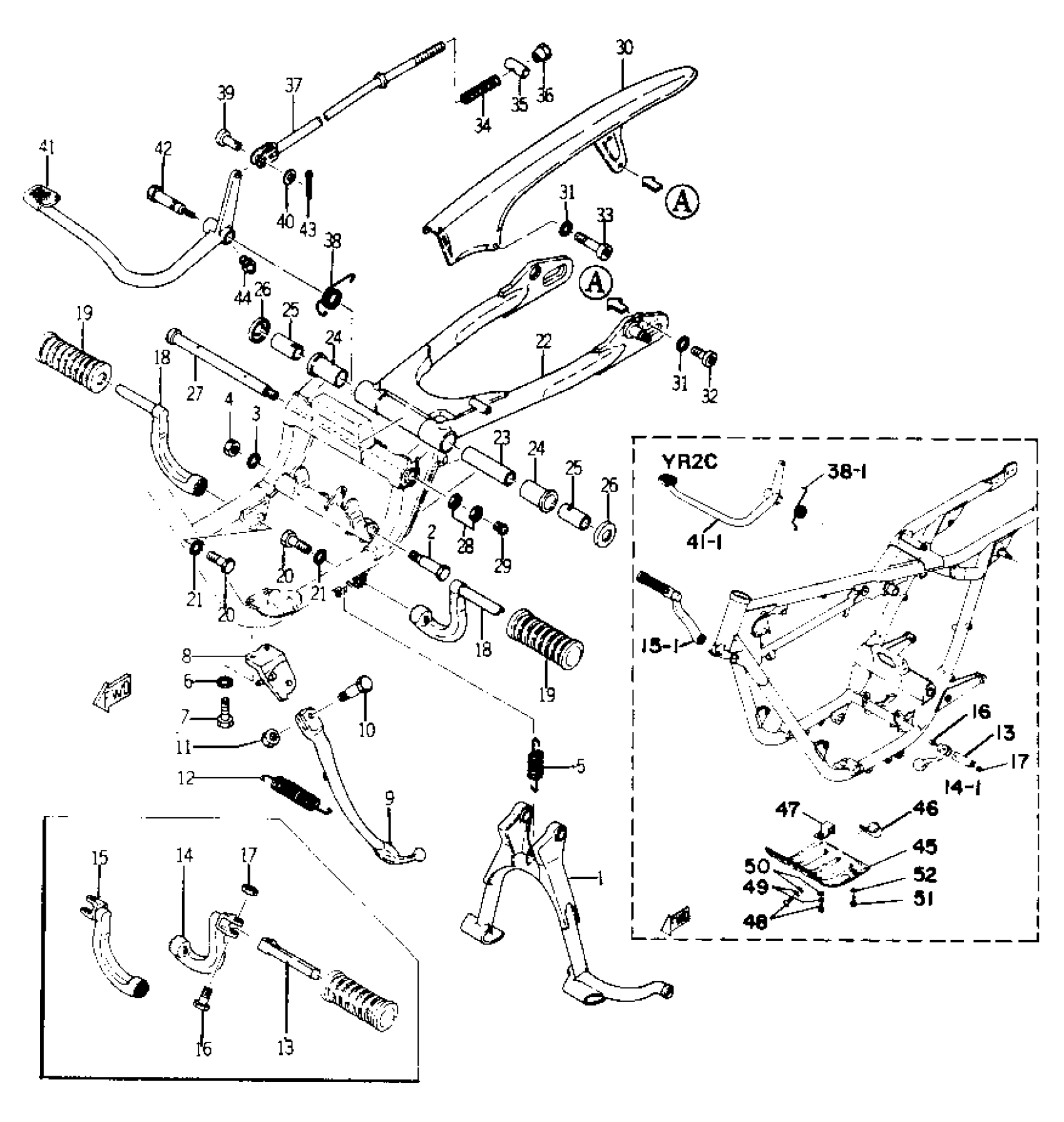

Yamaha YR1 (YR1_2_2C) 1967 REAR ARM - STAND - FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

(168-27111-00-00)

Unavailable

1

PEDAL, BRAKE

(222-27211-00-00)

Unavailable

1

BRACKET, FOOTREST 1

(222-27412-01-33)

Unavailable

1

BRACKET, FOOTREST 2

(222-27422-01-33)

Unavailable

2

BOLT

(90109-10042-00)

Unavailable

3

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

4

NUT(3BM)

95314-10600-00

$2.39

5

SPRING, TENSION

90506-45063-00

Unavailable

6

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

7

BOLT(6TD)

97017-10025-00

$8.49

8

BRACKET, SIDE STAND

(168-27321-00-33)

Unavailable

9

STAND, SIDE

(168-27311-00-00)

Unavailable

10

BOLT

(90109-08403-00)

Unavailable

11

. NUT

95380-08700-00

Unavailable

12

SPRING TENSION 146273160000

90506-29052-00

$11.49

13

FOOTREST 1

(157-27411-00-00)

Unavailable

14

BRACKET, FOOTREST 1

(168-27412-10-00)

Unavailable

15

BRACKET, FOOTREST 2

(168-27422-10-00)

Unavailable

15

BRACKET, FOOTREST 2

(168-27422-11-33)

Unavailable

16

BOLT (157-27416-00)

90109-08376-00

Unavailable

17

. NUT

95380-08700-00

Unavailable

18

FOOTREST 1

(168-27411-01-00)

Unavailable

19

COVER, FOOT REST

156-27413-00-00

Unavailable

20

BOLT,HEXAGON

97321-12040-00

Unavailable

21

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

22

REAR ARM

(168-22110-00-33)

Unavailable

23

COLLAR

90387-16128-00

Unavailable

24

BUSH 1482212300

90386-22018-00

Unavailable

25

COLLAR

90387-16226-00

Unavailable

26

COVER,THRUST 1

1A0-22128-00-00

Unavailable

27

SHAFT, PIVOT

156-22141-00-00

Unavailable

28

NUT,HEXAGON

90170-14147-00

Unavailable

29

NIPPLE, GREASE

93700-06M03-00

Unavailable

30

CASE, CHAIN

(168-22311-00-00)

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

SCREW, PAN

98507-06014-00

Unavailable

33

SCREW PAN HEAD

98580-06545-00

Unavailable

34

SPRING, COMPRESSION (168-27236-00)

90501-10073-00

Unavailable

35

PIN, SPEC''L SHAPE (168-27237-00)

90249-12007-00

Unavailable

36

NUT, SPEC''L SHAPE (168-27238-00)

90179-07031-00

Unavailable

37

ROD, BRAKE

(168-27231-00-00)

Unavailable

38

SPRING, TORSION

(90508-40075-00)

Unavailable

38

SPRING, TORSION

(90508-40076-00)

Unavailable

39

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

40

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

41

PEDAL, BRAKE

(168-27211-01-00)

Unavailable

42

SHAFT, BRAKE PEDAL

(168-27212-00-00)

Unavailable

43

PIN, COTTER

91490-20025-00

Unavailable

44

NIPPLE, GREASE

93700-06M03-00

Unavailable

45

PROTECTOR, ENGINE

(157-21471-00-33)

Unavailable

46

BRACKET, PROTC FRT

(222-21433-00-33)

Unavailable

47

BRACKET, PROTC REAR

(222-21443-00-33)

Unavailable

48

BOLT (661)

97013-06012-00

Unavailable

49

WASHER, SPRING

92995-06100-00

Unavailable

50

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

51

BOLT, HEXAGON

97013-08020-00

Unavailable

52

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
