- YR1 (YR1_2_2C) 1967
KICK - STARTER

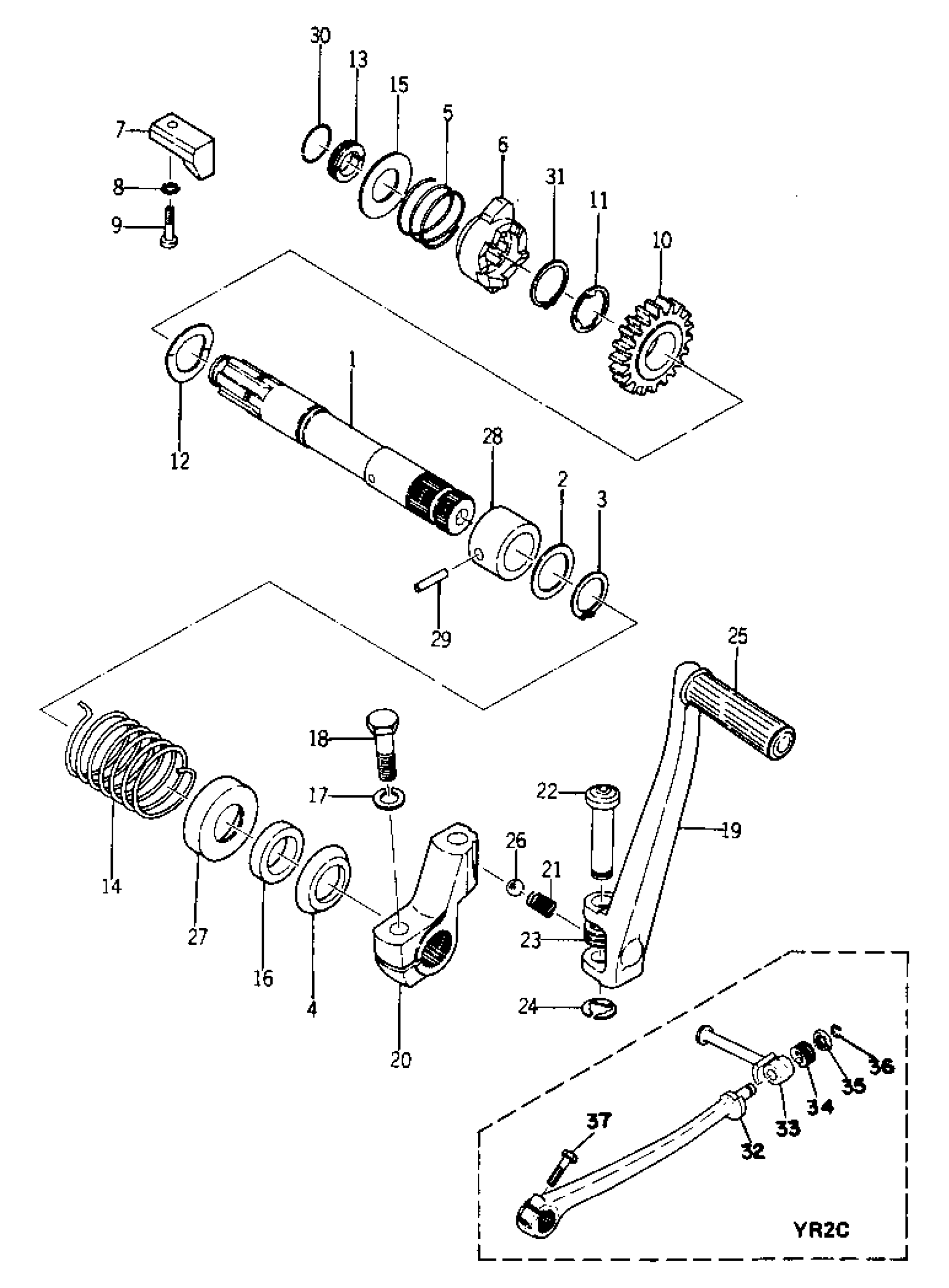

Yamaha YR1 (YR1_2_2C) 1967 KICK - STARTER Diagram
#
1
AXLE, KICK
(168-15661-00-00)
Unavailable
4
SEAL
(168-15663-00-00)
Unavailable
5
SPRING COMPRESSION168156750000
90501-16107-00
Unavailable
6
WHEEL, RATCHET
(168-15671-00-00)
Unavailable
7
GUIDE, RATCHET WHL
(168-15674-03-00)
Unavailable
8
PLT, RCHET WHL GDE
(168-15655-00-00)
Unavailable
8
WASHER, TOOTH
92901-06400-00
Unavailable
9
BOLT, STUD
(90116-06180-00)
Unavailable
10
GEAR, KICK
(168-15641-00-00)
Unavailable
11
WASHER, CLAW (168-15653-00)
90214-16009-00
Unavailable
12
WASHER, WAVE
(90206-20047-00)
Unavailable
13
HOLDER, KICK GEAR
137-15654-00-00
Unavailable
14
SPRING, TORSION
(90508-32058-00)
Unavailable
15
WASHER, PLAIN (1JL)
90201-155K6-00
Unavailable
16
OIL SEAL (20X30X6-648)
93101-20048-00
Unavailable
17
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
18
BOLT, HEXAGON
97013-08030-00
Unavailable
19
CRANK, KICK
(170-15611-00-00)
Unavailable
20
KICK CRANK ASSEMBLY (168-15621-01)
2G2-15620-00-00
Unavailable
21
SPRING, COMPRESSION
(90501-15091-00)
Unavailable
22
PIN, KICK CRANK
(168-15624-00-00)
Unavailable
23
SPRING,KICK CRANK
214-15625-00-00
Unavailable
24
UNAVAILABLE IN PRICE BOOK (E-8)
90430-08006-00
Unavailable
25
COVER, KICK LEVER
156-15618-01-00
Unavailable
26
BALL
93505-16006-00
Unavailable
27
GUIDE, SPRING
(168-15664-00-00)
Unavailable
28
BUSH, KICK AXLE
(168-15682-00-00)
Unavailable
29
PIN, DOWEL (168)
93606-20044-00
Unavailable
30
CLIP
(168-15673-00-00)
Unavailable
31
CIRCLIP (525)
93410-20038-00
Unavailable
32
KICK CRANK ASSEMBLY
(137-15610-02-93)
Unavailable
33
LEVER, KICK
(214-15612-09-00)
Unavailable
34
SPRING, COMPRESSION (5L1)
90504-18031-00
Unavailable
35
WASHER,SPEC'L SHAPE
90209-10210-00
Unavailable
36
. CIRCLIP, OUTER
93440-10028-00
Unavailable
37
BOLT, HEXAGON
97017-06025-00
Unavailable
