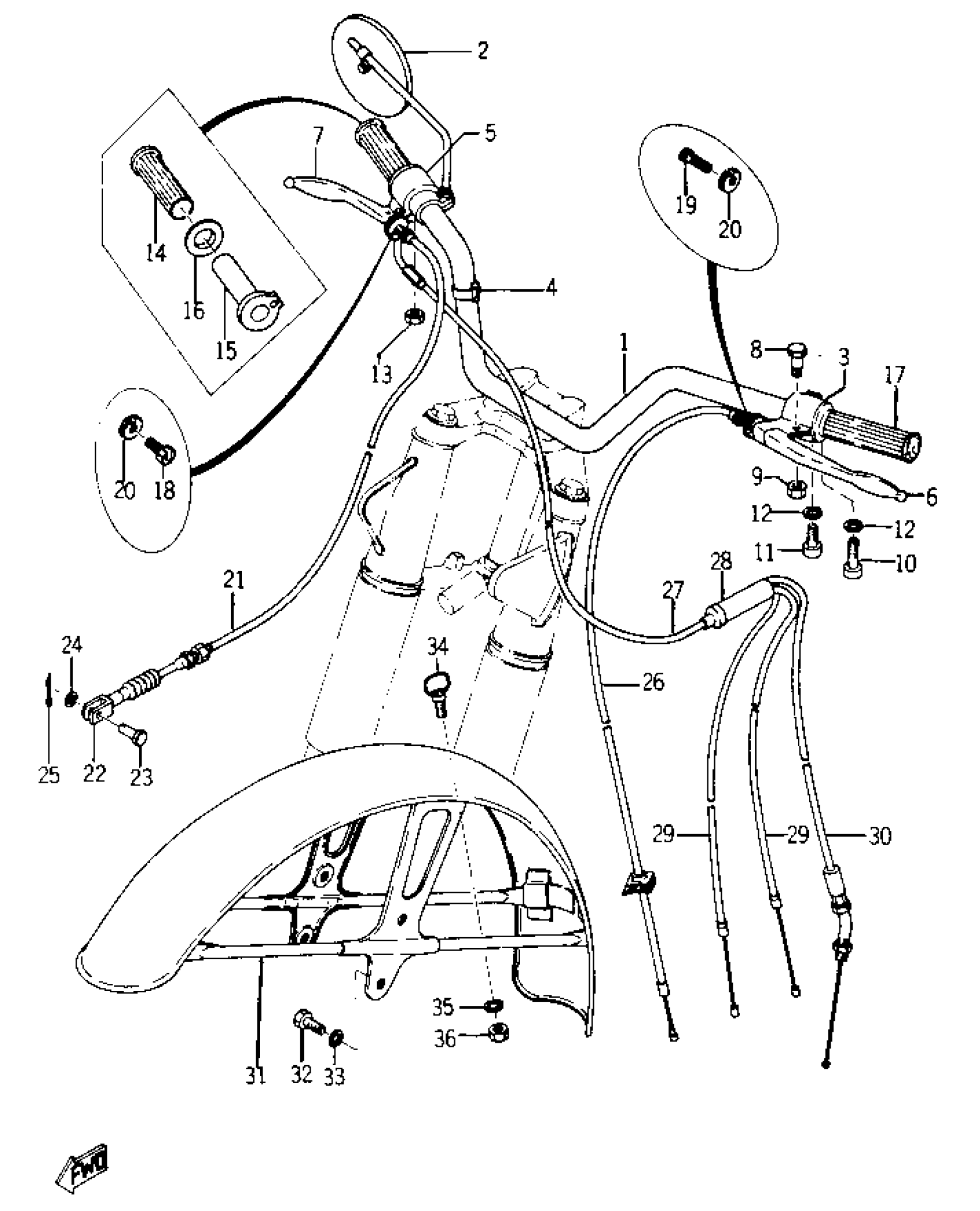

Yamaha YR1 (YR1_2_2C) 1967 HANDLE WIRE - FRONT FENDER Diagram

#

Description

Price

1

HANDLEBAR

(156-26111-00-00)

Unavailable

1

HANDLEBAR

(156-26111-10-00)

Unavailable

1

HANDLEBAR

(222-26111-00-00)

Unavailable

2

MIRROR ASY

253-26290-00-00

Unavailable

3

LEVER HOLDER ASSEMBLY 1

(168-82910-09-00)

Unavailable

4

BAND, SWITCH CORD

437-83936-01-00

$7.99

5

LEVER HOLDER ASSEMBLY 2

(156-82820-10-94)

Unavailable

6

LEVER L

150-83912-00-38

Unavailable

7

LEVER R

(218-83922-30-38)

Unavailable

8

BOLT

(90109-06333-00)

Unavailable

9

NUT(650)

95380-06700-00

$8.49

10

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

10

SCREW, PAN HEAD

98580-05020-00

Unavailable

11

SCREW, PAN HEAD

(92503-05025-00)

Unavailable

11

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

12

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

13

NUT, HEXAGON

90170-10038-00

Unavailable

14

GRIP RH

(156-26242-00-00)

Unavailable

15

TUBE, GUIDE

1V1-26243-00-00

Unavailable

16

RING, LEAF

150-26249-00-00

Unavailable

17

GRIP (LH)

156-26241-00-00

Unavailable

18

BOLT

90123-08002-00

Unavailable

19

BOLT

90123-08002-00

Unavailable

20

NUT

90179-08030-00

Unavailable

21

CABLE, BRAKE

(174-26341-10-00)

Unavailable

21

CABLE, BRAKE

(174-26341-10-00)

Unavailable

21

CABLE, BRAKE

(246-26341-10-00)

Unavailable

22

JOINT, WIRE

156-26347-00-00

Unavailable

23

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

24

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

CABLE, CLUTCH

(168-26335-00-00)

Unavailable

26

CABLE, CLUTCH

(168-26335-10-00)

Unavailable

26

CABLE, CLUTCH

(222-26335-00-00)

Unavailable

27

WIRE, THROTTLE 1

156-26311-00-00

Unavailable

27

CABLE, THROTTLE 1

168-26311-10-00

Unavailable

28

CYLINDER, WIRE

156-26261-01-00

Unavailable

29

CABLE, THROTTLE 2

(168-26312-01-00)

Unavailable

30

CABLE, PUMP

(168-26321-00-00)

Unavailable

30

CABLE, PUMP

(236-26321-00-00)

Unavailable

31

FENDER, FRONT

(235-21510-00-00)

Unavailable

32

BOLT(62E)

97013-08012-00

Unavailable

33

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

34

HOLDER, CABLE

(152-21518-00-00)

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

NUT, HEXAGON

95380-06600-00

Unavailable
