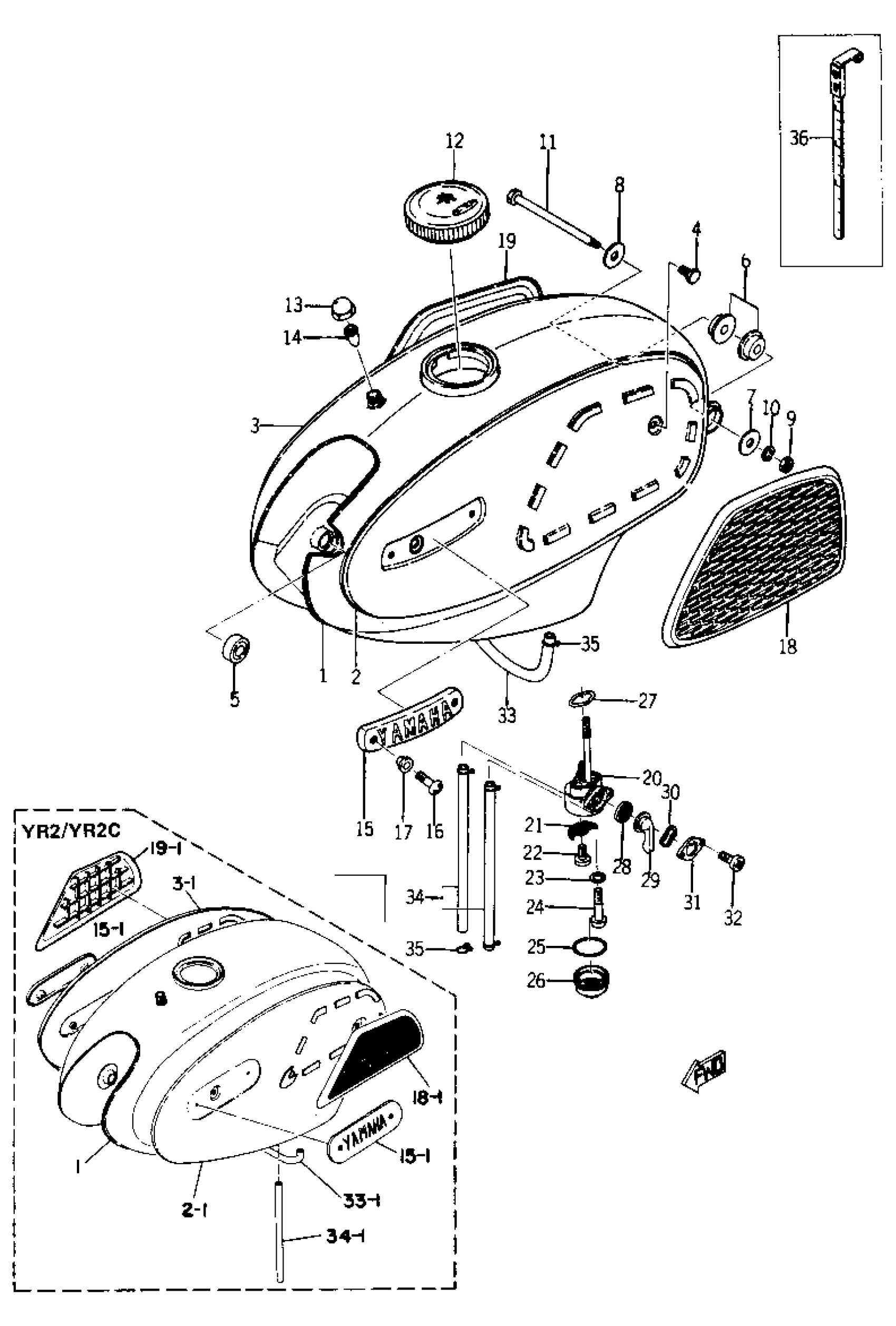

Yamaha YR1 (YR1_2_2C) 1967 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(168-24110-00-81)

Unavailable

1

FUEL TANK

(211-24110-00-33)

Unavailable

1

FUEL TANK

(211-24110-00-63)

Unavailable

1

COVER, SIDE 1

(211-24129-01-46)

Unavailable

1

COVER, SIDE 2

(211-24139-01-46)

Unavailable

1

EMBLEM 1

211-24161-00-00

Unavailable

1

SCREW, PAN HEAD

98511-04012-00

Unavailable

1

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

1

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

2

COVER, SIDE 1

(168-24129-01-93)

Unavailable

3

COVER, SIDE 2

(168-24139-01-93)

Unavailable

4

BOLT (11T)

90101-06576-00

$8.49

5

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

6

DAMPER, LOCATING 2

(156-24182-01-00)

Unavailable

7

WASHER, PLATE

90201-06086-00

$7.49

8

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

BOLT

(90109-06026-00)

Unavailable

12

CAP ASSY

7V5-24610-01-00

Unavailable

13

NUT, CAP

(168-24681-00-00)

Unavailable

14

VALVE

(150-24682-00-00)

Unavailable

15

EMBLEM 1

(168-24161-00-00)

Unavailable

16

SCREW, PAN HEAD

(92503-04012-00)

Unavailable

17

WASHER, PLATE

(90202-03002-00)

Unavailable

18

GRIP, KNEE 1

(168-24171-00-00)

Unavailable

18

GRIP, KNEE 1

(211-24171-00-00)

Unavailable

19

GRIP, KNEE 2

(168-24172-00-00)

Unavailable

19

GRIP, KNEE 2

(211-24172-00-00)

Unavailable

20

FUEL COCK ASSEMBLY 1

360-24500-00-00

Unavailable

20

FUEL COCK ASSEMBLY 1

360-24500-00-00

Unavailable

21

. NET, FILTER 2

168-24515-00-00

Unavailable

22

. SCREW

92503-03006-00

Unavailable

23

GASKET(J17)

90430-06218-00

Unavailable

24

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

25

. GASKET

168-24522-00-00

Unavailable

26

. CUP, FILTER

360-24521-00-00

Unavailable

27

GASKET, BODY

168-24512-00-00

Unavailable

28

VALVE

137-24523-00-00

Unavailable

29

. LEVER, COCK

168-24524-00-00

Unavailable

30

WASHER, WAVE

132-24518-00-00

Unavailable

31

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

32

. SCREW

92503-03006-00

Unavailable

33

PIPE, FUEL 1

(168-24311-00-00)

Unavailable

33

HOSE (L420)

90445-092K1-00

Unavailable

34

HOSE (L420)

90445-092K1-00

Unavailable

34

HOSE (L420)

90445-092K1-00

Unavailable

35

CLIP 101235600

90467-08003-00

Unavailable

36

GAUGE, FUEL

(168-24179-60-00)

Unavailable
