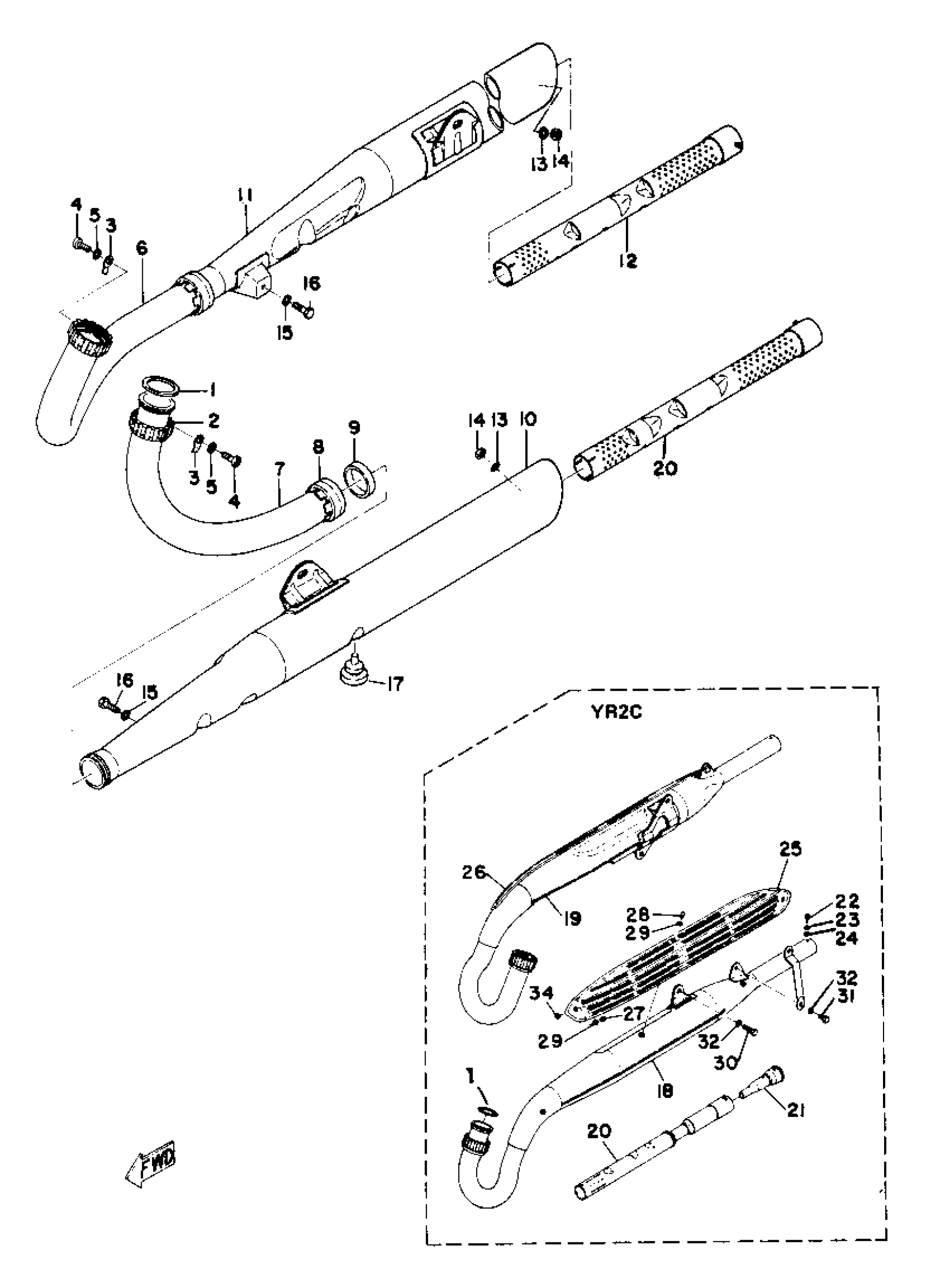

Yamaha YR1 (YR1_2_2C) 1967 EXHAUST Diagram
#
1
GASKET, EXST PIPE
168-14613-00-00
Unavailable
2
NUT, RING
(168-14612-00-00)
Unavailable
3
PLATE
(168-14685-00-00)
Unavailable
5
WASHER, SPRING
92995-06100-00
Unavailable
6
PIPE, EXHAUST R
(168-14621-00-00)
Unavailable
7
PIPE, EXHAUST L
(168-14611-00-00)
Unavailable
8
NUT, MUFFLER JOINT
(168-14713-00-00)
Unavailable
9
GASKET (168-14714-00)
90430-42088-00
Unavailable
10
MUFFLER ASSEMBLY L
(168-14710-01-00)
Unavailable
11
MUFFLER ASSEMBLY R
(168-14720-02-00)
Unavailable
12
SILENCER, EXHAUST
(168-14753-01-00)
Unavailable
15
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
16
BOLT, HEXAGON
97013-08020-00
Unavailable
17
STOPPER MAIN STAND
278-27114-00-00
Unavailable
18
EXHAUST PIPE ASSEMBLY L
(222-14610-31-00)
Unavailable
19
EXHAUST PIPE ASSEMBLY R
(222-14620-31-00)
Unavailable
20
SILENCER, EXHAUST
(222-14753-30-00)
Unavailable
21
. UNAVAILABLE IN PRICE BOOK
178-14752-30-00
Unavailable
22
BOLT(3JP)
97017-06010-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
25
PROTECTOR, MUFF 1
(222-14718-30-00)
Unavailable
26
PROTECTER, MUFF 2
(222-14728-30-00)
Unavailable
27
SCREW, BIND(2TV)
98980-06008-00
Unavailable
28
SCREW, BIND(1JK)
98980-06010-00
Unavailable
29
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
30
BOLT, HEXAGON
97013-08020-00
Unavailable
31
BOLT, HEXAGON
97013-08016-00
Unavailable
32
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
33
STAY, MUFFLER 1
(222-14771-30-00)
Unavailable
34
WASHER, PLATE(3MT)
90202-05188-00
Unavailable
