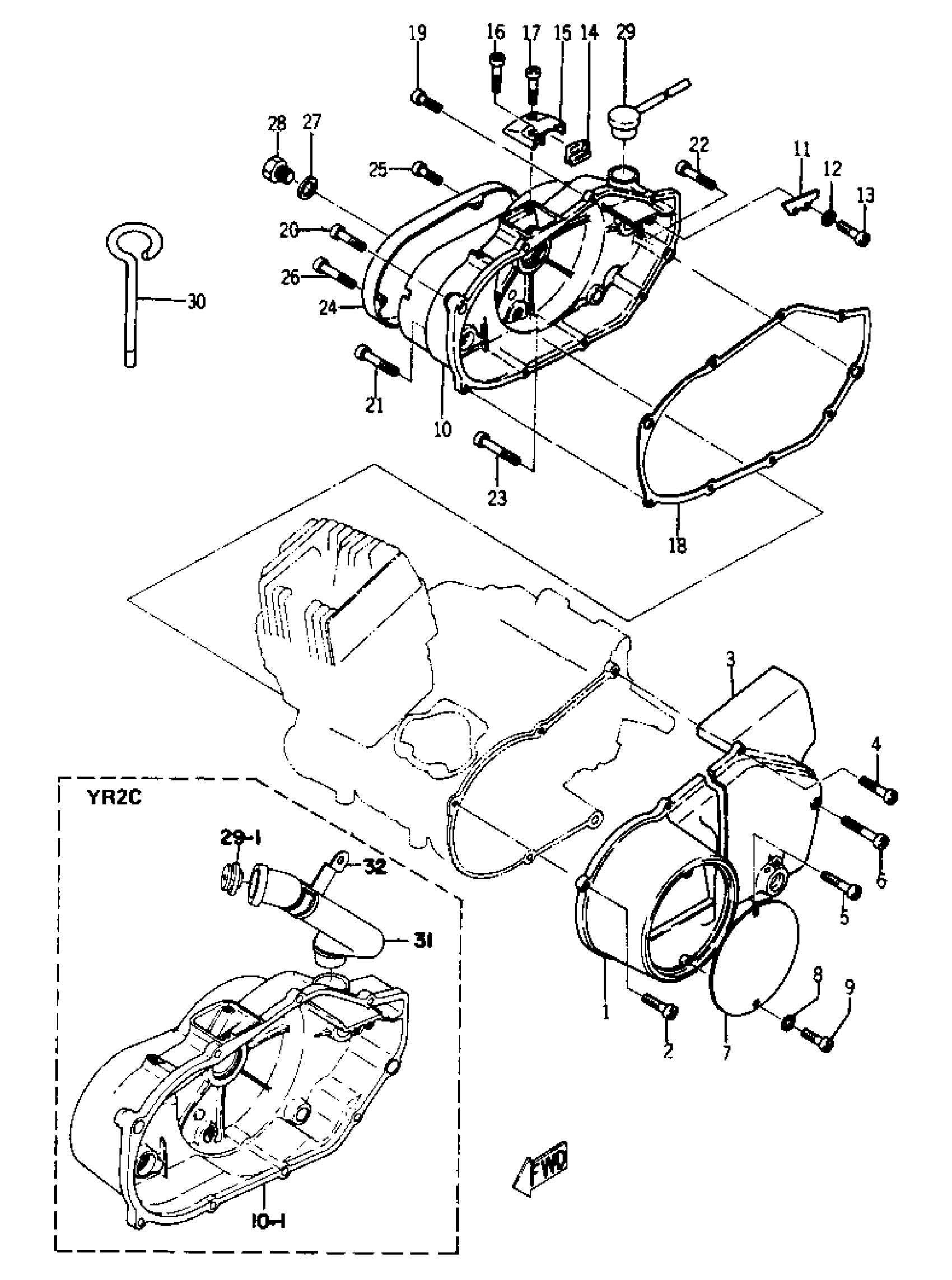

Yamaha YR1 (YR1_2_2C) 1967 CRANKCASE COVER Diagram

#

Description
Price

1

BREATHER

(204-15371-00-00)

Unavailable

1

UNAVAILABLE IN PRICE BOOK (L.H.) (168-15421-01-00)

235-15421-01-00

Unavailable

1

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

1

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

1

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

1

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

COVER, CRANKCASE 3

(168-15431-00-00)

Unavailable

4

SCREW PAN HEAD

98580-06040-00

$8.49

5

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

6

SCREW PAN HEAD

98580-06020-00

$8.49

7

COVER,GENERATOR

372-15415-00-00

Unavailable

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

SCREW,PAN HEAD

92503-04015-00

Unavailable

10

COVER, CRANKCASE L

(235-15411-00-00)

Unavailable

11

COVER

(168-15492-00-00)

Unavailable

12

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

13

SCREW

92503-05008-00

Unavailable

14

SEAL, PROTECTOR

(168-15494-00-00)

Unavailable

15

PROTECTOR

(168-15491-00-00)

Unavailable

16

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

17

SCREW, PAN HEAD

(92503-05012-00)

Unavailable

18

GASKET, CRCS COVERCOVER

168-15451-00-00

Unavailable

19

SCREW PAN HEAD

98580-06020-00

$8.49

20

SCREW PAN HEAD

98580-06545-00

Unavailable

21

SCREW PAN HEAD

98580-06550-00

Unavailable

22

SCREW PAN HEAD

98580-06565-00

Unavailable

23

SCREW, PAN HEAD

98580-06580-00

Unavailable

24

COVER, OIL PUMP

(168-15416-00-00)

Unavailable

25

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

26

SCREW PAN HEAD

98580-06550-00

Unavailable

27

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

28

PLUG, STRAIGHT SCREW

90340-14119-00

Unavailable

29

PLUG, OIL

(168-15363-00-00)

Unavailable

30

GAUGE, LEVEL

(168-15361-00-00)

Unavailable

31

GUIDE, INLET

(222-15377-00-00)

Unavailable

32

HOLDER, GUIDE

(222-15376-00-00)

Unavailable
