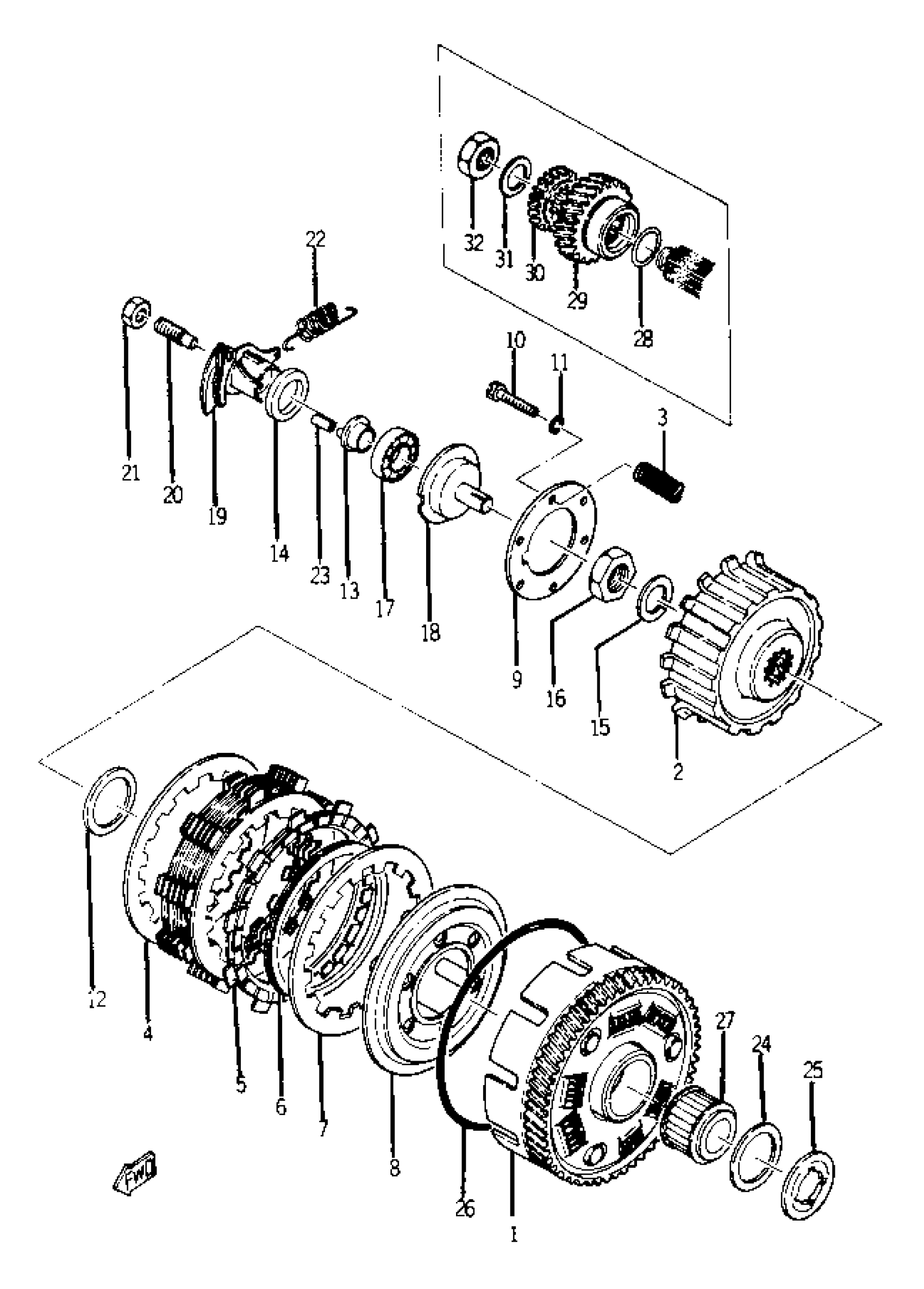

Yamaha YR1 (YR1_2_2C) 1967 CLUTCH Diagram
#
1
PRI DRVN GEAR
(168-16105-01-00)
Unavailable
1
CLUTCH ASSEMBLY
(168-16301-02-00)
Unavailable
1
SCREW, HEXAGON
(90153-05012-00)
Unavailable
2
. UNAVAILABLE IN PRICE BOOK
[16-81637-10-00
Unavailable
2
BOSS, CLUTCH
(168-16371-00-00)
Unavailable
3
SPRING COMPRESSION168163330000
90501-23138-00
Unavailable
4
PLATE, CLUTCH 1
168-16324-10-00
Unavailable
6
. RING, CUSHION
168-16367-00-00
Unavailable
8
PLATE, PRESSURE 1
(168-16351-91-00)
Unavailable
9
PLATE, PRESSURE 2
(168-16352-00-00)
Unavailable
10
SCREW, SPRING
(168-16337-00-00)
Unavailable
13
PLUG, PUSH
(168-16349-00-00)
Unavailable
14
OIL SEAL
93101-25030-00
Unavailable
15
SPRING
214-16119-00-00
Unavailable
15
WASHER(N15)
92907-18100-00
Unavailable
16
NUT
90170-18089-00
Unavailable
17
BEARING, CYLINDER.#16
(93316-00301-00)
Unavailable
18
CROWN, PUSH
(168-16348-00-00)
Unavailable
19
PUSH LEVER ASSEMBLY
(168-16340-00-00)
Unavailable
20
BOLT, SET
(90113-08025-00)
Unavailable
21
. NUT
95380-08700-00
Unavailable
22
SPRING, TENSION
90506-10023-00
Unavailable
23
PIN, SPRING
91690-30014-00
Unavailable
24
BEARING, FLAT #41
93341-23504-00
Unavailable
25
PLATE, THRUST 1
(168-16154-00-00)
Unavailable
25
PLATE, THRUST 1
(168-16154-02-00)
Unavailable
26
O-RING
(93211-10097-00)
Unavailable
27
SPACER 1
(170-16181-00-00)
Unavailable
27
BEARING, CYLINDER.#18
(93318-32501-00)
Unavailable
28
O-RING (437)
93210-24235-00
Unavailable
29
GEAR, PRI DRIVE
(168-16111-00-00)
Unavailable
30
GEAR, DRIVE
(168-13188-00-00)
Unavailable
31
WASHER(JN5)
92907-16100-00
Unavailable
32
NUT
90170-16425-00
Unavailable
