CARBURETOR

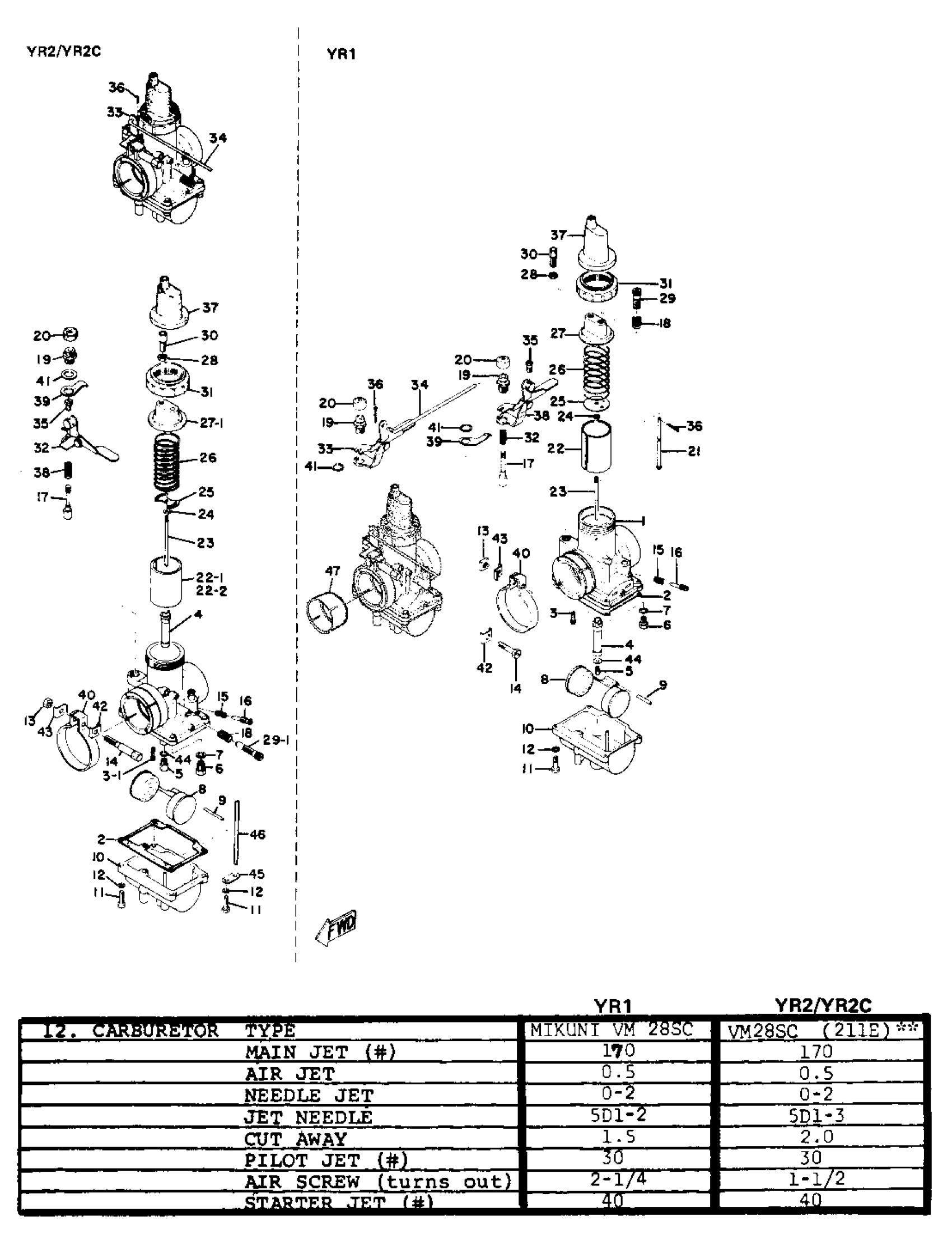

Yamaha YR1 (YR1_2_2C) 1967 CARBURETOR Diagram
#
1
SCREW, ROD
(193-14486-00-00)
Unavailable
1
CARBURETOR ASSEMBLY 1
(211-14101-61-00)
Unavailable
2
CARBURETOR ASSEMBLY 2
(211-14102-61-00)
Unavailable
3
JET, PILOT #30
(127-14142-30-00)
Unavailable
3
JET, PIL0T (# 30)
193-14142-30-A0
Unavailable
4
NOZZLE, MAIN
(168-14141-32-00)
Unavailable
5
JET, MAIN #180
137-14143-36-A1
Unavailable
5
JET,MAIN #190
137-14143-38-A0
Unavailable
5
JET, MAIN #210
137-14143-42-A1
Unavailable
6
. NEEDLE VALVE ASSEMBLY
137-14190-20-00
Unavailable
8
FLOAT
(168-14185-00-00)
Unavailable
9
PIN, FLOAT
127-14186-00-00
Unavailable
10
BODY, FLOAT CHMBR 1
(168-14181-00-00)
Unavailable
11
SCREW,PAN HEAD
92503-04015-00
Unavailable
11
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
12
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
13
NUT, HOLDING
(168-14164-00-00)
Unavailable
14
SCREW, BODY FITTING
(168-14125-02-00)
Unavailable
15
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
16
AIR SCREW SET
23X-14104-00-00
Unavailable
17
PLUNGER, STARTER
132-14171-00-00
Unavailable
18
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
19
CAP, PLUNGER
(132-14174-00-00)
Unavailable
20
COVER, PLUNGER CAP
132-14173-00-00
Unavailable
21
BAR, THROTTLE
(168-14114-00-00)
Unavailable
22
VALVE, THROTTLE 1
(168-14112-15-00)
Unavailable
22
VALVE, THROTTLE 1
(211-14112-20-00)
Unavailable
22
VALVE, THROTTLE 2
(211-14113-20-00)
Unavailable
23
. NEEDLE
168-14116-01-00
Unavailable
24
CLIP
3FA-14137-00-00
Unavailable
25
SEAT, SPRING
(168-14136-00-00)
Unavailable
26
SPRING, THRTL VALVE
(168-14131-00-00)
Unavailable
27
TOP, MIXING CHAMBER
(168-14158-00-00)
Unavailable
27
TOP, MIXING CHAMBER
(211-14158-00-00)
Unavailable
28
NUT, WIRE ADJUSTING
127-14161-00-00
Unavailable
29
SCREW, THRTL STOP
(127-14121-00-00)
Unavailable
29
THROTTLE SCREW SET
40T-14103-00-00
Unavailable
30
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
31
CAP, MIXING CHAMBER
(168-14168-01-00)
Unavailable
32
LEVER, STARTER 1
(168-14175-01-00)
Unavailable
33
LEVER, STARTER 2
(168-14176-00-00)
Unavailable
34
ROD, STARTER LEVER
(170-14177-00-00)
Unavailable
35
SCREW, ROD
(132-14486-00-00)
Unavailable
36
. PIN, COTTER
91401-10015-00
Unavailable
36
. PIN, COTTER
91490-12012-00
Unavailable
37
CAP
(156-14169-00-00)
Unavailable
38
SPRING, PLUNGER
156-14135-00-00
Unavailable
39
. PLATE, STARTER LEVER
(170-14178-00-00)
Unavailable
40
CLIP
(168-14127-00-00)
Unavailable
41
WASHER, STARTER LVR
(132-14179-00-00)
Unavailable
42
WASHER
(168-14128-00-00)
Unavailable
43
WASHER
(168-14129-00-00)
Unavailable
44
WASHER,MAIN JET
137-14153-00-00
Unavailable
45
PLATE
132-14146-00-00
Unavailable
46
PIPE, AIR VENT
183-14197-01-00
Unavailable
47
INSULATOR
169-14156-00-00
Unavailable
