1967 Yamaha YM2C (YM2C) Tank Diagram

← All diagrams

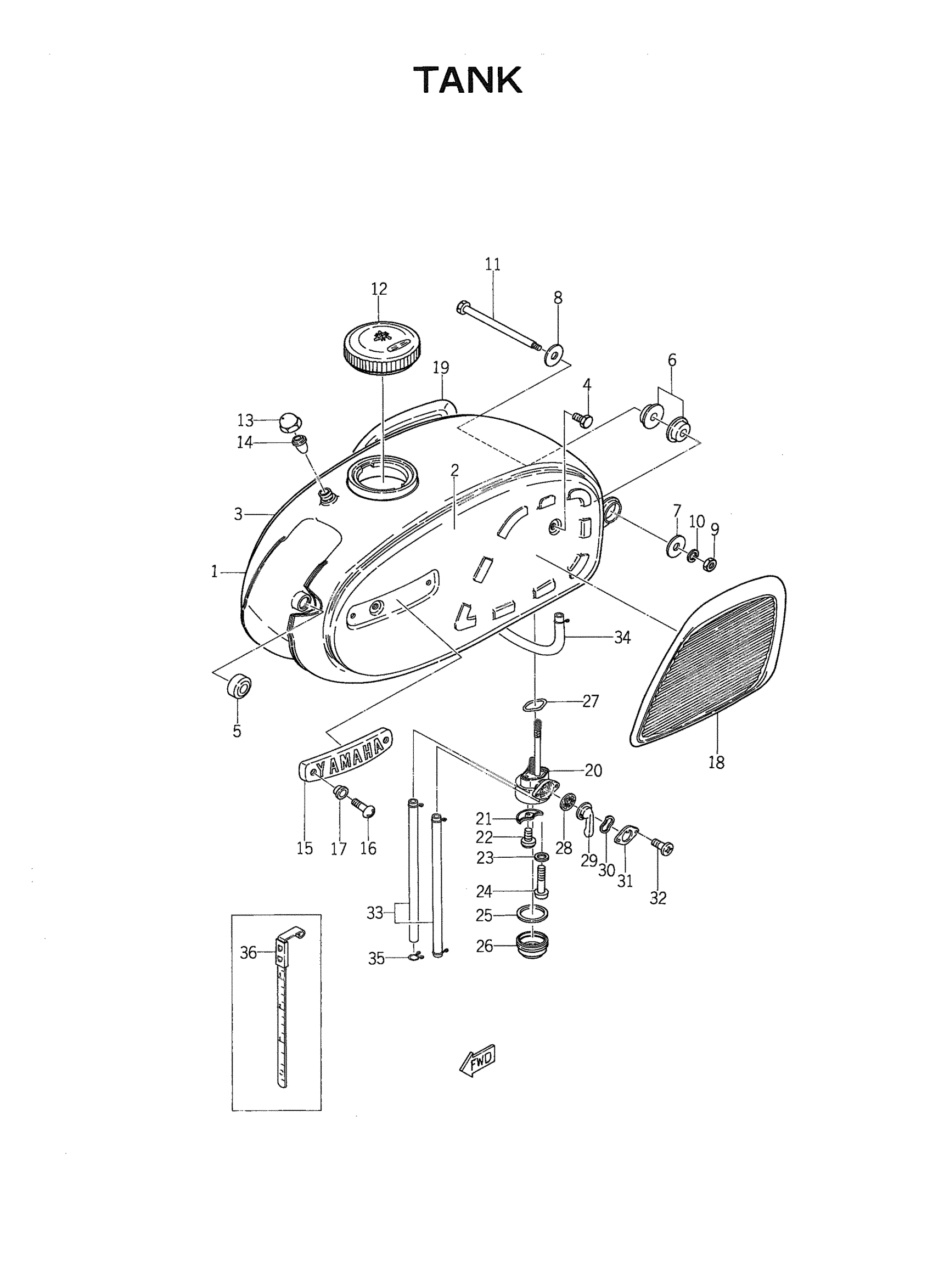

Find the part on the Tank diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha YM2C (YM2C) Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

170-24110-00-81

1
Out of stock

2

COVER, SIDE 1

169-24129-00-93

1
Out of stock

3

COVER, SIDE 2

169-24139-00-93

1
Out of stock

4

BOLT (11T)

90101-06576-00

1

$6.46

In stock

4

BOLT,HEXAGON

97017-06008-00

1
Out of stock

5

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

6

DAMPER, LOCATING 2

156-24182-01-00

1
Out of stock

7

WASHER, PLATE

90201-06086-00

1
Out of stock

8

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

BOLT

90109-06026-00

1
Out of stock

12

CAP ASSY

7V5-24610-01-00

1

$42.77

In stock

13

NUT,CAP

168-24681-00-00

1
Out of stock

14

VALVE

150-24682-00-00

1
Out of stock

15

EMBLEM 1

168-24161-00-00

1
Out of stock

16

SCREW,PAN HEAD

92503-04012-00

1
Out of stock

16

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

17

WASHER,PLATE

90202-03002-00

1
Out of stock

18

GRIP, KNEE 1

170-24171-00-00

1
Out of stock

19

GRIP, KNEE 2

170-24172-00-00

1
Out of stock

20

FUEL COCK ASSEMBLY 1

360-24500-00-00

1
Out of stock

21

. NET, FILTER 2

168-24515-00-00

1
Out of stock

22

. SCREW

92503-03006-00

1
Out of stock

22

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

23

GASKET(J17)

90430-06218-00

—

$2.68

In stock

24

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

25

. GASKET

168-24522-00-00

1
Out of stock

26

. CUP, FILTER

360-24521-00-00

1
Out of stock

27

GASKET, BODY

168-24512-00-00

—

$12.27

In stock

28

VALVE

137-24523-00-00

—

$6.57

In stock

29

. LEVER, COCK

168-24524-00-00

1
Out of stock

30

WASHER, WAVE

132-24518-00-00

—
Out of stock

31

PLATE, LEVER FITTING

132-24525-01-00

1
Out of stock

32

. SCREW

92503-03006-00

1
Out of stock

32

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

33

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

34

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

35

CLIP 101235600

90467-08003-00

—

$6.13

In stock

36

GAUGE, FUEL

170-24179-10-00

1
Out of stock
