1967 Yamaha YM2C (YM2C) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

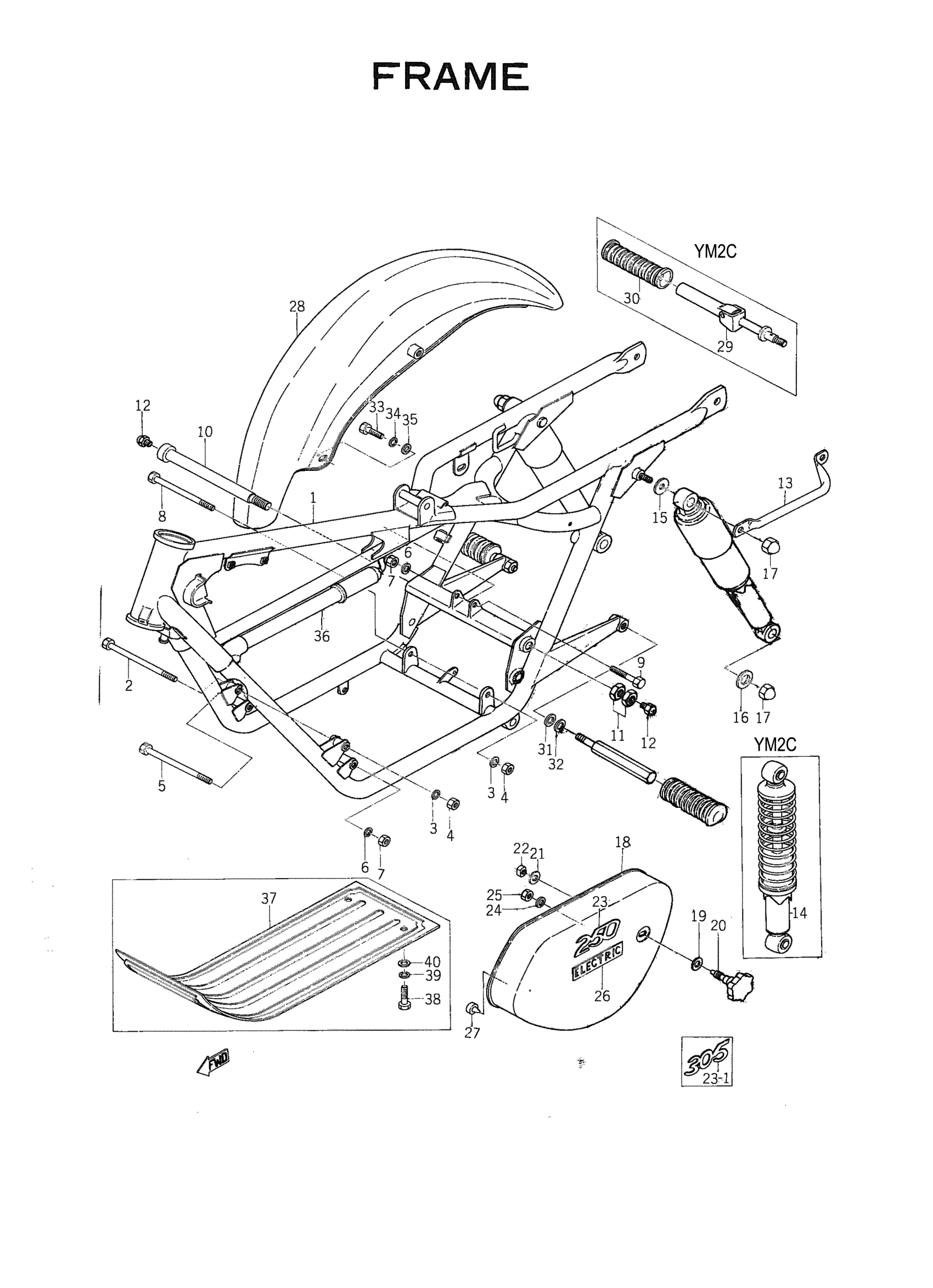

1967 Yamaha YM2C (YM2C) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

172-21110-02-00

1
Out of stock

2

BOLT

90101-10085-00

1
Out of stock

3

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

4

NUT(3BM)

95314-10600-00

1

$1.74

In stock

5

BOLT, WASHER BASED

90105-08034-00

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

BOLT, WASHER BASED

90105-10227-00

1
Out of stock

9

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

10

SHAFT, PIVOT

156-22141-00-00

1
Out of stock

11

NUT,HEXAGON

90170-14147-00

1
Out of stock

12

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

13

HANDLE, STANDING

168-21165-00-00

1
Out of stock

14

SHK/ABS ASSEMBLY, REAR

157-22210-20-00

1
Out of stock

15

WASHER, PLATE (3X3)

90201-15797-00

1

$6.29

In stock

16

WASHER, PLATE(3BM)

90201-105R9-00

—
Out of stock

17

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

18

COVER, SIDE 1

170-21711-00-29

1
Out of stock

19

WASHER, SPECIAL 1

136-21715-00-00

1
Out of stock

20

KNOB, SIDE COVER 1

156-21714-00-00

1
Out of stock

21

CLAMP, DAMPER

156-21729-00-00

1
Out of stock

22

NUT(650)

95380-06700-00

—

$6.17

In stock

23

EMBLEM 6

171-21786-00-00

1
Out of stock

24

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

25

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

26

EMBLEM 7

176-21787-00-00

1
Out of stock

27

DAMPER, SIDE COVER

141-21717-00-00

—

$6.48

In stock

28

FENDER, REAR

172-21610-00-00

1
Out of stock

29

RR FOOTREST ASSEMBLY 1

172-27430-00-00

1
Out of stock

30

COVER, RR FOOTREST

157-27433-00-00

1
Out of stock

31

—

$3.00

In stock

32

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

33

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

34

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

35

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

36

PUMP,AIR

150-28181-00-00

1
Out of stock

37

PROTECTOR,ENGINE

157-21471-00-33

1
Out of stock

38

BOLT (661)

97013-06012-00

—

$4.71

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
