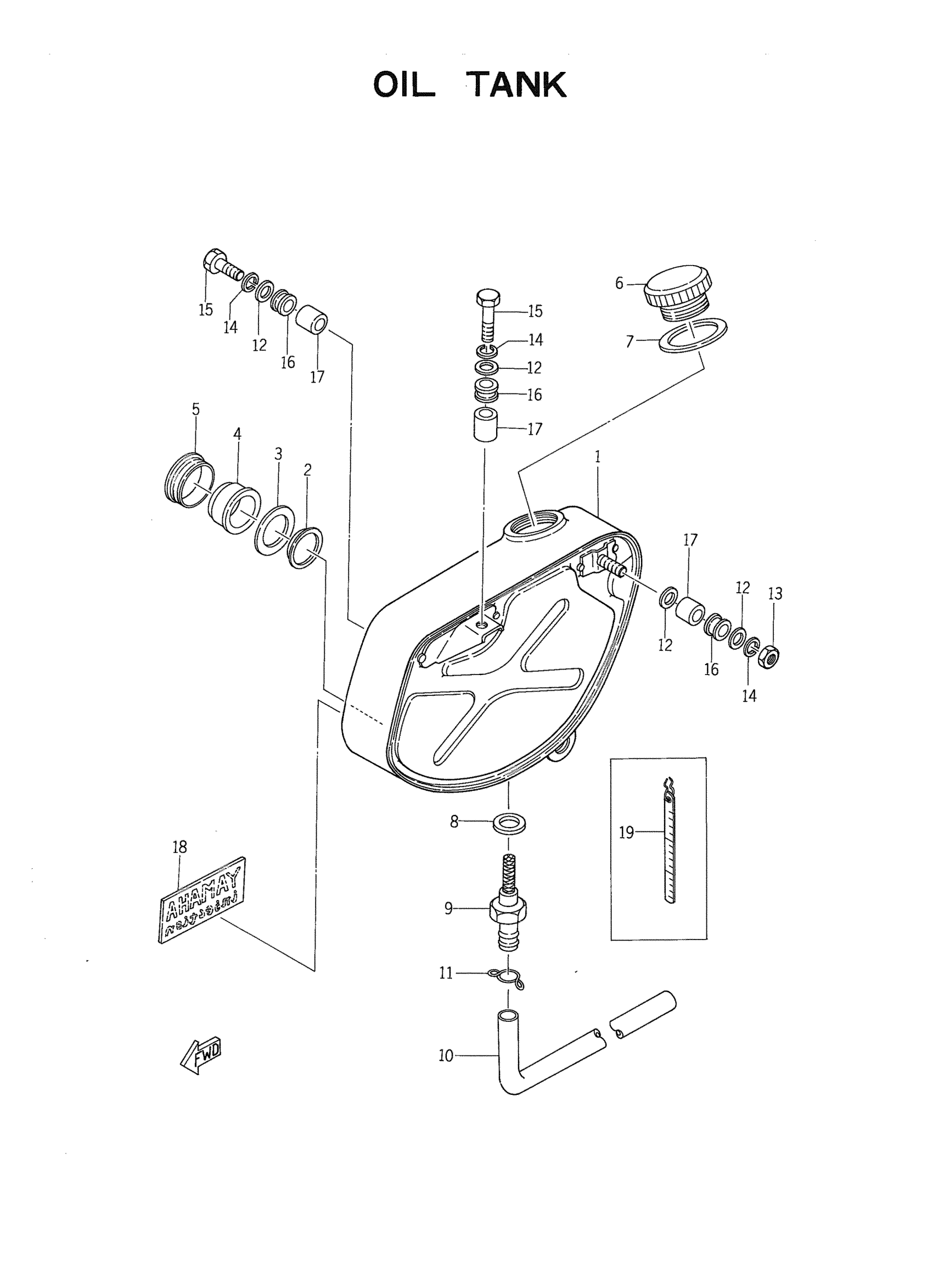

Yamaha YM2C (YM2C) 172 1967 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

170-21751-00-81

Unavailable

2

GAUGE, LEVEL

137-21761-00-00

Unavailable

3

GASKET, LEVEL GAUGE

137-21763-00-00

Unavailable

4

LENS, LEVEL GAUGE

137-21764-00-00

Unavailable

5

NUT,SPEC'L SHAPE

90179-36107-00

Unavailable

6

BODY,CAP

137-21771-61-00

Unavailable

7

GASKET,CAP

137-21772-02-00

Unavailable

8

GASKET

90430-10029-00

Unavailable

9

SCREW, UNION

137-21768-01-00

Unavailable

10

HOSE (L545)

90445-09361-00

Unavailable

11

CLIP 101235600

90467-08003-00

$10.49

12

WASHER, PLATE

90201-08104-00

Unavailable

13

NUT(6L2)

95333-08600-00

$2.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

BOLT(JA9)

90101-08691-00

$4.29

16

DAMPER, LOCATING 1

156-21778-00-00

Unavailable

17

COLLAR

156-21748-00-00

Unavailable

18

EMBLEM 2

137-21782-60-00

Unavailable

19

GAUGE, OIL

170-21792-10-00

Unavailable
