1967 Yamaha YM2C (YM2C) Generator YM2C Diagram

← All diagrams

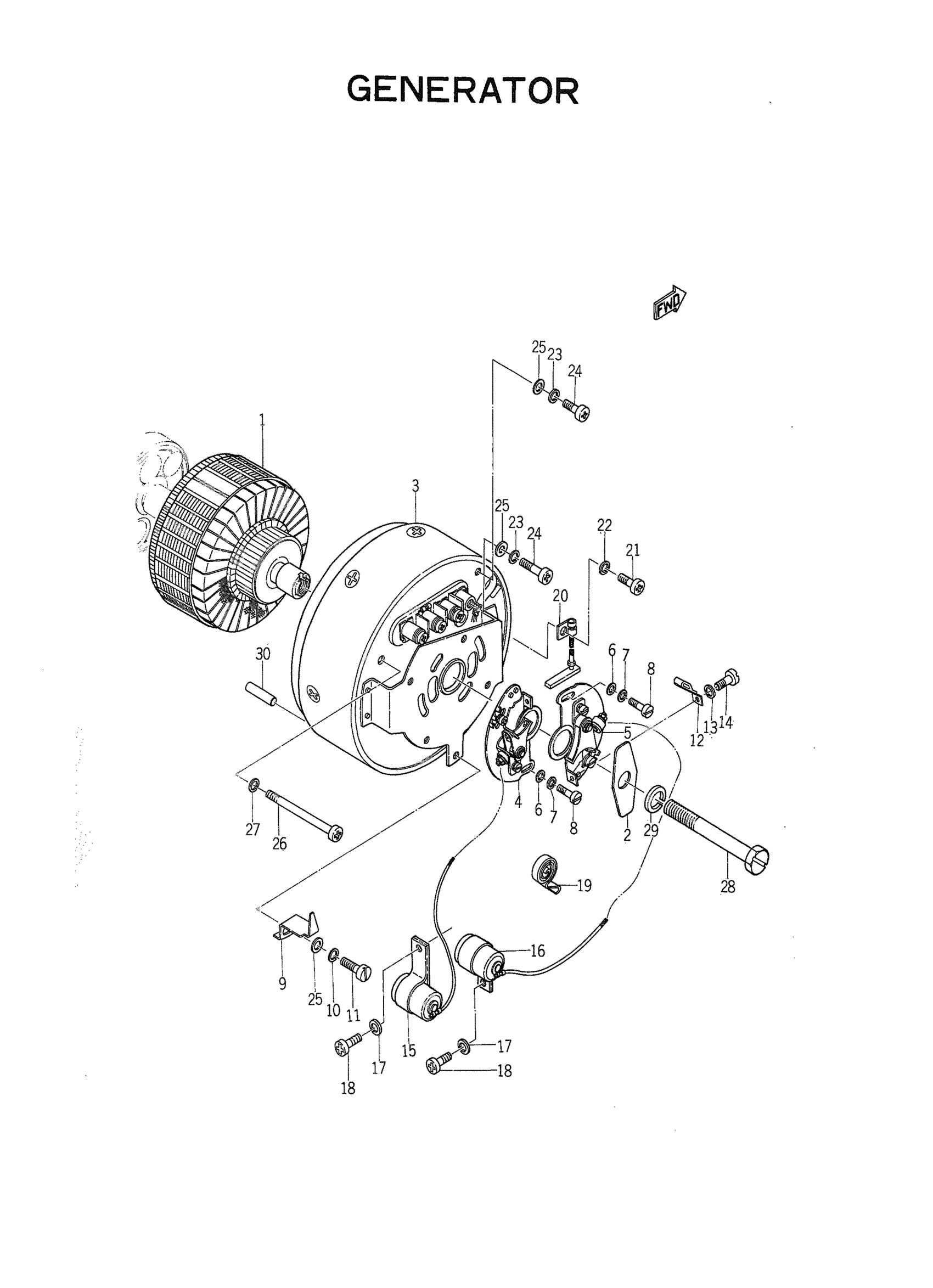

Find the part on the Generator YM2C diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha YM2C (YM2C) Generator YM2C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARMATURE

246-81255-20-00

1
Out of stock

2

PLATE, CAM

168-81254-20-00

1
Out of stock

3

STATOR ASY

246-81210-20-00

1
Out of stock

4

CONTACT BRKR ASSEMBLY

169-81121-20-00

1
Out of stock

5

CONTACT BRKR ASSEMBLY 2

169-81122-20-00

1
Out of stock

6

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

SCREW,PAN HEAD

164-81246-20-00

1
Out of stock

9

PLATE, TIMING

170-81232-20-00

1
Out of stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

SCREW,PAN HEAD

164-81246-20-00

1
Out of stock

12

LUBRICATOR

168-81231-20-00

1
Out of stock

13

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

14

. SCREW

92503-03006-00

1
Out of stock

15

CONDENSER 2

169-81126-21-00

1
Out of stock

16

.. CONDENSER 1

170-81225-20-00

1
Out of stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

18

SCREW, PAN HEAD

92503-04008-00

1
Out of stock

19

SPRING, BRUSH

131-81213-20-00

1
Out of stock

20

.. BRUSH

131-81211-20-00

1
Out of stock

21

SCREW

92503-05008-00

1
Out of stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

23

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

24

SCREW,PAN HEAD

164-81245-20-00

1
Out of stock

25

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

26

SCREW, STATOR

168-81235-20-00

1
Out of stock

26

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

28

BOLT

168-81252-21-00

1
Out of stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

30

PIN, DOWEL

93603-14026-00

—
Out of stock
