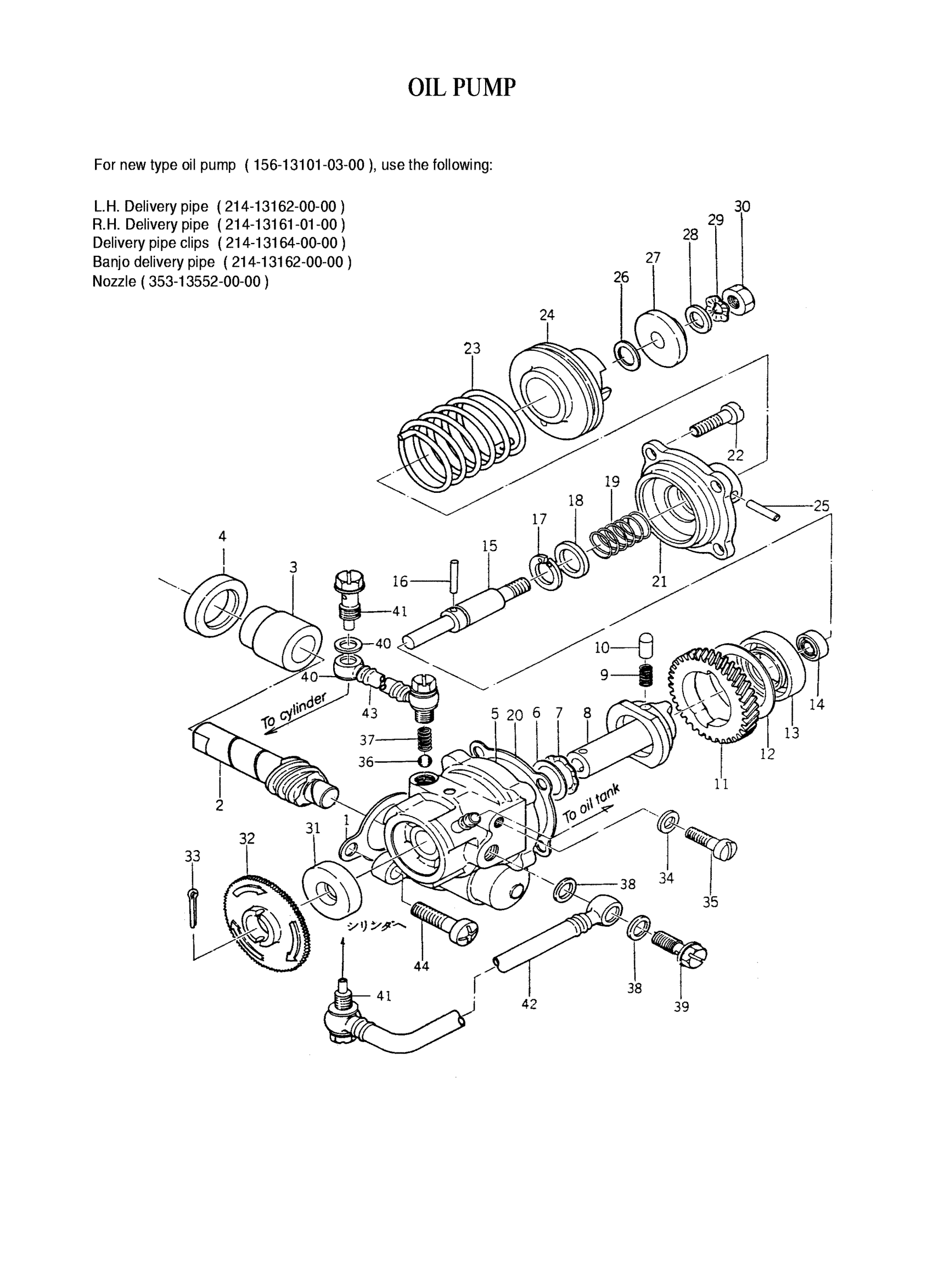

Yamaha YM1 (YM1) 159 1965 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SHAFT, WORM

159-13175-00-00

Unavailable

3

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

4

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

5

OIL PUMP ASY

159-13101-01-00

Unavailable

6

PLATE, CAM THRUST

137-13148-00-00

Unavailable

7

WASHER, WAVE (137)

90206-11016-00

Unavailable

8

. DISTRIBUTOR ASSY

156-13120-00-00

Unavailable

9

SPRING,COMPRESSION

90501-02016-00

Unavailable

10

. PIN, DOWEL

93602-04029-00

Unavailable

11

. GEAR, WORM WHEEL

159-13124-00-00

Unavailable

12

. PLATE, WORM WHEEL

137-13127-00-00

Unavailable

13

OIL SEAL (14X25X5-2H7)

93104-14059-00

$13.49

14

OIL SEAL

93104-04114-00

$4.29

15

. PLUNGER

137-13131-00-00

Unavailable

16

PIN,DOWEL (137)

93603-12030-00

Unavailable

17

. CIRCLIP, PLUNGER

93440-08001-00

Unavailable

18

. SEAT, SPRING

137-13134-00-00

Unavailable

19

. SPRING, PLNGR RTRN

137-13135-00-00

Unavailable

20

. GASKET, PUMP CASE COVER

137-13142-00-00

Unavailable

21

. COVER, PUMP CASE

137-13141-00-00

Unavailable

22

SCREW, PAN HEAD

92501-04010-00

Unavailable

23

. SPRING, TORSION (156-13145-00)

90508-10013-00

Unavailable

24

. PULLEY, ADJUSTING

156-13144-00-00

Unavailable

25

. PIN, SPRING

91606-20010-00

Unavailable

26

SHIM,PLUNGER

137-13137-00-10

Unavailable

27

PLATE, ADJUSTING

137-13138-01-00

Unavailable

28

SHIM,PLUNGER

137-13137-00-10

Unavailable

29

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

30

. NUT

137-13139-00-00

Unavailable

31

OIL SEAL (J10)

93101-10090-00

Unavailable

32

. PLATE, STARTER

137-13128-00-00

Unavailable

33

. PIN, COTTER

91401-12018-00

Unavailable

34

GASKET 137131870000

90430-04004-00

Unavailable

35

SCREW,PAN HEAD

164-81245-20-00

Unavailable

36

BALL

93505-32002-00

Unavailable

37

. SPRING, COMPRESSION

90501-02017-00

Unavailable

38

GASKET(3FP)

90430-06224-00

Unavailable

39

BOLT UNION 137131650000

90401-06001-00

Unavailable

40

GASKET(3FP)

90430-06224-00

Unavailable

41

BOLT, UNION

90401-06011-00

Unavailable

42

PIPE, DELIVERY 1

156-13161-00-00

Unavailable

43

PIPE, DELIVERY 2

156-13171-00-00

Unavailable

44

SCREW, PAN HEAD

90157-05M19-00

Unavailable
