- Partiron
- OEM Parts
- Yamaha
- motorcycle
- 1965
- YM1 (YM1) 159 1965
FRONT WHEEL

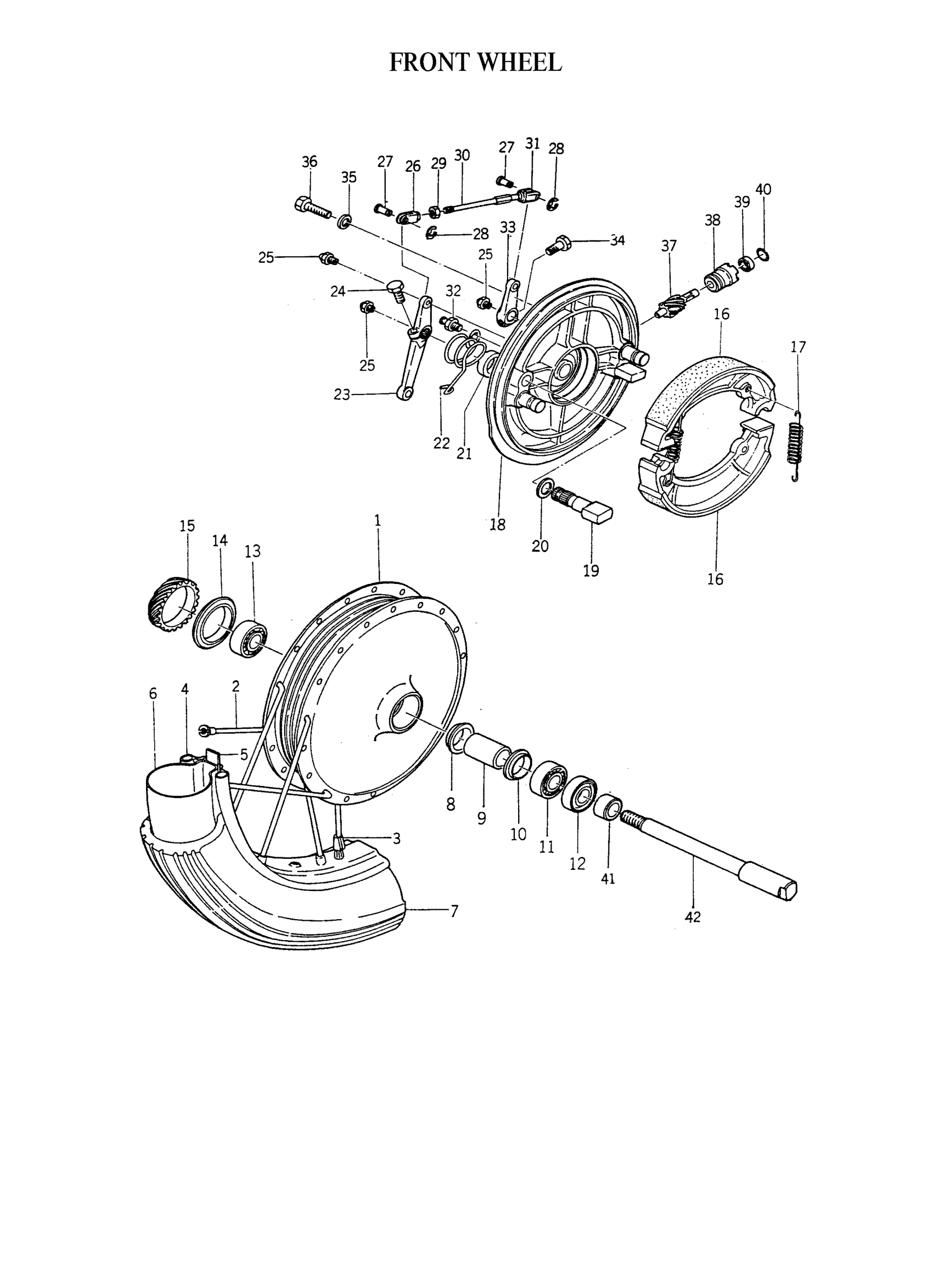

Yamaha YM1 (YM1) 159 1965 FRONT WHEEL Diagram
#
1
HUB, FRONT
152-25111-00-00
Unavailable
2
SPOKE SET, FRONT
152-25104-00-00
Unavailable
3
BALANCER, WHEEL
3HT-25398-00-00
$7.99
4
RIM 1.60X18
94416-18013-00
Unavailable
5
BAND, RIM (2J4)
94340-18086-00
$17.99
6
TUBE
94227-18010-00
Unavailable
6
TUBE (5H5)
94227-18195-00
$35.99
7
275-18 YOKO Y506
94127-18309-00
Unavailable
7
300-18 YOKO Y986
94130-18363-00
Unavailable
8
FLANGE, SPACER
146-25315-00-00
$7.99
9
SPACER, BEARING
152-25117-00-00
Unavailable
10
FLANGE, SPACER
146-25315-00-00
$7.99
11
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
$37.99
12
OIL SEAL, SDD-TYPE
93105-24006-00
Unavailable
13
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
$37.99
14
OIL SEAL, OS-TYPE
93107-50003-00
Unavailable
15
GEAR, DRIVE
152-25135-00-00
Unavailable
16
BRAKESHOE SET-2PCS
168-W2535-00-00
Unavailable
17
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
18
PLATE,BRAKE SHOE
156-25121-01-00
Unavailable
19
CAMSHAFT
168-25151-00-00
Unavailable
20
SHIM, CAM SHAFT
148-25353-00-00
Unavailable
21
SEAL, CAM SHAFT
148-25359-00-00
Unavailable
22
SPRING,TORSION
90508-23032-00
Unavailable
23
LEVER,CAMSHAFT 1
168-25155-00-00
Unavailable
24
BOLT(3DM)
97024-06020-00
Unavailable
25
NIPPLE, GREASE
93700-06M03-00
Unavailable
26
END, ROD 1
152-25163-00-00
Unavailable
27
PIN, SPEC'L SHAPE
90249-06095-00
Unavailable
28
CIRCLIP (EU0)
99080-04600-00
Unavailable
29
NUT
95380-06300-00
Unavailable
30
ROD, CONNECTING
152-25161-00-00
Unavailable
31
END, ROD 2
152-25164-00-00
Unavailable
32
SPRING, HOOK PIN
152-25125-00-00
Unavailable
33
LEVER,CAMSHAFT 2
168-25156-00-00
Unavailable
34
BOLT, HEXAGON
97017-06025-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
BOLT(3DM)
97024-06020-00
Unavailable
37
GEAR, METER
152-25138-00-00
Unavailable
38
BUSHING
109-25136-00-00
Unavailable
39
OIL SEAL (7X14X4-136)
93104-07003-00
Unavailable
40
O-RING (26H)
93210-14579-00
Unavailable
41
COLLAR
(90387-17136-00)
Unavailable
42
AXLE, WHEEL
152-25181-00-00)
Unavailable
