CRANK AND PISTON

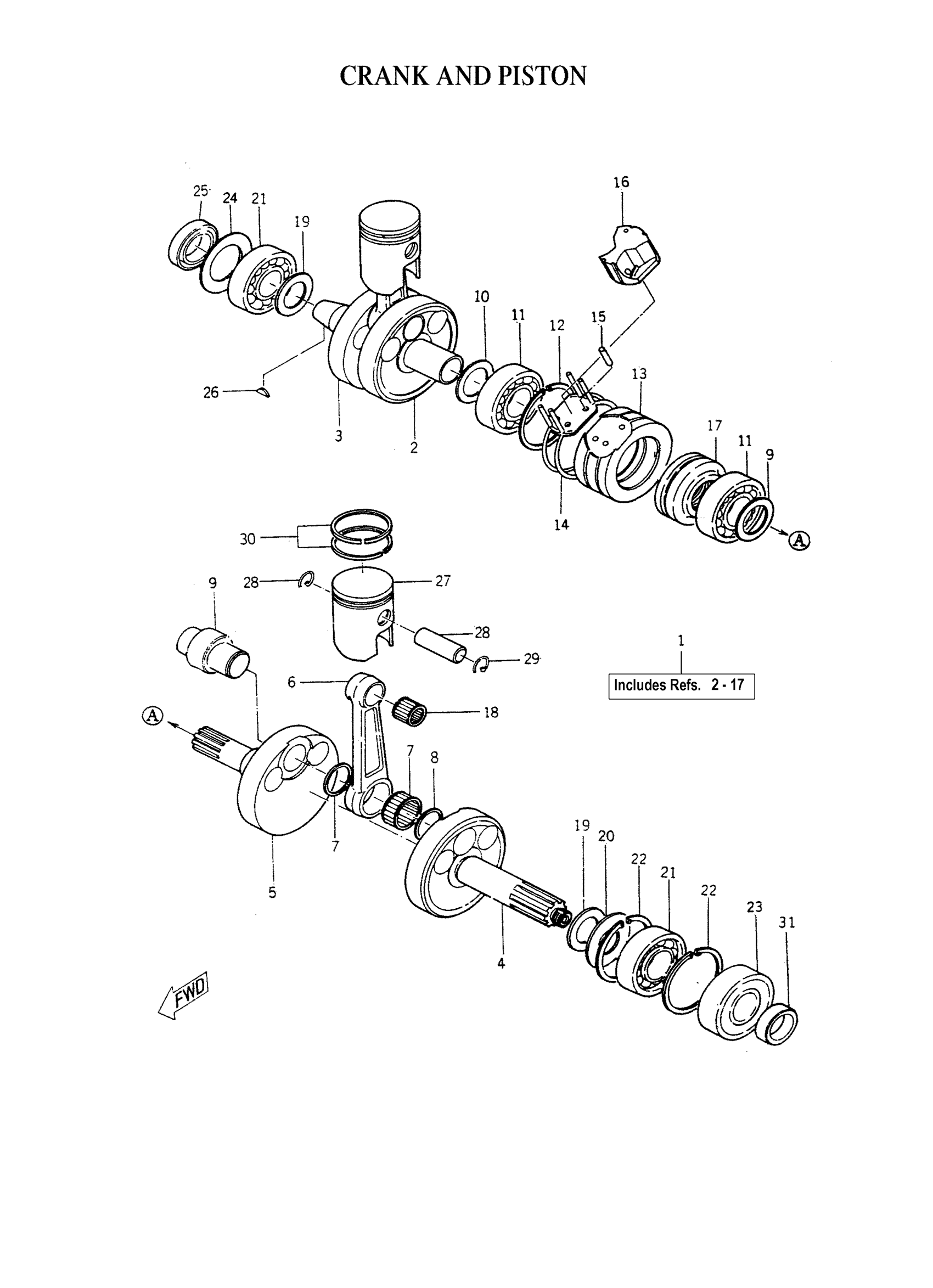

Yamaha YM1 (YM1) 159 1965 CRANK AND PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
159-11400-00-00
Unavailable
2
. CRANK 3
159-11432-00-00
Unavailable
3
. CRANK 2 (RH)
159-11442-00-00
Unavailable
4
. CRANK 1 (LH)
159-11412-00-00
Unavailable
5
. CRANK 2
159-11422-00-00
Unavailable
6
. ROD, CONNECTING
159-11651-00-00
Unavailable
7
BEARING, CYLINDER.#10
93310-42417-00
Unavailable
8
WASHER (152-11685-00)
90209-24073-00
$14.99
9
PIN, CRANK 1
156-11681-00-00
Unavailable
10
. SHIM, CRANK 4 (25-44-05)
156-11564-00-04
Unavailable
11
BEARING (5X5)
93306-20627-00
$75.99
12
CIRCLIP(MF1)
99009-62500-00
$8.49
13
COVER, CRANK
156-11511-01-00
Unavailable
14
SEAL, CRANK COVER 1
148-11512-00-00
Unavailable
15
PIN,DOWEL (137)
93604-14012-00
$1.81
16
METAL, FILLER
159-11541-00-00
Unavailable
17
SEAL, LABYRINTH 1
145-11515-01-00
Unavailable
18
BEARING, NEEDLE (24X)
93310-216L2-00
Unavailable
19
SHIM, CRANK 2
156-11562-00-05
Unavailable
20
SHIM, CRANK 1
156-11561-00-00
Unavailable
21
BEARING (8R9)
93306-30536-00
Unavailable
22
CIRCLIP(MF1)
99009-62500-00
$8.49
23
OIL SEAL, SW-TYPE
93103-35015-00
Unavailable
24
SHIM,CRANK 3
156-11563-00-00
Unavailable
25
OIL SEAL (20X36X10-733)
93103-20110-00
Unavailable
26
KEY,WOODRUFF
90280-04005-00
Unavailable
27
PISTON STD
159-11631-00-96
Unavailable
27
PISTON 1 O/S 0.25
159-11635-00-00
Unavailable
27
PISTON 2 O/S 0.50
159-11636-00-00
Unavailable
27
PISTON 3 O/S 0.75
159-11637-00-00
Unavailable
27
PISTON 4 O/S 1.00
159-11638-00-00
Unavailable
28
PIN, PISTON
137-11633-10-00
Unavailable
28
PIN, PISTON
4H7-11633-00-00
Unavailable
29
CIRCLIP (137-11634-00)
93450-17025-00
Unavailable
30
PISTON RINGSET STD
159-11601-00-00
Unavailable
30
PISTON RINGSET 1ST
159-11601-10-00
Unavailable
30
PISTON RINGSET 2ND
159-11601-20-00
Unavailable
30
PISTON RINGSET 3RD
159-11601-30-00
Unavailable
30
PISTON RINGSET 4TH
159-11601-40-00
Unavailable
31
COLLAR
90387-25189-00
Unavailable
