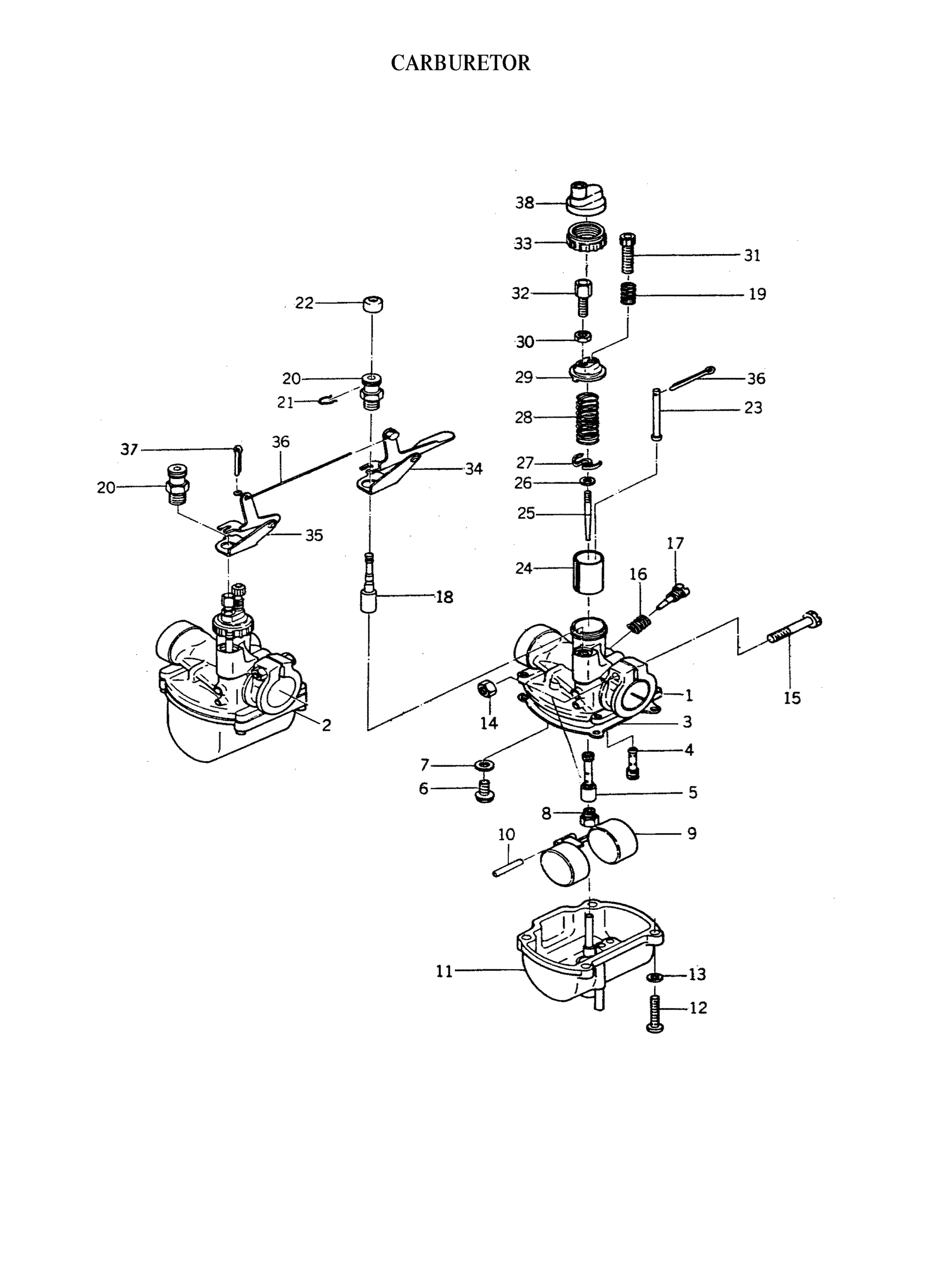

Yamaha YM1 (YM1) 159 1965 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY LH

156-14101-00-00

Unavailable

2

CARBURETOR ASSEMBLY RH

156-14102-00-00

Unavailable

3

. GASKET, FLOAT CHAMBER

156-14184-00-00

Unavailable

4

JET, PILOT #20

127-14142-20-00

Unavailable

5

NOZZLE, MAIN

(170-14141-35-00)

Unavailable

6

. NEEDLE VALVE ASSEMBLY

137-14190-20-00

Unavailable

7

WASHER, VALVE SEAT

127-14195-00-00

$7.99

8

JET, MAIN #110

137-14143-22-A0

Unavailable

8

. JET, MAIN #120

137-14143-24-00

Unavailable

8

JET, MAIN #130

137-14143-26-A0

$7.99

8

JET, MAIN #140

137-14143-28-A0

Unavailable

8

JET, MAIN #150

137-14143-30-00

$7.99

9

. FLOAT

156-14185-00-00

Unavailable

10

PIN, FLOAT

127-14186-00-00

$6.65

11

BODY,FLOAT CHMBR 1

246-14181-08-00

Unavailable

12

SCREW,PAN HEAD

92503-04015-00

Unavailable

13

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

14

NUT, HOLDING

137-14164-00-00

Unavailable

15

SCREW, BODY FITTING

137-14125-00-00

Unavailable

16

. SPRING, AIR ADJUSTING

137-14134-00-00

Unavailable

17

SCREW, AIR ADJUSTING

137-14123-00-00

Unavailable

18

PLUNGER, STARTER

156-14171-00-00

Unavailable

19

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

20

CAP, PLUNGER

132-14174-00-00

Unavailable

21

. CLIP, PLUNGER

152-14138-00-00

Unavailable

22

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

23

BAR, THROTTLE

156-14114-00-00

Unavailable

24

VALVE, THROTTLE

156-14112-2-00

Unavailable

25

NEEDLE

156-14116-04-00

Unavailable

26

CLIP

137-14137-00-00

Unavailable

27

SEAT, SPRING

156-14136-00-00

Unavailable

28

SPRING, THRTL VALVE

156-14131-01-00

Unavailable

29

TOP, MIXING CHAMBER

156-14158-00-00

Unavailable

30

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

31

SCREW, THRTL STOP

(127-14121-00-00)

Unavailable

32

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

33

CAP, MIXING CHAMBER

156-14168-00-00

Unavailable

34

LEVER, STARTER LH

156-14175-00-00

Unavailable

35

LEVER, STARTER RH

156-14176-00-00

Unavailable

36

ROD, STARTER LEVER

156-14177-00-00

Unavailable

37

. PIN, COTTER

91401-10015-00

Unavailable

38

CAP

156-14169-00-00

Unavailable
