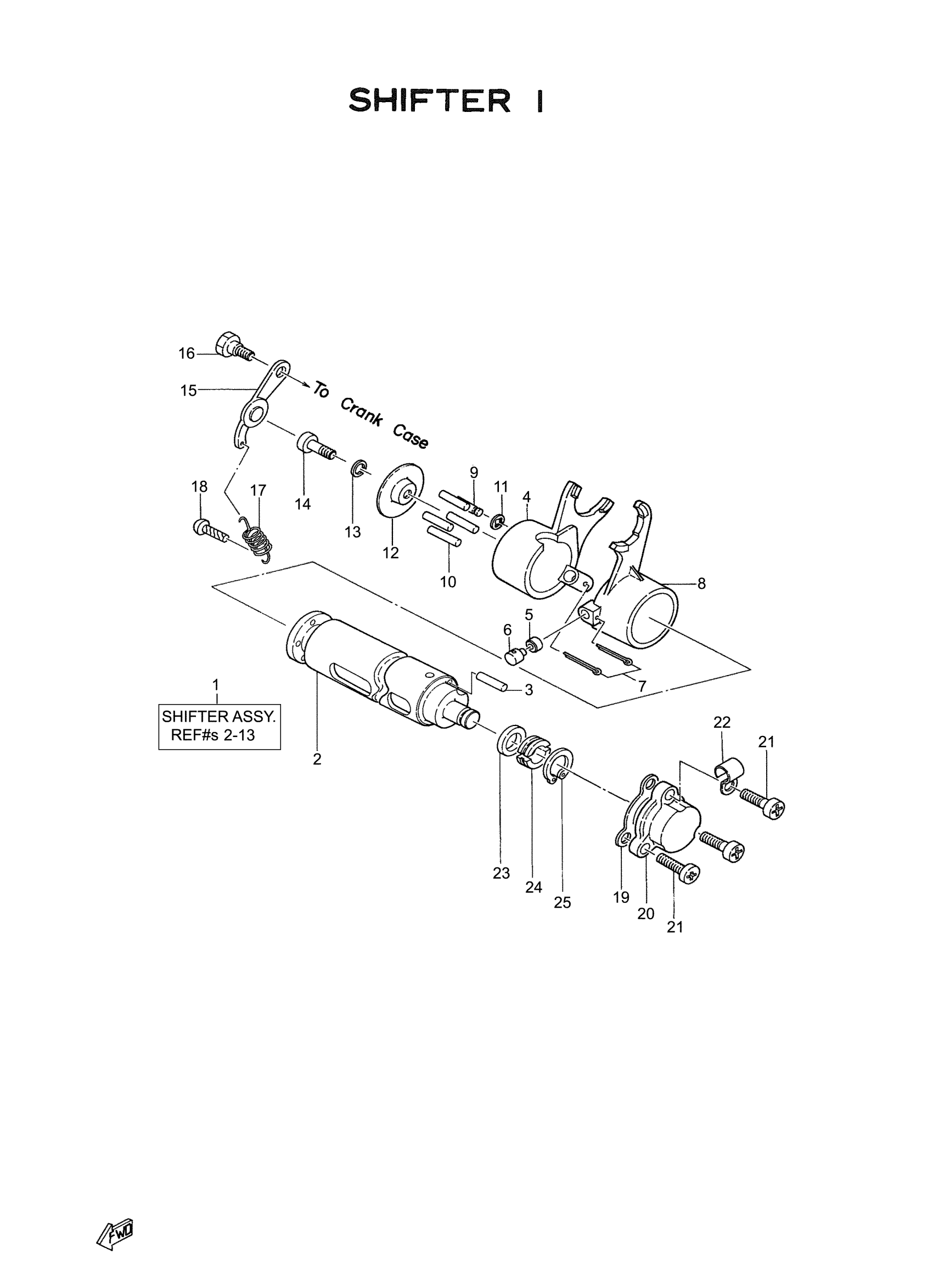

Yamaha YLCM_TRAILMASTER (TRAILMASTER) 205 1968 SHIFTER (1) Diagram
#
Description
Price
1
SHIFTER ASY
166-18500-63-00
Unavailable
2
CAM,SHIFT
166-W1854-63-00
Unavailable
3
.. PIN, DOWEL
93605-20043-00
Unavailable
4
. FORK, SHIFT 2
164-18512-00-00
Unavailable
5
. ROLLER, CAM FOLLOWER
164-18551-00-00
Unavailable
6
PIN,SPEC'L SHAPE
90249-10131-00
Unavailable
8
. FORK, SHIFT 1
164-18511-00-00
Unavailable
9
. PIN, SPEC''L SHAPE (174-18544-00)
90249-04039-00
Unavailable
11
. CIRCLIP, E-TYPE
93430-03014-00
Unavailable
14
SCREW,PAN HEAD
92503-05012-00
Unavailable
16
BOLT
90109-06239-00
Unavailable
17
SPRING, TENSION (260)
90506-09112-00
Unavailable
18
HOOK, SPRING
132-16346-00-00
Unavailable
19
GASKET, PLUG BLIND
4EG-18579-00-00
Unavailable
20
PLUG, BLIND SHIFT CAM
164-18589-00-00
Unavailable
21
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
22
WASHER PLATE 164185720000
90201-12166-00
Unavailable
22
CLAMP 164825940000
90462-05012-00
Unavailable
23
WASHER PLATE 164185720000
90201-12166-00
Unavailable
24
HOLDER, SHIFT CAM
307-18571-00-00
Unavailable
25
CIRCLIP
93440-15012-00
Unavailable
