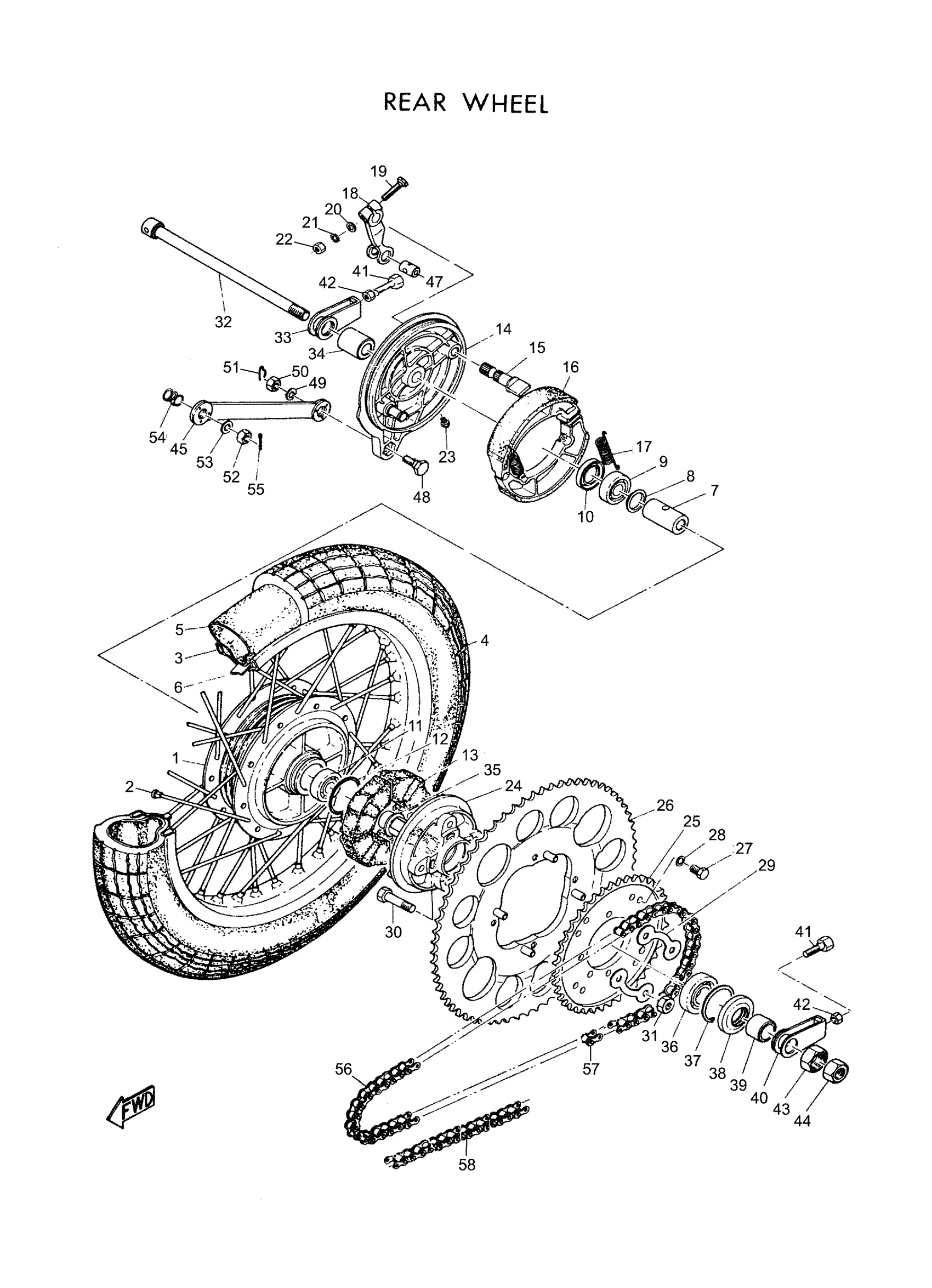

Yamaha YLCM_TRAILMASTER (TRAILMASTER) 205 1968 REAR WHEEL Diagram
#
1
HUB, REAR
195-25311-00-38
Unavailable
2
SPOKE SET, REAR
183-25304-01-00
Unavailable
3
RIM 1.60X18
94416-18018-00
Unavailable
4
300X18 YOKO Y610
94130-18041-00
Unavailable
6
BAND, RIM
94230-18010-00
Unavailable
7
SPACER 195253170000
90560-12108-00
Unavailable
12
O-RING (183)
93210-42101-00
Unavailable
13
PLATE, BRAKE SHOE
195-25321-00-38
Unavailable
14
CAMSHAFT
183-25351-00-00
Unavailable
15
BRAKE SHOE SET-2PCS
183-W2536-00-00
Unavailable
16
SPRING (5T9)
90506-17328-00
Unavailable
17
LEVER, CAM SHAFT
122-25355-00-00
Unavailable
18
BOLT(3DM)
97024-06020-00
Unavailable
19
DAMPER, CLUTCH
304-25364-01-00
Unavailable
20
AXLE, SPROCKET
205-25387-00-00
Unavailable
21
CLUTCH, HUB
58K-25366-00-00
Unavailable
22
SPROCKET, DRIVN 70T
205-25470-10-00
Unavailable
23
SPROCKET, DRIVN 40T
205-25440-10-00
Unavailable
24
BOLT, HEXAGON
97013-08030-00
Unavailable
25
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
26
WASHER
4AW-25412-00-00
Unavailable
27
BOLT(1AJ)
90101-08672-00
Unavailable
28
NUT(6L2)
95333-08600-00
Unavailable
29
AXLE, WHEEL
167-25381-00-00
Unavailable
30
PULLER,CHAIN 2
130-25389-00-00
Unavailable
31
COLLAR 195253830000
90387-12102-00
Unavailable
32
BEARING(3BN)
93306-00438-00
Unavailable
33
CIRCLIP(5U8)
99009-42500-00
Unavailable
34
SEAL,OIL
93106-26005-00
Unavailable
35
COLLAR
90387-18143-00
Unavailable
36
PULLER,CHAIN 1
130-25388-09-00
Unavailable
37
NUT, HEXAGON
90170-18165-00
Unavailable
38
NUT(3DM)
95304-12600-00
Unavailable
39
BOLT HEXAGON 167253790000
90101-06016-00
Unavailable
40
NUT, HEXAGON
95380-06600-00
Unavailable
41
BAR, TENSION
195-25371-00-00
Unavailable
42
BOLT 1092537300
90109-08063-00
Unavailable
43
. NUT
95380-08700-00
Unavailable
44
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
45
CLIP (156-83525-00)
90468-10050-00
Unavailable
46
SPRING,COMPRESSION
90501-20129-00
Unavailable
47
NUT (682)
95380-10700-00
Unavailable
48
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
49
PIN, COTTER
91490-25020-00
Unavailable
50
PIN 1562723700
90249-12008-00
Unavailable
51
SPRING, (180-27236-00)
90501-10245-00
Unavailable
52
NUT, HEXAGON
95380-06600-00
Unavailable
53
NUT (25K)
90179-06411-00
Unavailable
54
CHAIN, DRIVE
9Y580-52103-00
Unavailable
55
CHAIN 18L
94504-20018-00
Unavailable
56
JOINT, CHAIN (29A)
94680-52001-00
Unavailable
