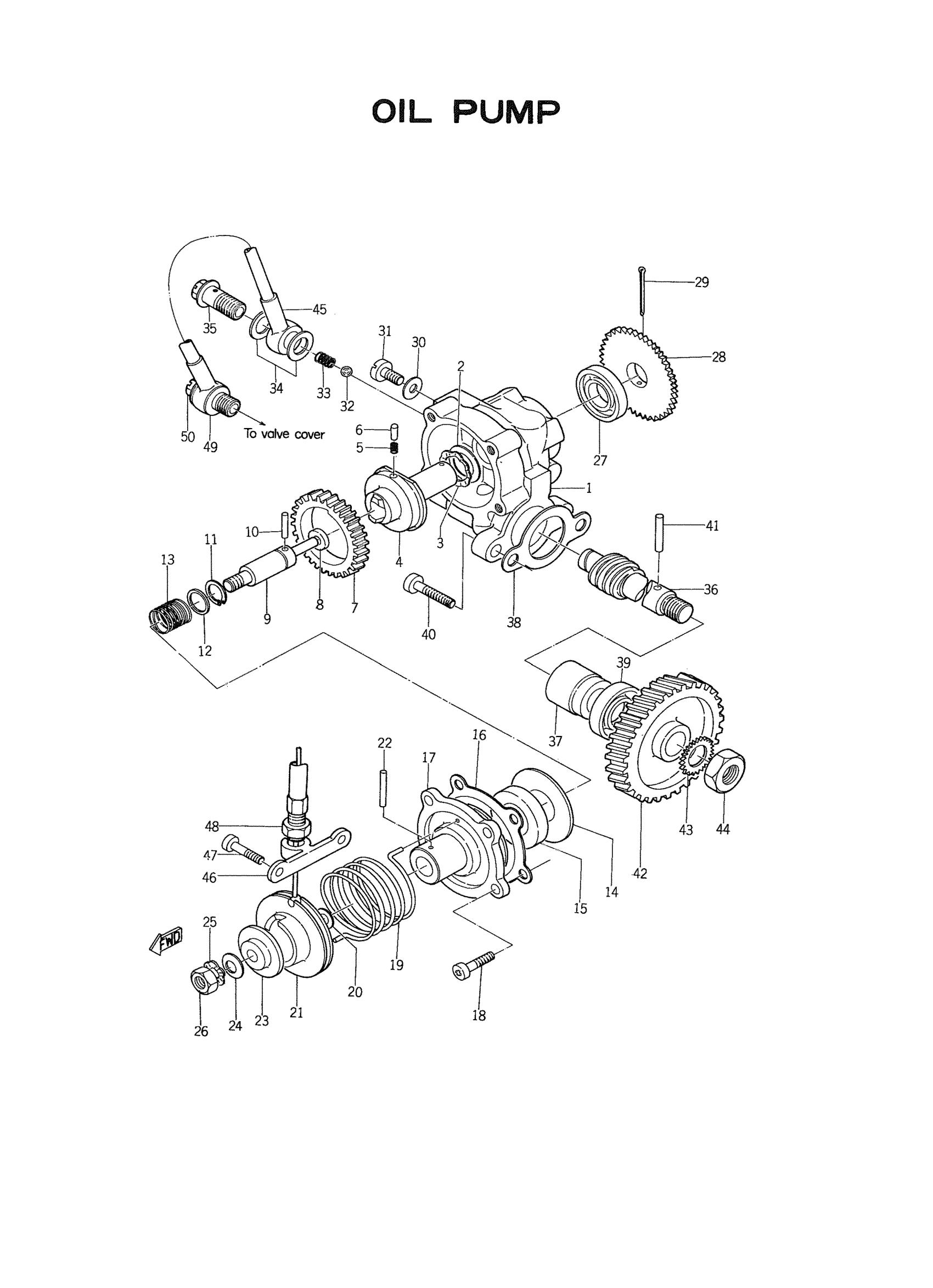

Yamaha YLCM_TRAILMASTER (TRAILMASTER) 205 1968 OIL PUMP Diagram
#
1
OIL PUMP ASSEMBLY
166-13101-02-00
Unavailable
2
PLATE, CAM THRUST
137-13148-00-00
Unavailable
3
WASHER, WAVE (137)
90206-11016-00
Unavailable
4
DITRIBUTOR ASSY
137-13120-00-00
Unavailable
5
SPRING,COMPRESSION
90501-02016-00
Unavailable
6
. PIN, DOWEL
93602-04029-00
Unavailable
7
GEAR, WORM WHEEL
168-13124-00-00
Unavailable
9
. PLUNGER
137-13131-00-00
Unavailable
11
. CIRCLIP, PLUNGER
93440-08001-00
Unavailable
12
. SEAT, SPRING
137-13134-00-00
Unavailable
13
. SPRING, PLNGR RTRN
137-13135-00-00
Unavailable
14
. PLATE, WORM WHEEL
137-12127-00-00
Unavailable
16
. GASKET, PUMP CASE COVER
137-13142-00-00
Unavailable
17
. COVER, PUMP CASE
137-13141-00-00
Unavailable
18
SCREW, PAN HEAD
92501-04010-00
Unavailable
19
. NO LONGER AVAILABLEK (137-13145-00)
90508-10216-00
Unavailable
20
SHIM,PLUNGER
137-13137-00-10
Unavailable
21
. PULLEY
164-13144-00-00
Unavailable
22
. PIN
91608-20010-00
Unavailable
23
PLATE, ADJUSTING
137-13138-01-00
Unavailable
24
SHIM,PLUNGER
137-13137-00-10
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
NUT, HEXAGON (663)
95380-05600-00
Unavailable
27
OIL SEAL (J10)
93101-10090-00
Unavailable
28
. PLATE, STARTER
137-13128-00-00
Unavailable
29
. PIN, COTTER
91401-12018-00
Unavailable
30
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
31
SCREW,PAN HEAD
164-81245-20-00
Unavailable
32
BALL
93505-32002-00
Unavailable
33
. SPRING, COMPRESSION
90501-02017-00
Unavailable
34
GASKET(3FP)
90430-06224-00
Unavailable
35
BOLT UNION 137131650000
90401-06001-00
Unavailable
36
SHAFT, WORM
166-13175-00-00
Unavailable
37
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
38
GASKET, PUMP CASE
126-13116-01-00
Unavailable
39
OIL SEAL (10X22X7-137)
93101-10002-00
Unavailable
40
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
40
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
41
PIN,DOWEL (137)
93603-22028-00
Unavailable
42
GEAR, PUMP DRIVE
126-13178-00-00
Unavailable
43
WASHER (688)
92990-08400-00
Unavailable
44
. NUT
95380-08700-00
Unavailable
45
PIPE, DELIVERY 1
164-13161-00-00
Unavailable
46
HOLDER, ADJUSTING
164-26381-00-00
Unavailable
47
SCREW,PAN HEAD
92503-05012-00
Unavailable
47
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
48
NUT(650)
95380-06700-00
Unavailable
49
GASKET(3FP)
90430-06224-00
Unavailable
50
BOLT UNION 137131650000
90401-06001-00
Unavailable
