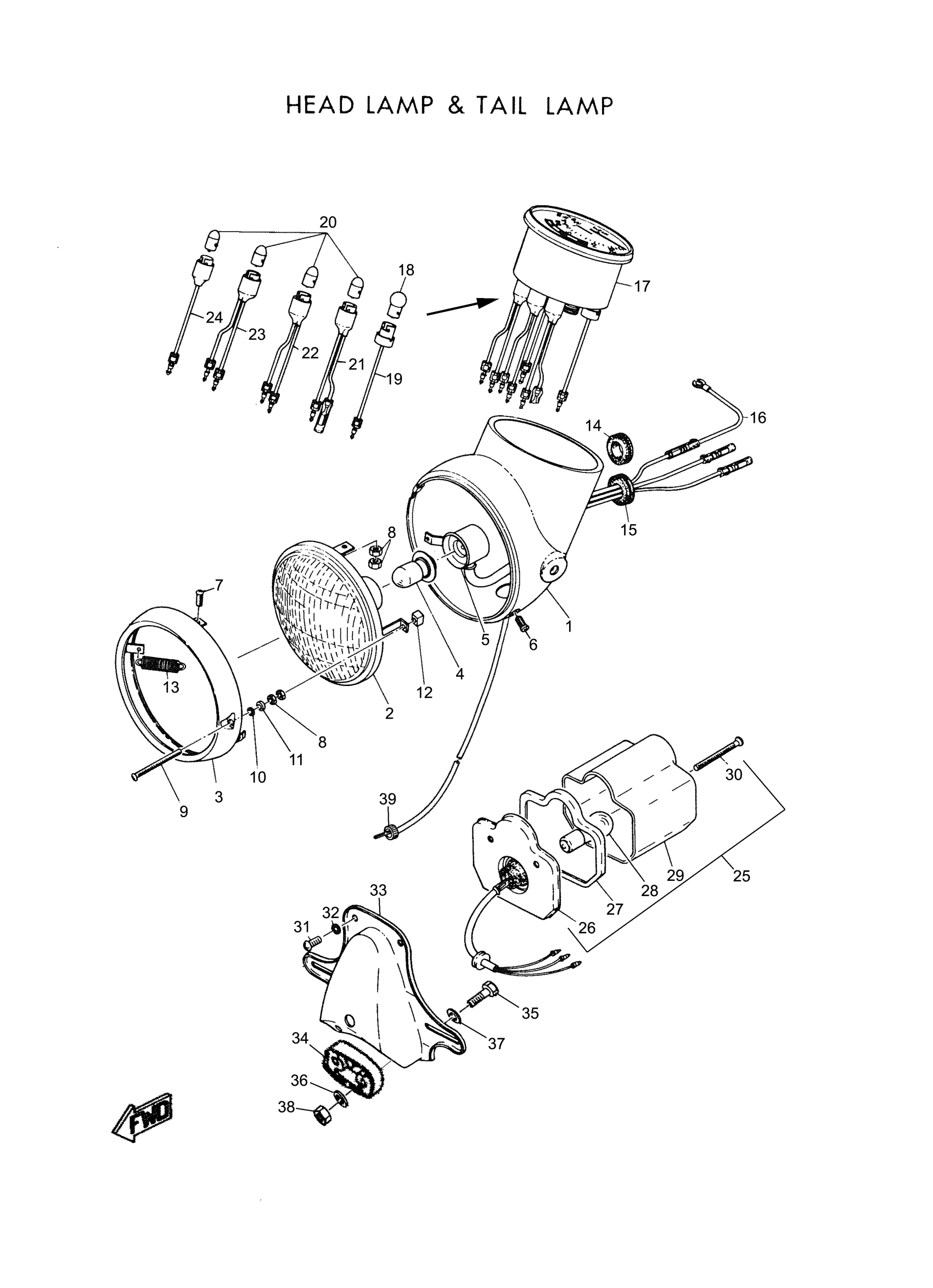

Yamaha YLCM_TRAILMASTER (TRAILMASTER) 205 1968 HEAD LAMP AND TAIL LAMP Diagram

#

Description

Price

1

BODY, HEADLIGHT

201-84311-00-22

Unavailable

1

BODY ASSEMBLY

201-84330-00-81

Unavailable

2

LENS ASSEMBLY

198-84320-60-00

Unavailable

3

RIM, HEADLIGHT

198-84315-61-00

Unavailable

4

BULB, HEADLIGHT (12V-25/25W)

1YT-84314-00-00

$11.99

5

SOCKET

198-84312-61-00

Unavailable

6

SCREW, RIM FITTING

150-84125-00-00

Unavailable

7

SCREW,PAN HEAD

92503-04012-00

Unavailable

8

NUT

132-84326-60-00

Unavailable

9

SCREW, RIM ADJUSTING

198-84331-60-00

Unavailable

10

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

11

SPACER

132-84328-00-00

Unavailable

12

NUT, ADJUST

198-84334-60-00

$7.99

13

SPRING, LENS ADJUSTING

132-84335-00-00

Unavailable

14

GROMMET

90480-23043-00

Unavailable

15

GROMMET B

122-84154-00-00

Unavailable

16

WIRE, EARTH

195-84313-00-00

Unavailable

17

SPEEDOMETER ASSEMBLY

164-83510-70-00

Unavailable

18

BULB (12V-3.4W)

123-83516-21-00

Unavailable

19

. SOCKET, METER

(164-83536-20-00)

Unavailable

20

BULB

256-84347-00-00

Unavailable

21

. SOCKET, NEUTRAL

(164-83537-20-00)

Unavailable

22

. SOCKET, FLASHER

(164-83538-20-00)

Unavailable

23

. SOCKET, CHARGE

(164-83539-20-00)

Unavailable

24

. SOCKET, HIGH BEAM

164-83529-20-00

Unavailable

25

TAILLIGHT UNIT ASY

202-84710-60-00

Unavailable

26

. BASE, TAILLIGHT

(202-84711-60-00)

Unavailable

27

. SEAT, BASE

(168-84712-00-00)

Unavailable

28

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

29

. LENS, TAILLIGHT

(168-84721-60-00)

Unavailable

30

. SCREW, LENS FITTING

168-84724-00-00

Unavailable

31

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

BRACKET,LICENSE

164-84751-60-35

Unavailable

34

DAMPER

164-84753-60-00

Unavailable

35

BOLT 168217380000

90109-06017-00

Unavailable

36

WASHER, SPRING

92995-06100-00

Unavailable

37

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

38

NUT

93380-06600-00

Unavailable

39

SPEEDOMETER CABLE

167-83550-01-00

Unavailable
