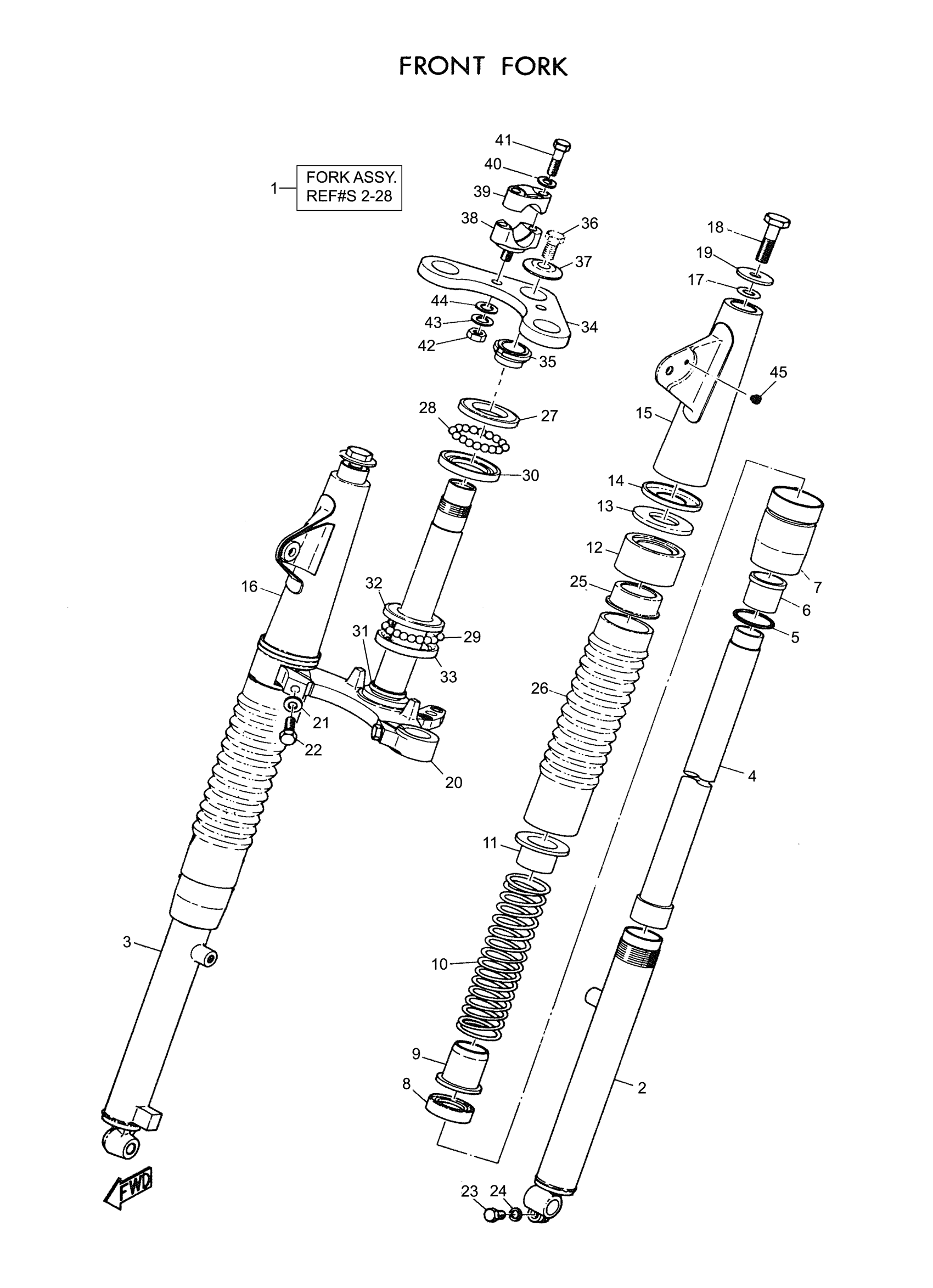

Yamaha YLCM_TRAILMASTER (TRAILMASTER) 205 1968 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY
205-23100-40-81
Unavailable
2
. TUBE, OUTER 1
205-23126-40-81
Unavailable
3
. TUBE, OUTER 2
205-23136-40-81
Unavailable
4
. TUBE, INNER 1
205-23124-40-00
Unavailable
5
. O-RING
164-23147-00-00
Unavailable
6
. METAL, SLIDE 1
164-23125-00-00
Unavailable
7
OUTER NUT
205-23150-40-00
Unavailable
8
. OIL SEAL
164-23145-01-00
Unavailable
9
. SEAT, SPRING LOWER
164-23143-00-00
Unavailable
10
SPRING,FRONT FORK
205-23141-40-00
Unavailable
11
. SEAT, SPRING UPPER
167-23142-00-00
Unavailable
12
. COVER, OUTER 1
183-23122-40-00
Unavailable
13
. GASKET
183-23163-00-00
Unavailable
14
. GUIDE, COVER LOWER
183-23116-00-00
Unavailable
15
. COVER, UPPER 1
205-23121-40-81
Unavailable
16
. COVER, UPPER 2
205-23131-40-81
Unavailable
17
GASKET
307-23114-00-00
Unavailable
18
BOLT, CAP
205-23111-40-00
Unavailable
19
WASHER, CAP
207-23112-00-00
Unavailable
20
UNDER BRACKET
205-23340-40-33
Unavailable
21
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
22
BOLT 1
122-23346-02-00
Unavailable
23
BOLT, HEXAGON
97017-08025-00
Unavailable
24
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
25
. GUIDE, BOOT
167-23193-00-00
Unavailable
26
BOOT,FRONT FORK
183-23191-40-00
Unavailable
27
RACE, BALL 1
4FP-F3411-20-00
Unavailable
28
BALL
93501-04011-00
Unavailable
29
BALL
93501-04011-00
Unavailable
30
RACE,BALL 2
4FP-F3412-10-00
Unavailable
31
SEAL, DUST
164-23462-00-00
Unavailable
32
RACE, BALL 2
B6E-23412-00-00
Unavailable
33
RACE, BALL 1
B6E-23411-00-00
Unavailable
34
CROWN, HANDLE
207-23435-00-35
Unavailable
35
NUT (122-23453-00)
90179-25051-00
Unavailable
36
BOLT 1222345100
90105-10006-00
Unavailable
37
WASHER (1YJ)
90209-10160-00
Unavailable
38
HOLDER, HANDLE LOWER
122-23442-03-00
Unavailable
39
HOLDER, HANDLE UPPER
462-23441-01-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
41
BOLT(3RV)
97014-06035-00
Unavailable
42
NUT(3BM)
95314-10600-00
Unavailable
43
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
44
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
45
PLUG, BLIND
117-21279-00-00
Unavailable
