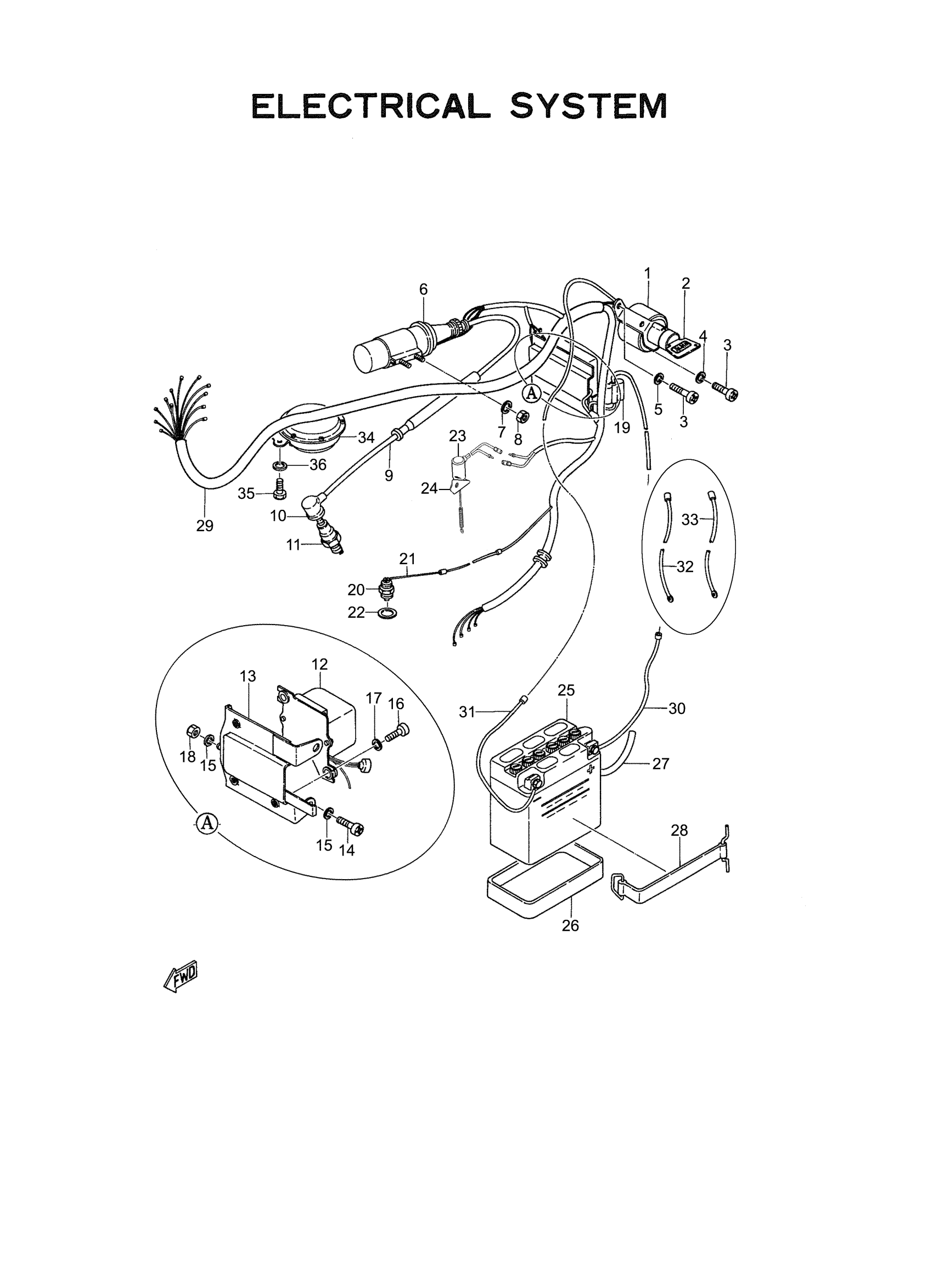

Yamaha YLCM_TRAILMASTER (TRAILMASTER) 205 1968 ELECTRICAL SYSTEM Diagram

#

Description

Price

1

MAIN SWITCH ASSEMBLY

164-82508-10-00

Unavailable

2

. KEY, MAIN SWITCH

131-82511-00-00

Unavailable

3

SCREW PAN HEAD

98580-06010-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

IGNITION COIL ASSEMBLY

132-82310-70-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

CORD, HIGH TENS 1

164-82341-00-00

Unavailable

10

PLUG CAP ASSY

166-82370-20-00

$37.99

11

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable

11

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

12

VOLTAGE REG ASSEMBLY

165-81910-20-00

Unavailable

13

PLATE, REGULATOR FITTING

164-81915-00-00

Unavailable

14

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

SCREW, PAN

98507-06014-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

20

NEUTRAL SWITCH ASY

146-82540-01-00

Unavailable

21

WIRE, LEAD

164-82541-00-00

Unavailable

22

WASHER, PLATE

90201-12790-00

Unavailable

23

STOP SWITCH ASY

205-82530-01-00

Unavailable

24

STAY, STOP SWITCH

205-82539-00-00

Unavailable

25

12N73BY YUASA BATTERY

12N-73BY0-00-00

Unavailable

26

SEAT, BATTERY

123-82122-00-00

Unavailable

27

PIPE,BREATHER

2RH-21826-00-00

Unavailable

28

BAND, BATTERY

133-82131-00-00

Unavailable

29

WIRE HARNESS ASSEMBLY

205-82590-10-00

Unavailable

30

WIRE, PLUS LEAD

164-82115-00-00

Unavailable

31

WIRE, MINUS LEAD

131-82116-00-00

Unavailable

32

WIRE, LEAD 2

122-84149-00-00

Unavailable

33

WIRE, EARTH LEAD

164-84756-60-00

Unavailable

34

HORN

131-83371-23-00

Unavailable

35

BOLT(JA9)

90101-08691-00

Unavailable

36

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
