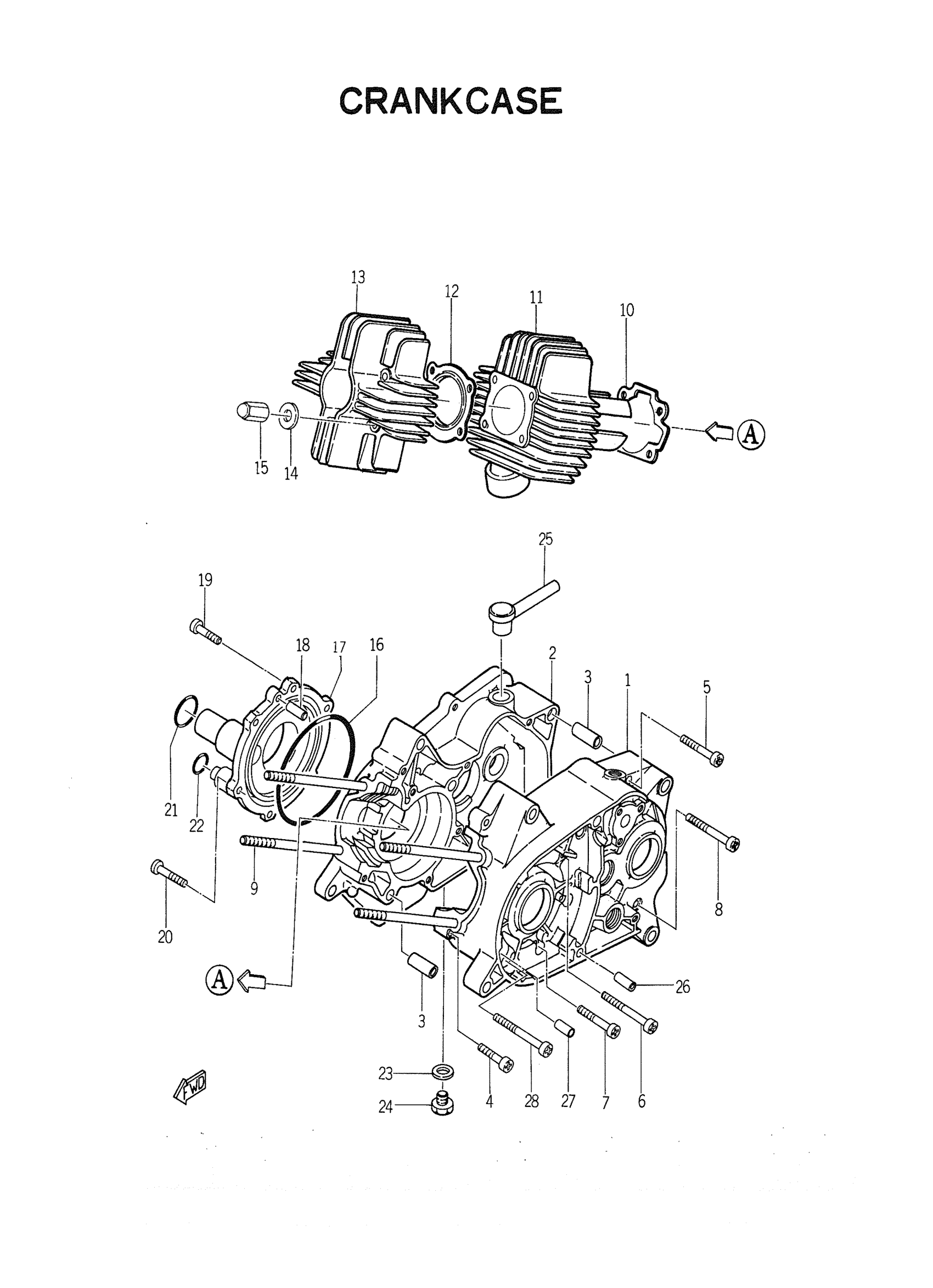

Yamaha YLCM_TRAILMASTER (TRAILMASTER) 205 1968 CRANK CASE Diagram
#
Description
Price
1
CRANKCASE 1
164-15111-01-00
Unavailable
2
CRANKCASE 2
164-15121-01-00
Unavailable
4
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
6
SCREW PAN HEAD
98580-06565-00
Unavailable
7
SCREW, PANHED (GC2)
98580-06555-00
Unavailable
8
SCREW, BIND (JH1)
98580-06560-00
Unavailable
10
GASKET, CYLINDER
131-11351-01-00
Unavailable
11
CYLINDER 1
166-11311-00-00
Unavailable
12
GASKET, CYLINDER HEAD
531-11181-00-00
Unavailable
13
HEAD,CYLINDER 1
205-11111-00-00
Unavailable
14
WASHER, PLATE
90201-07077-00
Unavailable
15
NUT, CROWN (166-11171-60)
90176-07003-00
Unavailable
16
RING,RUBBER
180-13554-00-00
Unavailable
17
COVER, VALVE
205-13551-00-00
Unavailable
18
PIN,DOWEL (137)
93604-14012-00
Unavailable
19
SCREW, PAN
98507-06014-00
Unavailable
20
SCREW, OVAL HEAD
98603-06018-00
Unavailable
21
O-RING (137)
93210-26033-00
Unavailable
22
O-RING (137)
93210-12014-00
Unavailable
23
GASKET (3JD1)
90430-12207-00
Unavailable
24
PLUG STRAIGTSCREW 132153510000
90340-12005-00
Unavailable
25
BREATHER
206-15371-00-00
Unavailable
26
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
27
PIN, DOWEL
93603-14026-00
Unavailable
28
SCREW PAN HEAD
98580-06570-00
Unavailable
