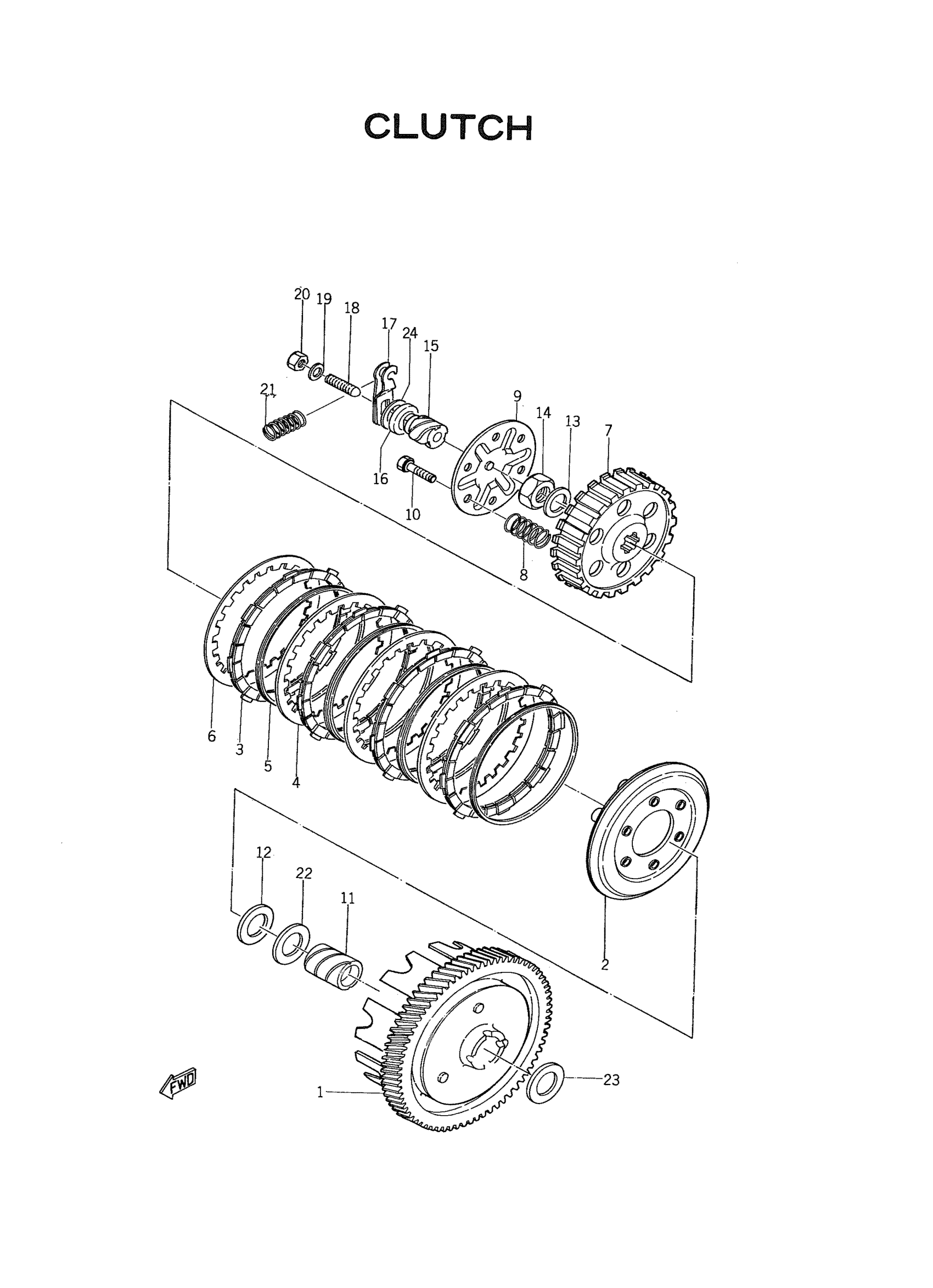

Yamaha YLCM_TRAILMASTER (TRAILMASTER) 205 1968 CLUTCH Diagram
#
Description
Price
1
. PRI DRVN GEAR
164-16105-02-00
Unavailable
2
. PLATE, PRESSURE 2
131-16352-01-00
Unavailable
5
RING, CUSHION
131-16367-00-00
Unavailable
6
PLATE, CLUTCH 3
131-16326-00-00
Unavailable
7
. BOSS, CLUTCH
164-16371-02-00
Unavailable
8
SPRING COMPRESSION180163330000
90501-20126-00
Unavailable
9
PLATE, PREESURE 1
122-16351-90-00
Unavailable
10
SCREW, PAN HEAD
98580-05020-00
Unavailable
11
SPACER (517)
90560-17146-00
Unavailable
12
PLATE, THRUST
131-16154-00-00
Unavailable
15
SCREW, PUSH
164-16341-01-00
Unavailable
16
OIL SEAL, SO-TYPE
93104-15009-00
Unavailable
17
LEVER, PUSH
164-16342-01-00
Unavailable
18
BOLT SET 241163430000
90113-06013-00
Unavailable
19
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
20
NUT(650)
95380-06700-00
Unavailable
21
SPRING, COMPRESSION
90501-08040-00
Unavailable
22
. BEARING, FLAT #41
93341-22302-00
Unavailable
23
PLATE, THRUST
122-16164-00-00
Unavailable
24
WASHER, STPPR LEVER
102-18454-00-00
Unavailable
