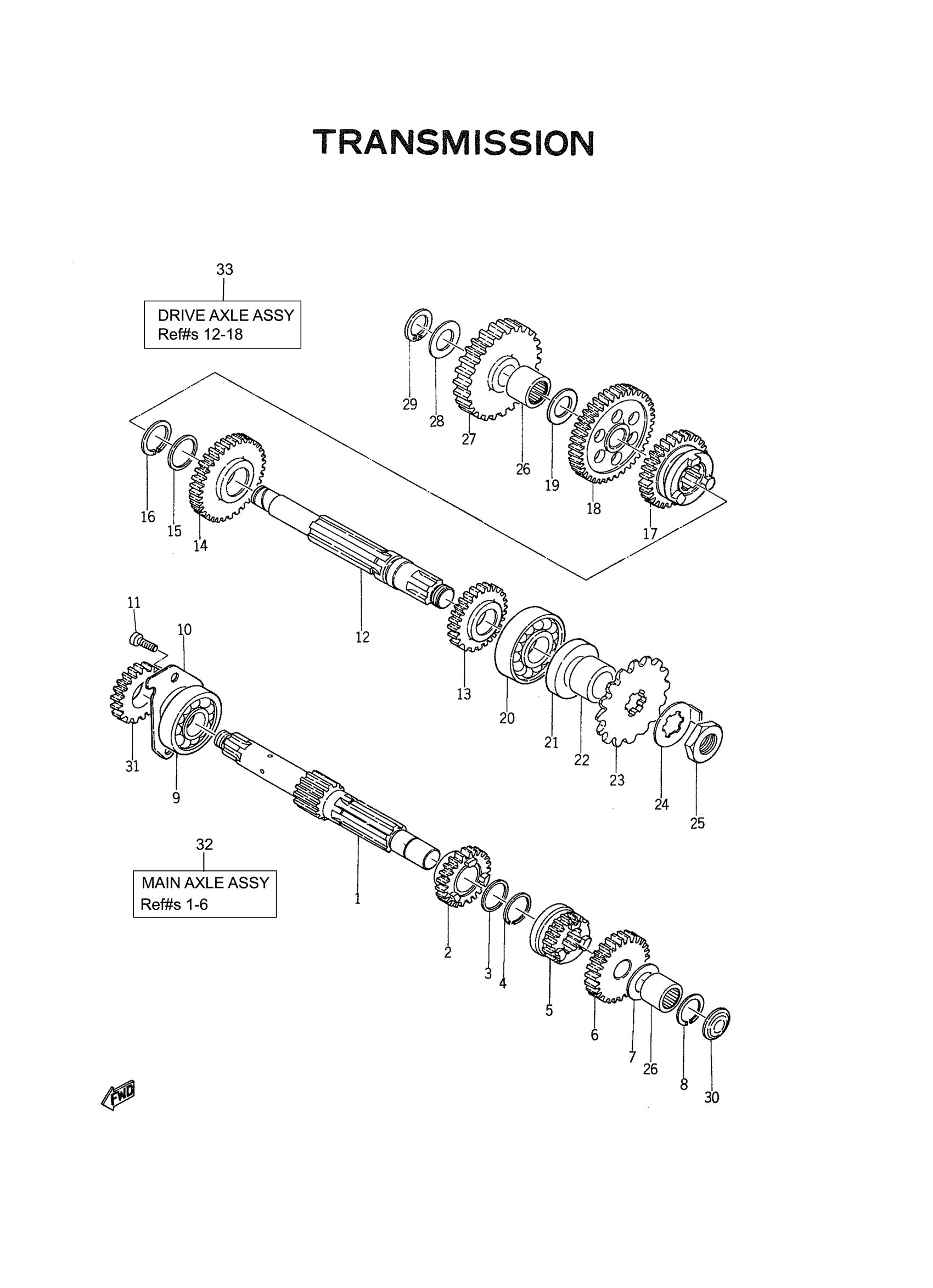

Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 TRANSMISSION Diagram
#
1
AXEL, MAIN
164-17411-03-00
Unavailable
2
GEAR, 3RD PINION
164-17131-01-00
Unavailable
5
GEAR, 2ND PINION
164-17121-00-00
Unavailable
6
GEAR, 4TH PINION
254-17141-00-00
Unavailable
10
PLATE,COVER
257-17471-01-00
Unavailable
11
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
12
DRIVE AXLE ASY
164-17420-02-00
Unavailable
13
GEAR, 4TH WHEEL
164-17241-00-00
Unavailable
14
GEAR, 2ND WHEEL
164-17221-00-00
Unavailable
17
GEAR, 3RD WHEEL
164-17231-00-00
Unavailable
18
GEAR, 1ST WHEEL
164-17211-01-00
Unavailable
19
SHIM 1 (T=0.6)
164-17417-00-06
Unavailable
20
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
21
OIL SEAL (26X38X5-181)
93102-26042-00
Unavailable
22
COLLAR (525)
90387-20491-00
Unavailable
23
SPROCKET,DRIVE 15T(5171746152)
93812-15063-00
Unavailable
23
SPROCKET, DRIVE (166-17461-60)
93812-16092-00
Unavailable
23
SPROCKET, DRIVE
122-17461-70-00
Unavailable
24
WASHER, LOCK (1L8)
90215-16127-00
Unavailable
25
NUT,SPEC'L SHAPE
90179-16018-00
Unavailable
26
BRG,CYL-CAL ROLLER 16G TM
93315-31502-00
Unavailable
27
GEAR, KICK IDLE
132-15651-00-00
Unavailable
28
WASHER
132-15653-00-10
Unavailable
29
CIRCLIP(13M)
99009-13400-00
Unavailable
30
PLUG, EXPANSION
90330-24005-00
Unavailable
31
GEAR,KICK PINION
164-15631-01-00
Unavailable
32
MAUN AXLE ASSY
164-17401-00-00
Unavailable
33
DRIVE AXLE ASY
164-17420-02-00
Unavailable
