1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Tank Diagram

← All diagrams

Find the part on the Tank diagram for your 1967 Yamaha Trailmaster (YL2C_TRAILMASTER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

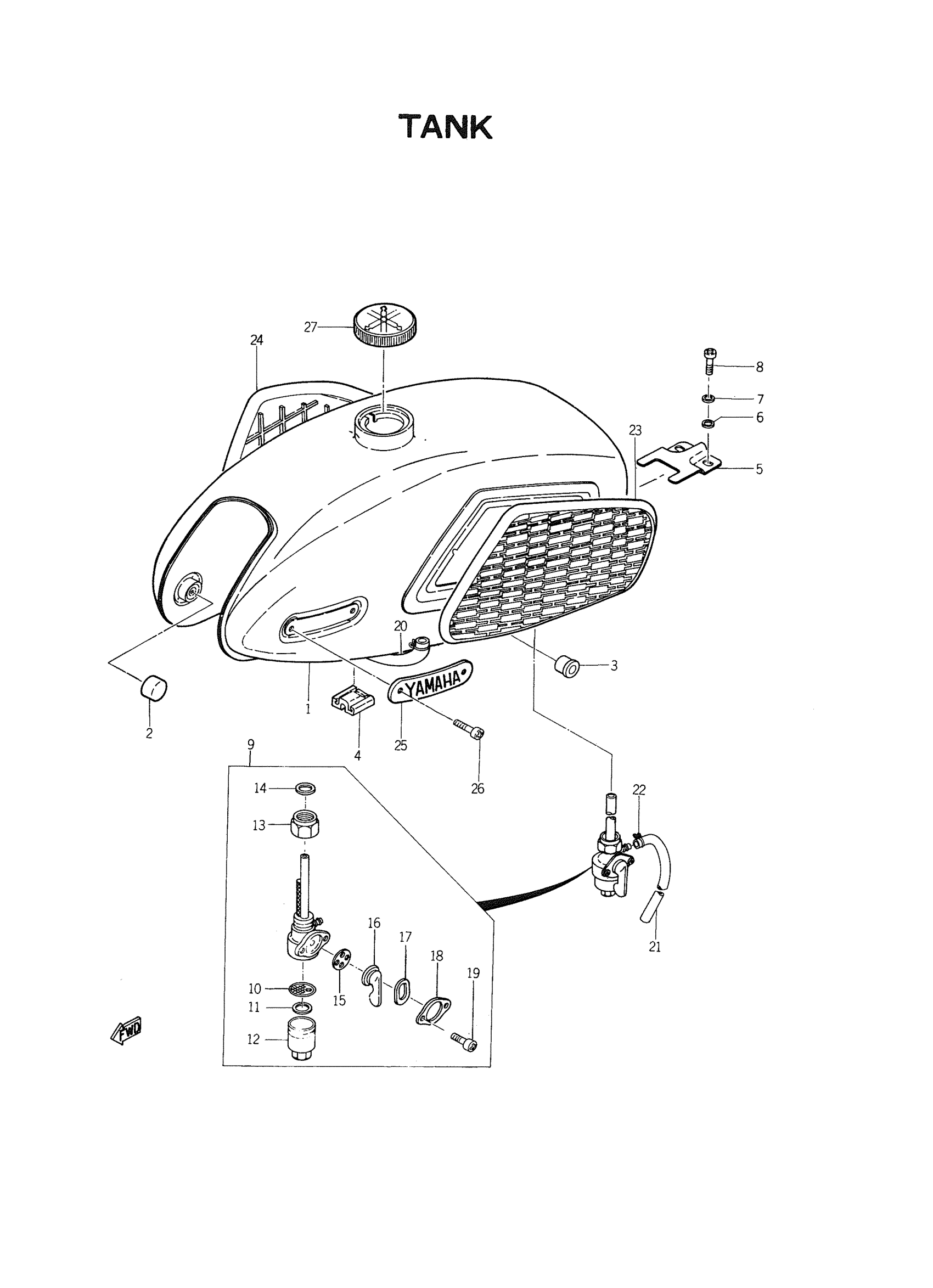

1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

164-24110-01-81

1
Out of stock

2

DAMPER, LOCATING(1)

122-24181-00-00

1

$6.48

In stock

3

DAMPER, LOCATING 2

122-24182-01-00

1
Out of stock

4

DAMPER, LOCATING 3

164-24183-00-00

1
Out of stock

5

STAY, FUEL TANK 1

164-24115-00-00

1
Out of stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

9

FUEL COCK ASSY 1

357-24500-20-00

1

$103.75

In stock

10

. NET, FILTER 2

304-24515-00-00

1
Out of stock

11

GASKET, FILTER

498-24522-00-00

1

$33.15

In stock

12

. CUP, FILTER

1A0-24521-01-00

1
Out of stock

13

. NUT

132-24531-00-00

1
Out of stock

14

GASKET, FUEL COCK

434-24532-00-00

1

$8.37

In stock

15

. VALVE

132-24523-00-00

1
Out of stock

16

LEVER, COCK

132-24524-00-00

1
Out of stock

17

WASHER, WAVE

132-24518-00-00

—
Out of stock

18

PLATE, LEVER FITTING

132-24525-01-00

1
Out of stock

19

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

20

HOSE (L135)

90445-09091-00

1
Out of stock

21

PIPE, FUEL 1

164-24311-00-00

1
Out of stock

22

CLIP 101235600

90467-08003-00

—

$6.13

In stock

23

GRIP, KNEE 1

164-24171-00-00

1
Out of stock

24

GRIP, KNEE 2

164-24172-00-00

1
Out of stock

25

EMBLEM 1

164-24161-00-00

1
Out of stock

26

SCREW, PAN HEAD

92503-04008-00

1
Out of stock

26

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

27

CAP ASSY

122-24610-01-00

—

$19.48

In stock
