1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1967 Yamaha Trailmaster (YL2C_TRAILMASTER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

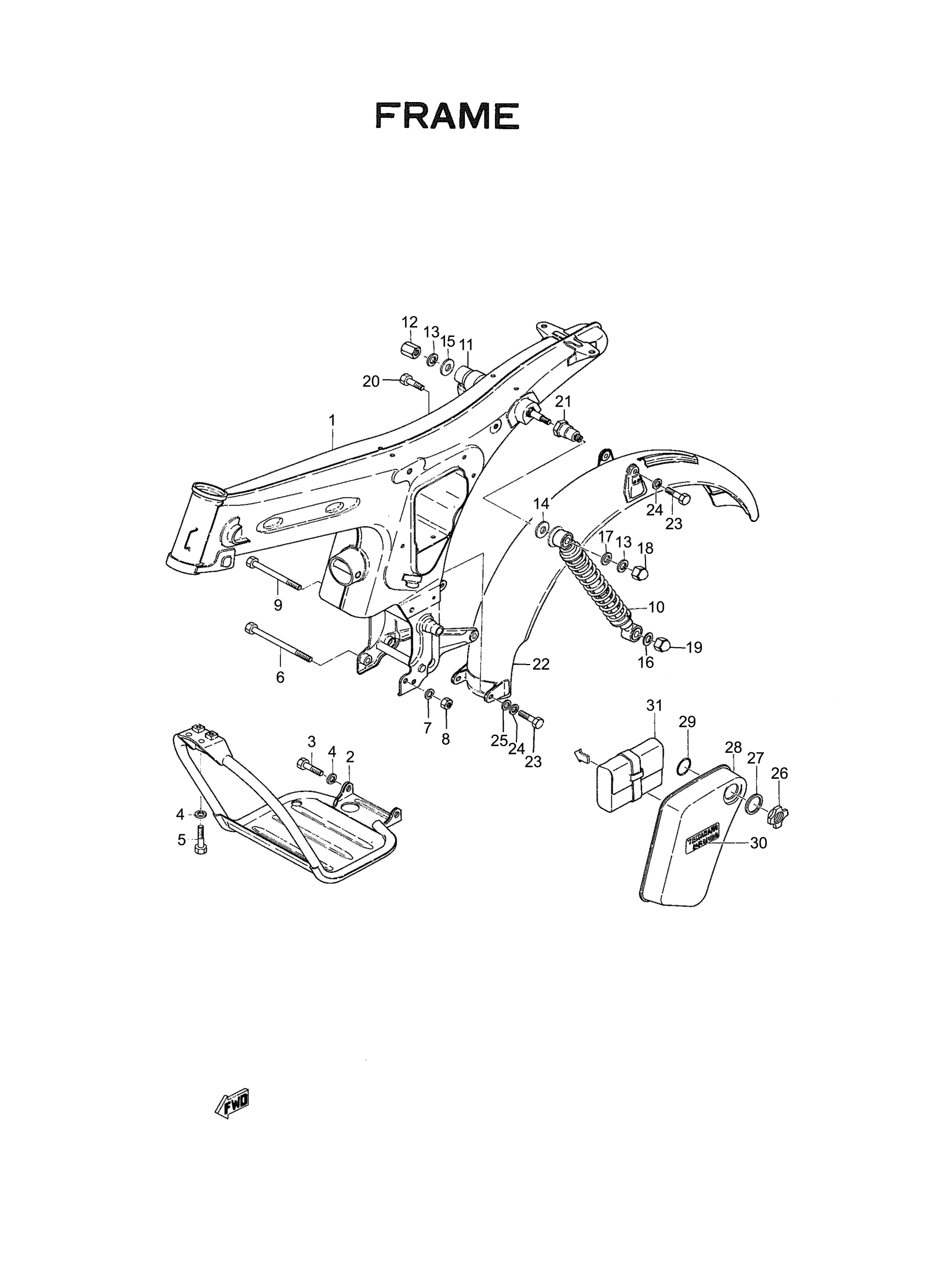

1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

164-21110-01-81

1
Out of stock

2

PROTECTOR,ENGINE

212-21471-00-33

1
Out of stock

3

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

6

BOLT, WASHER BASED (3Y2)

90105-08162-00

1
Out of stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

NUT(6L2)

95333-08600-00

1

$3.20

In stock

9

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

10

SHK/ABS ASSEMBLY, REAR

167-22210-00-00

1
Out of stock

11

SHOCK ABS ASSEMBLY, REAR

167-22220-00-00

1
Out of stock

12

NUT,HEXAGON

90170-10050-00

1
Out of stock

13

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

14

WASHER, PLATE (3X3)

90201-15797-00

1

$6.29

In stock

15

WASHER 1

167-22243-00-00

1
Out of stock

16

WASHER, PLATE(3BM)

90201-105R9-00

—
Out of stock

17

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

18

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

19

NUT, CROWN

90176-12006-00

1
Out of stock

20

BOLT, ROUND (164)

90106-08027-00

—

$5.78

In stock

21

BOLT 1

167-22241-00-00

1
Out of stock

22

FENDER,REAR

205-21610-00-35

1
Out of stock

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

26

KNOB, SIDE COVER 1

102-21714-00-00

1
Out of stock

27

SPACER, HANDLE 2 (648)

90202-34043-00

1
Out of stock

28

COVER, SIDE 1

164-21711-00-81

1
Out of stock

29

RING, STOP

102-21718-00-00

1
Out of stock

30

EMBLEM 4

134-21784-00-00

1
Out of stock

31

TOOL KIT

1E7-W2810-00-00

1
Out of stock
