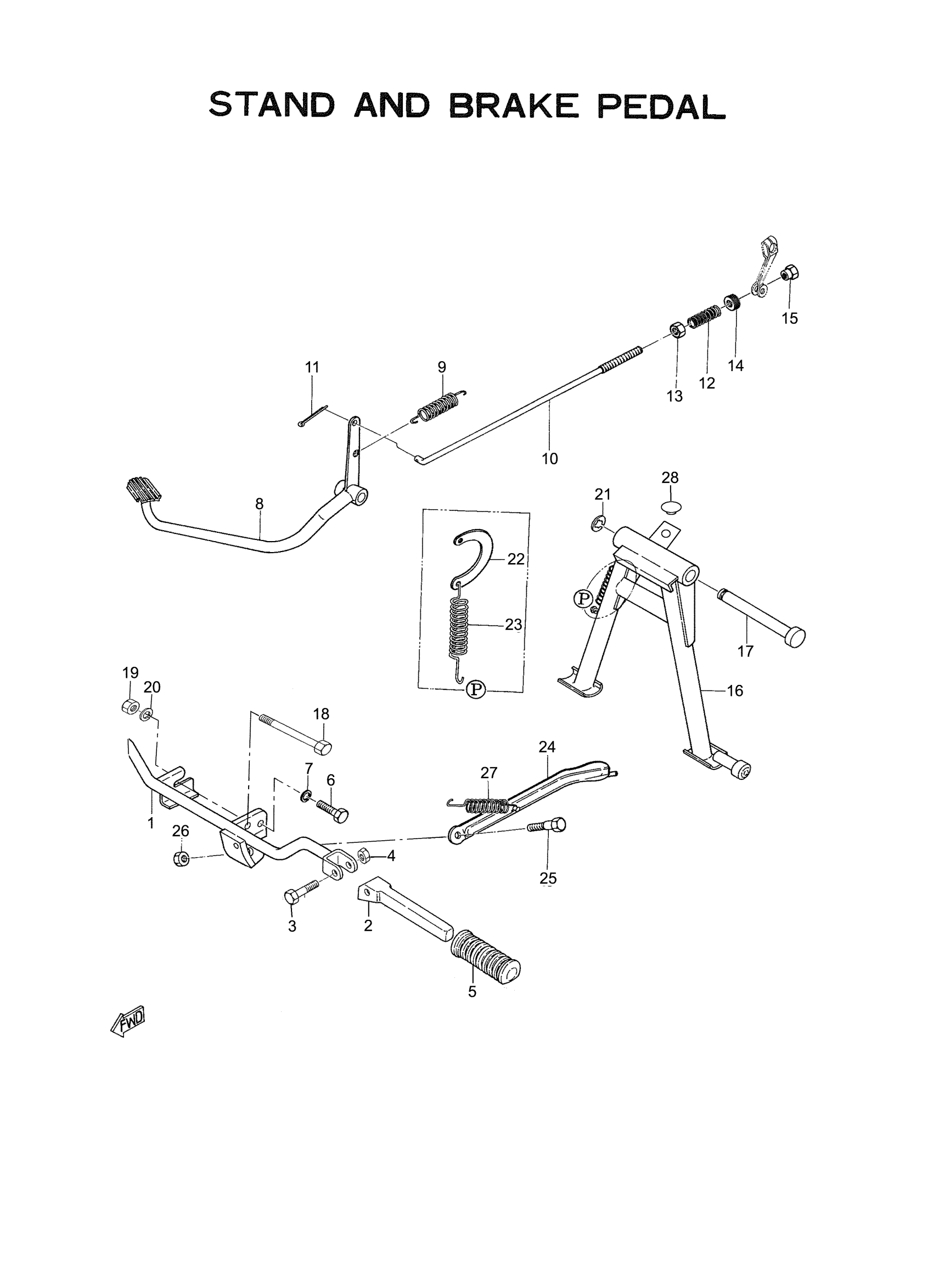

Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 STAND AND BRAKE PEDAL Diagram

#

Description
Price

1

FOOTREST 1

167-27411-02-00

Unavailable

2

FOOTREST 1

157-27411-00-00

Unavailable

3

BOLT (157-27416-00)

90109-08376-00

Unavailable

4

. NUT

95380-08700-00

Unavailable

5

COVER, FOOT REST

156-27413-00-00

$39.99

6

BOLT, HEXAGON

97013-08020-00

$1.16

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

PEDAL, BRAKE

167-27211-00-91

Unavailable

9

SPRING (109-27216-00)

90506-20041-00

$7.49

10

ROD, BRAKE

167-27231-00-00

Unavailable

11

PIN, COTTER

91490-20025-00

$1.99

12

SPRING, (180-27236-00)

90501-10245-00

$8.49

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

SEAT, SPRING

148-27239-00-00

Unavailable

15

NUT (25K)

90179-06411-00

$8.49

16

STAND, MAIN

167-27111-01-00

Unavailable

17

SHAFT, MAIN STAND

122-27112-00-00

Unavailable

18

BOLT

90109-08372-00

Unavailable

19

NUT(6L2)

95333-08600-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

21

CIRCLIP (122)

93430-12008-00

Unavailable

22

LINK, MAIN STAND

109-27115-00-00

Unavailable

23

SPRING TENSION 174271160000

90506-32056-00

Unavailable

24

STAND, SIDE

167-27311-00-00

Unavailable

25

BOLT 122273170100

90109-08032-00

Unavailable

26

. NUT

95380-08700-00

Unavailable

27

SPRING TENSION 150273160000

90506-25047-00

Unavailable

28

STOPPER, MAIN STAND

128-27114-00-00

Unavailable
