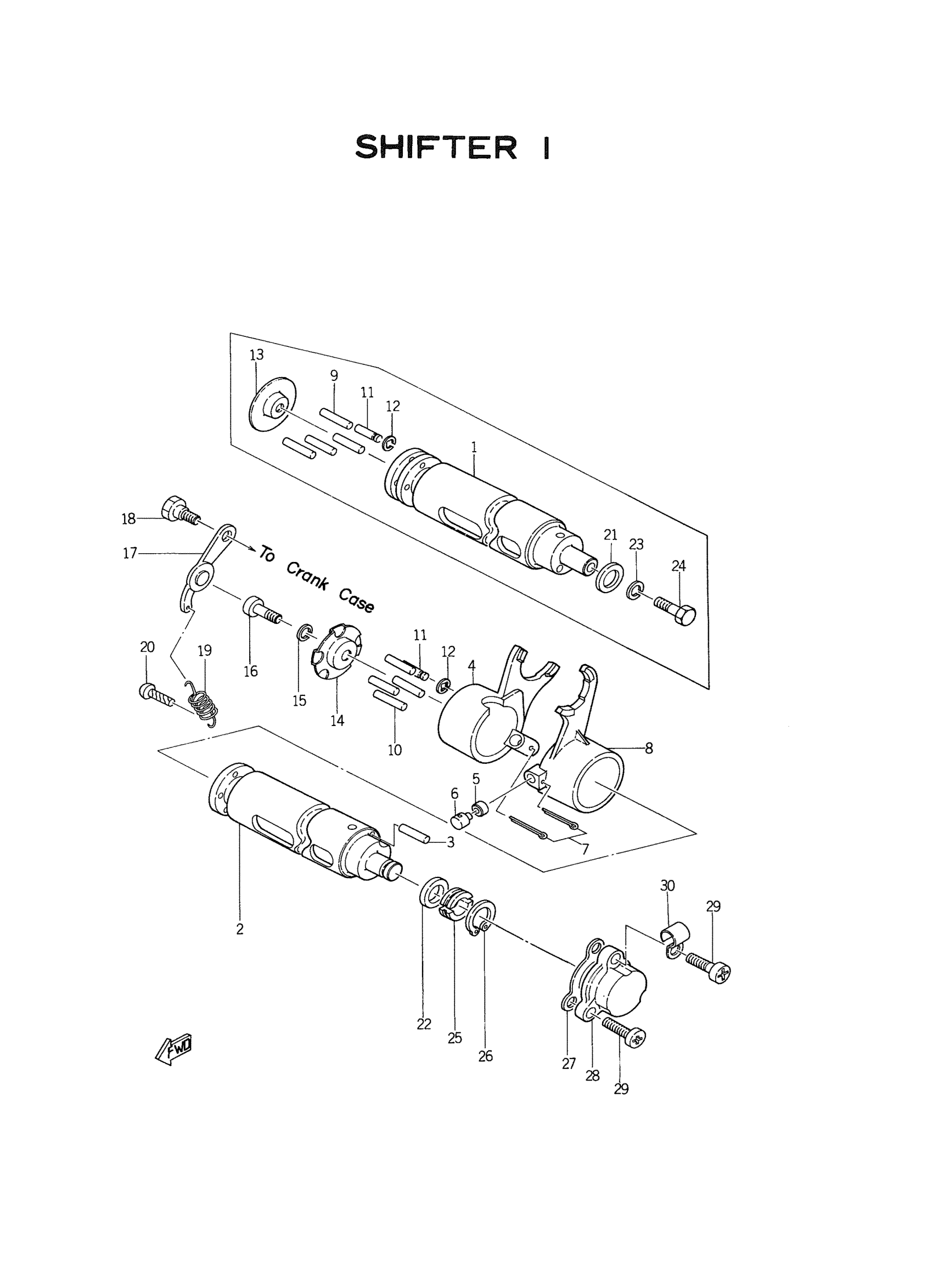

Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 SHIFTER (1) Diagram
#
1
SHIFTER ASY
166-18500-63-00
Unavailable
1
SHIFTER ASY
166-18500-63-00
Unavailable
2
CAM,SHIFT
166-W1854-63-00
Unavailable
2
CAM,SHIFT
166-W1854-63-00
Unavailable
3
.. PIN, DOWEL
93605-20043-00
Unavailable
4
. FORK, SHIFT 2
164-18512-00-00
Unavailable
5
. PIN, STRAIGHT
90250-10020-00
Unavailable
7
. FORK, SHIFT 1
164-18511-00-00
Unavailable
8
PIN, DOWEL
93604-23027-00
Unavailable
10
. PIN, SPEC''L SHAPE (174-18544-00)
90249-04039-00
Unavailable
11
. CIRCLIP, E-TYPE
93430-03014-00
Unavailable
14
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
15
SCREW,PAN HEAD
92503-05012-00
Unavailable
16
. ROLLER, CAM FOLLOWER
164-18551-00-00
Unavailable
17
STOPPER LEVER ASSY
132-18140-01-00
Unavailable
18
BOLT
90109-06239-00
Unavailable
19
SPRING, TENSION (260)
90506-09112-00
Unavailable
20
HOOK, SPRING
132-16346-00-00
Unavailable
21
WASHER, PLATE
90201-06020-00
Unavailable
22
WASHER PLATE 164185720000
90201-12166-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
BOLT, HEXAGON
97017-06025-00
Unavailable
24
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
25
HOLDER, SHIFT CAM
307-18571-00-00
Unavailable
26
CIRCLIP
93440-15012-00
Unavailable
27
GASKET, PLUG BLIND
4EG-18579-00-00
Unavailable
28
PLUG, BLIND SHIFT CAM
164-18589-00-00
Unavailable
29
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
30
CLAMP 164825940000
90462-05012-00
Unavailable
