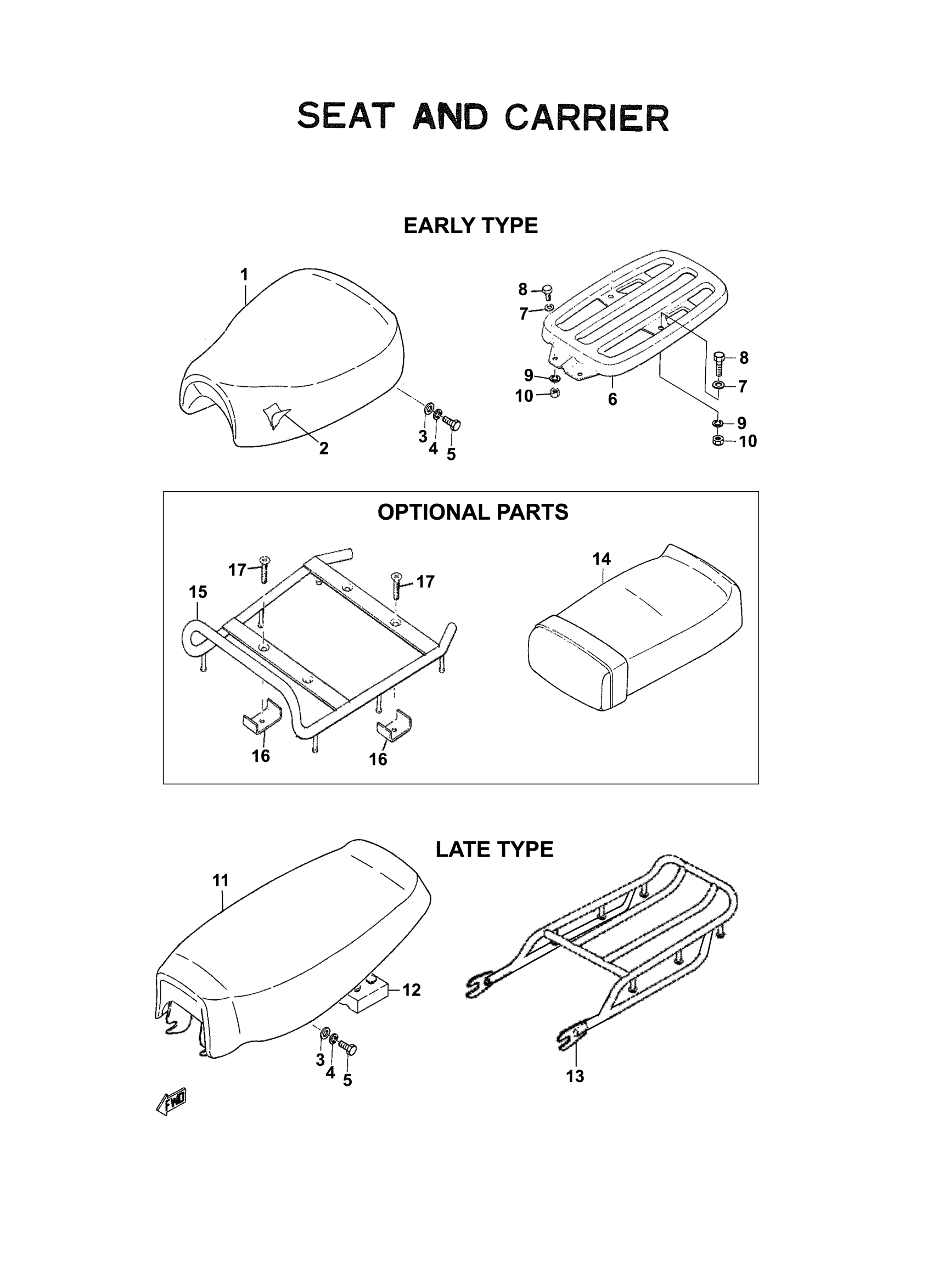

Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 SEAT AND CARRIER Diagram

SINGLE SEAT ASSEMBLY

164-24710-00-00

Unavailable

. COVER, SINGLE SEAT

164-24711-00-00

Unavailable

WASHER, PLAIN

92990-08200-00

Unavailable

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

BOLT(JA9)

90101-08691-00

$4.29

CARRIER ASSEMBLY

164-24810-00-35

Unavailable

WASHER, PLAIN

92990-08200-00

Unavailable

BOLT(JA9)

90101-08691-00

$4.29

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

NUT(6L2)

95333-08600-00

$2.49

SEMI-DBL SEAT ASSEMBLY

167-24770-00-00

Unavailable

PAD, SEAT

1L9-24741-00-00

$9.99

CARRIER YL2C/M

167-24830-00-00

Unavailable

TANDEM SEAT ASSEMBLY

107-24750-00-00

Unavailable

CARRIER ASSEMBLY

162-24840-00-00

Unavailable

CLAMP, CARRIER

162-24815-00-00

Unavailable

SCREW,FLAT HEAD

92703-08030-00

Unavailable
