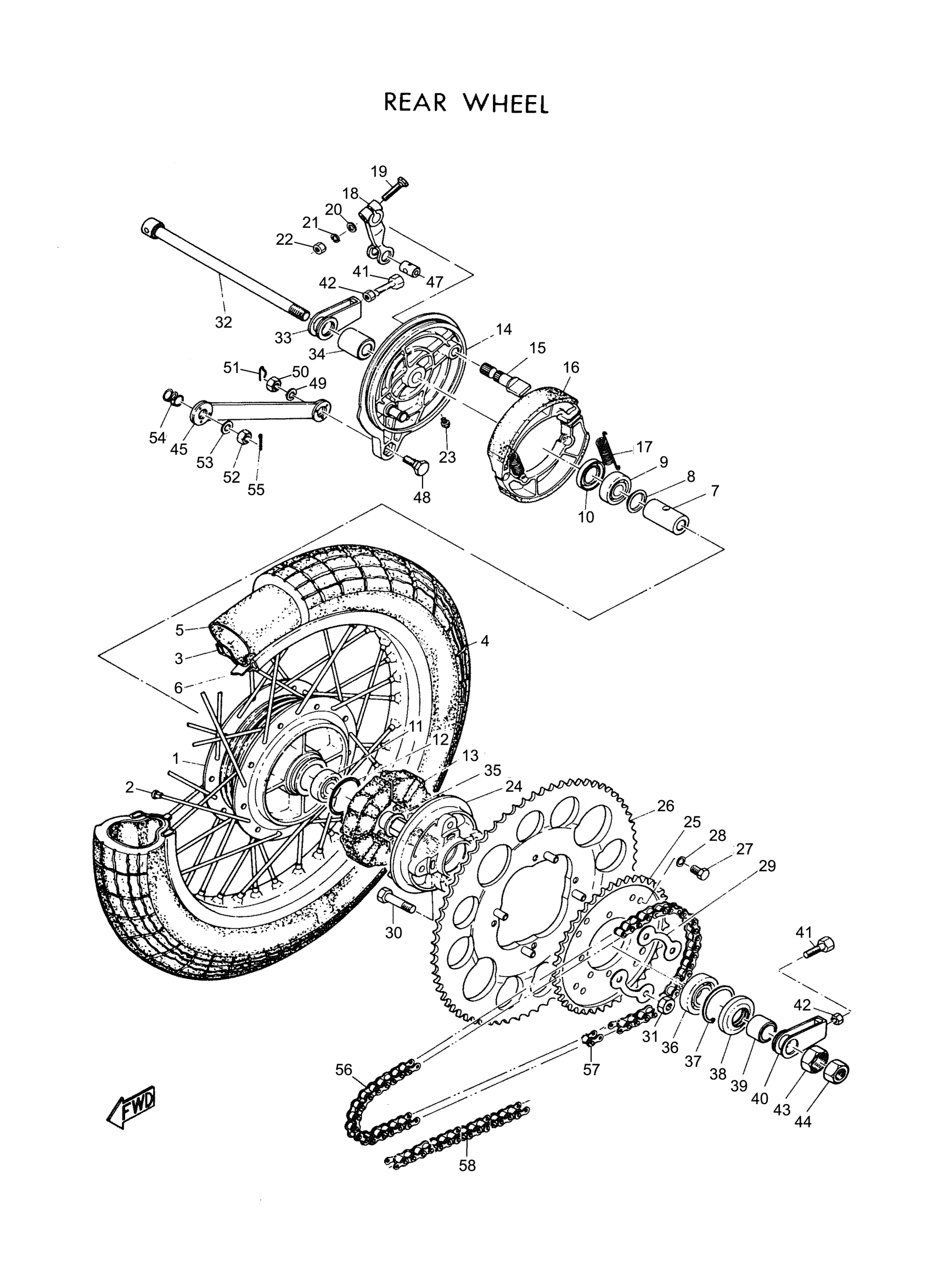

Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 REAR WHEEL Diagram
#
1
HUB,REAR
102-25311-00-38
Unavailable
1
HUB, REAR
132-25311-00-38
Unavailable
2
SPOKE SET, REAR
164-25304-00-00
Unavailable
2
SPOKE SET, REAR
183-25304-01-00
Unavailable
3
RIM 1.60X18
94416-18018-00
Unavailable
4
300X18 YOKO Y610
94130-18041-00
Unavailable
13
DAMPER
102-25364-00-00
Unavailable
13
DAMPER, CLUTCH
304-25364-01-00
Unavailable
14
BRAKE SHOE PLT ASY
339-25320-10-00
Unavailable
15
CAM SHAFT
122-25351-02-00
Unavailable
16
BRAKE SHOE SET-2PCS
183-W2536-00-00
Unavailable
16
BRAKE SHOE KIT
4KN-W253E-11-00
Unavailable
17
SPRING (5T9)
90506-17328-00
Unavailable
18
LEVER, CAM SHAFT
122-25355-00-00
Unavailable
19
BOLT(3DM)
97024-06020-00
Unavailable
20
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
NUT, HEXAGON
95380-06600-00
Unavailable
23
NIPPLE, GREASE
93700-06M03-00
Unavailable
24
CLUTCH, HUB
102-25366-00-00
Unavailable
24
CLUTCH, HUB
296-25366-01-33
Unavailable
25
SPROCKET, DRIVN 37T
167-25437-10-33
Unavailable
25
SPROCKET, DRIVN 40T
167-25440-10-33
Unavailable
26
SPROCKET, DRIVN 70T
167-25470-10-00
Unavailable
27
BOLT, HEXAGON
97013-08030-00
Unavailable
28
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
29
WASHER
4AW-25412-00-00
Unavailable
30
BOLT(1AJ)
90101-08672-00
Unavailable
31
NUT(6L2)
95333-08600-00
Unavailable
32
AXLE, WHEEL
167-25381-00-00
Unavailable
33
PULLER,CHAIN 2
130-25389-00-00
Unavailable
34
COLLAR 102253830000
90387-12412-00
Unavailable
35
SHAFT, SPROCKET
167-25387-00-00
Unavailable
36
BEARING(3BN)
93306-00438-00
Unavailable
37
CIRCLIP(5U8)
99009-42500-00
Unavailable
38
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
39
COLLAR 167253860000
90387-18144-00
Unavailable
40
PULLER,CHAIN 1
130-25388-09-00
Unavailable
41
BOLT HEXAGON 167253790000
90101-06016-00
Unavailable
42
NUT, HEXAGON
95380-06600-00
Unavailable
43
NUT, HEXAGON
90170-18165-00
Unavailable
44
NUT, HEXAGON
90170-12063-00
Unavailable
45
BAR, TENSION
102-25371-00-00
Unavailable
46
PIN, COTTER
91490-25020-00
Unavailable
47
PIN 1562723700
90249-12008-00
Unavailable
48
BOLT 1022537300
90109-08183-00
Unavailable
49
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
50
. NUT
95380-08700-00
Unavailable
51
CLIP (156-83525-00)
90468-10050-00
Unavailable
52
NUT (682)
95380-10700-00
Unavailable
53
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
54
SPRING,COMPRESSION
90501-20129-00
Unavailable
55
PIN, COTTER
91490-20025-00
Unavailable
56
CHAIN, DRIVE
9Y580-52103-00
Unavailable
57
JOINT, CHAIN (29A)
94680-52001-00
Unavailable
58
CHAIN 18L
94504-20018-00
Unavailable
