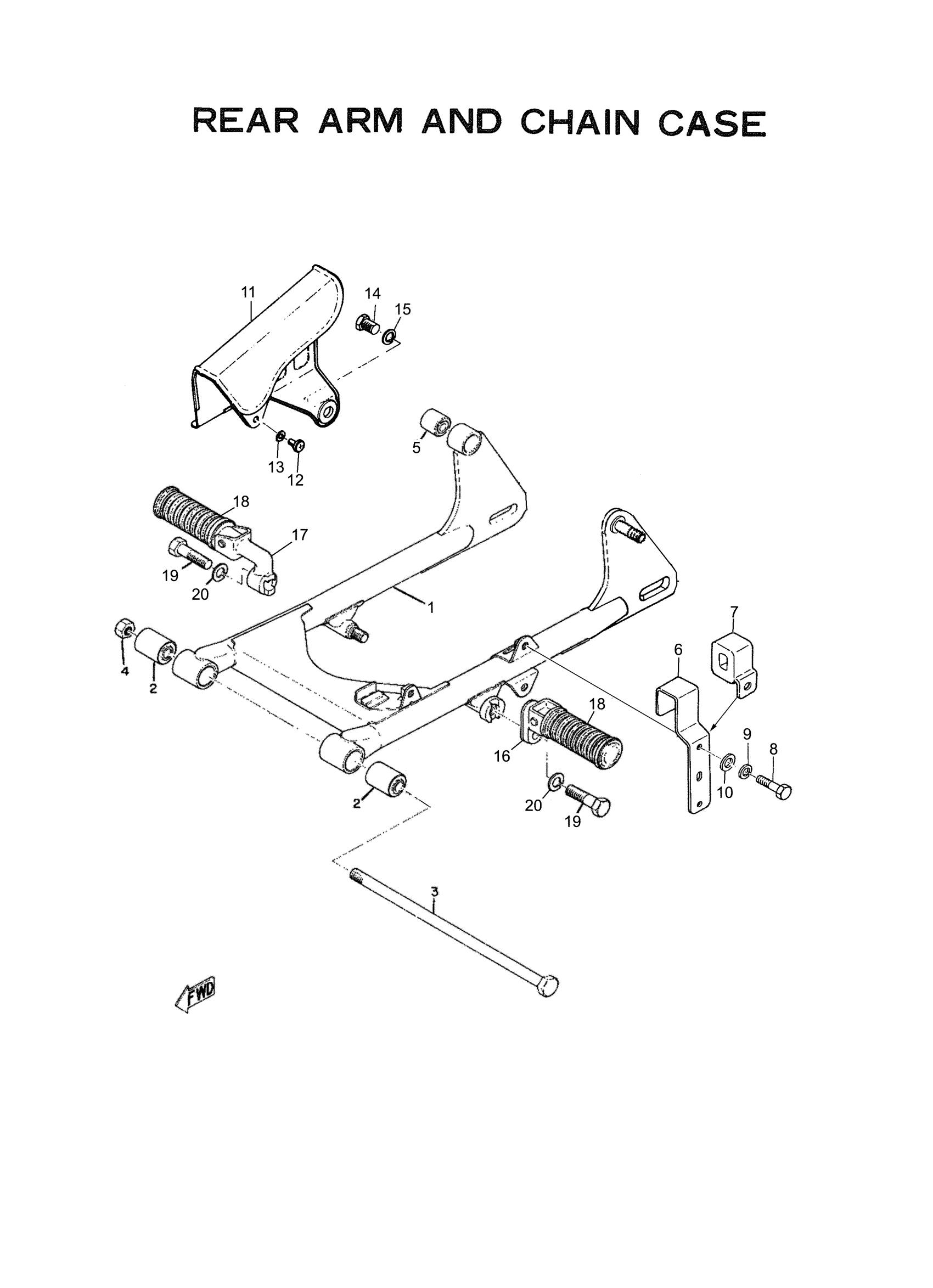

Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 REAR ARM AND CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

167-22110-00-00

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

SHAFT, PIVOT

167-22141-00-00

Unavailable

4

NUT(3BM)

95314-10600-00

$2.39

5

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

6

GUARD, CHAIN

167-22318-00-81

Unavailable

7

PROTECTOR

234-15493-00-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

CASE, CHAIN

205-22311-00-81

Unavailable

12

SCREW PAN HEAD

98580-06010-00

$8.49

13

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

14

BOLT, HEXAGON

97321-12018-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

RR FOOTREST ASSEMBLY 1

167-27430-00-00

Unavailable

17

RR FOOTREST ASSEMBLY 1

178-27430-00-00

Unavailable

18

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

19

BOLT,HEXAGON

97321-12040-00

Unavailable

20

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49
