- YL2C_TRAILMASTER (TRAILMASTER) 167 1967

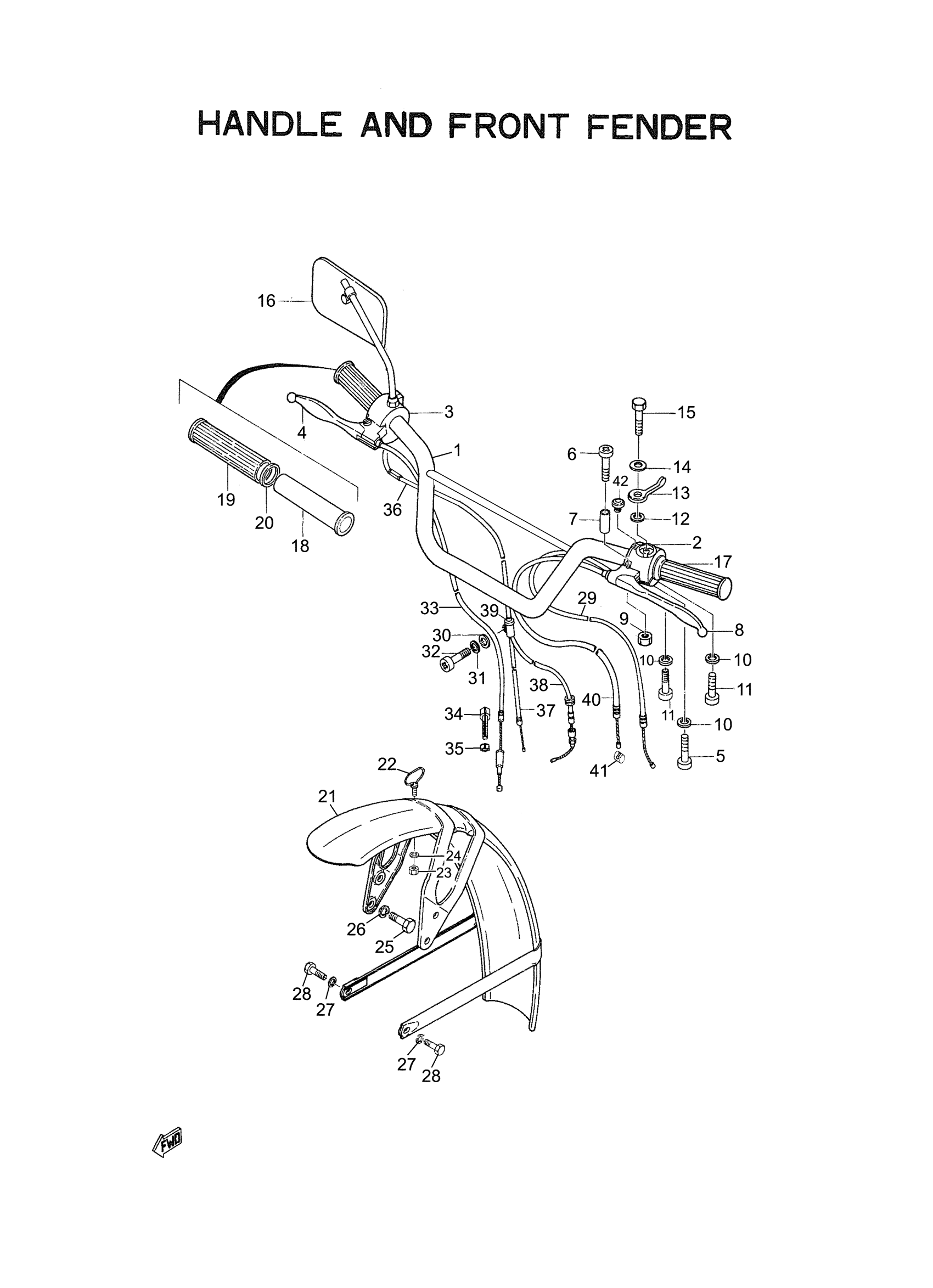

HANDLE AND FRONT FENDER
Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 HANDLE AND FRONT FENDER Diagram
#
1
HANDLEBAR
167-26111-00-00
Unavailable
2
LEVER HOLDER ASSEMBLY 1
137-82710-11-00
Unavailable
3
LEVER HOLDER ASSEMBLY 2
167-82820-11-94
Unavailable
5
SCREW, OVAL HEAD
98603-05008-00
Unavailable
6
SCREW, PAN HEAD
92503-05025-00
Unavailable
7
. COLLAR, LEVER 1
137-83913-01-00
Unavailable
8
LEVER (L.H)
137-83912-02-38
Unavailable
11
SCREW, PAN HEAD
92503-05025-00
Unavailable
13
LEVER, STARTER
137-83941-02-00
Unavailable
14
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
15
BOLT (11T)
90101-06576-00
Unavailable
16
MIRROR ASSEMBLY RH
266-26290-00-00
Unavailable
17
GRIP LH
341-26241-00-00
Unavailable
18
TUBE, GUIDE
1V1-26243-00-00
Unavailable
19
GRIP RH
137-26242-60-00
Unavailable
20
RING, LEAF
150-26249-00-00
Unavailable
21
FENDER, FRONT
167-21510-00-35
Unavailable
22
HOLDER, CABLE
174-21518-00-00
Unavailable
23
NUT, HEXAGON
95380-06600-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
26
BOLT(62E)
97013-08012-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
BOLT(3JP)
97017-06010-00
Unavailable
29
CABLE, STARTER 1
164-26331-10-00
Unavailable
30
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
32
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
33
WIRE, BRAKE
132-26341-10-00
Unavailable
34
BOLT (109-26345-00)
90123-06011-00
Unavailable
35
NUT (109-26344-00)
90179-06143-00
Unavailable
36
CABLE, THROTTLE 1
137-26311-60-00
Unavailable
37
CABLE, THROTTLE 2
164-26312-00-00
Unavailable
38
PUMP CABLE ASSY
4W8-26320-01-00
Unavailable
39
CONNECTOR, CABLE
137-26261-01-00
Unavailable
40
WIRE, CLUTCH
124-26335-10-00
Unavailable
41
END, WIRE
164-26363-00-00
Unavailable
42
PLUG (17J)
90338-07124-00
Unavailable
