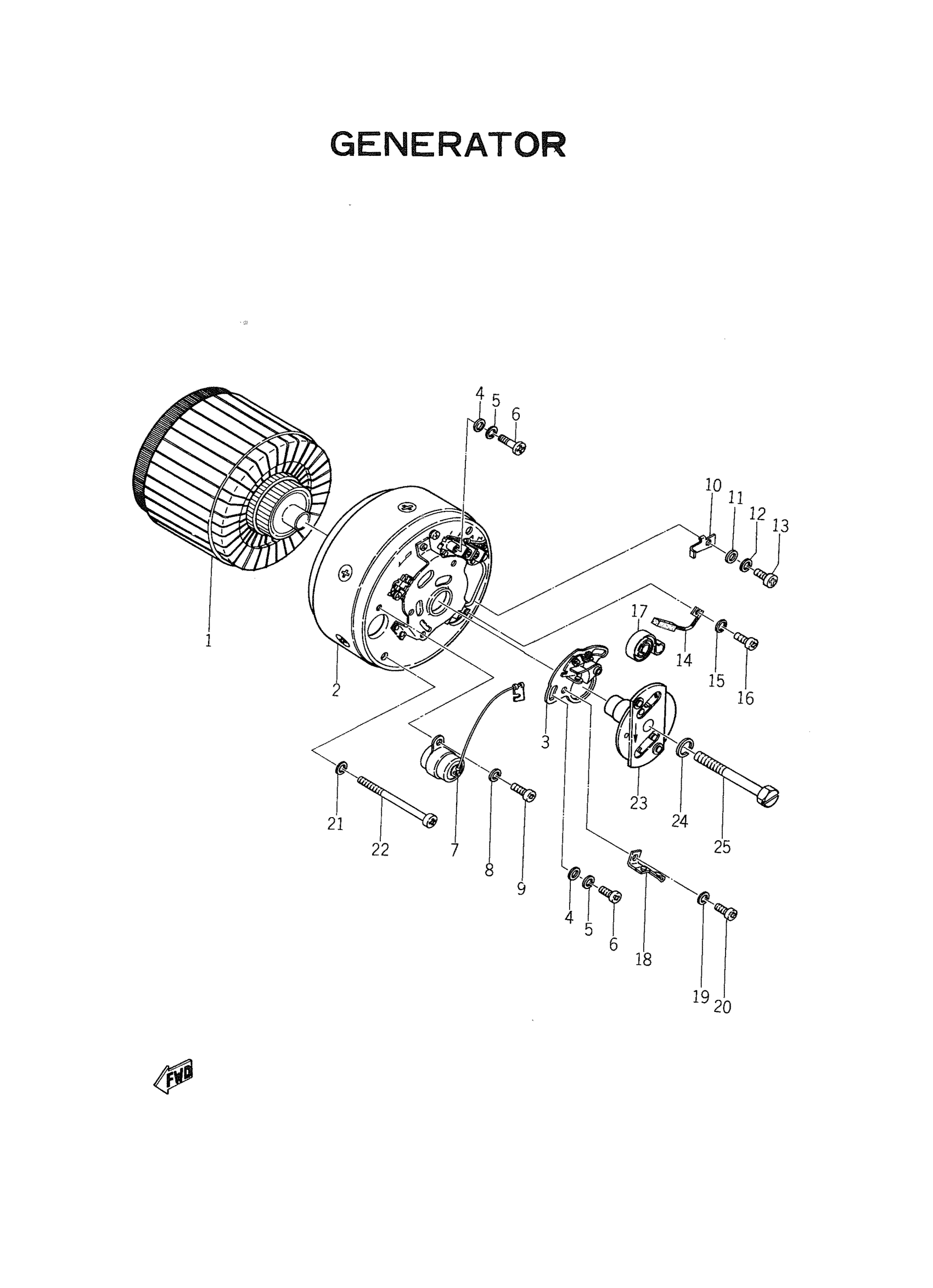

Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 GENERATOR (ONLY FOR YL2C) Diagram

#

Description
Price

1

ARMATURE

165-81155-21-00

Unavailable

1

ARMATURE

165-81155-21-00

Unavailable

2

STATOR ASSY

99999-00185-00

Unavailable

2

STATOR ASSEMBLY

165-81110-22-00

Unavailable

3

.. CONTACT BRKR ASSEMBLY

165-81121-21-00

Unavailable

4

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

7

.. CONDENSER 2

165-81126-20-00

Unavailable

7

.. CONDENSER 2

165-81126-21-00

Unavailable

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

10

.. PLATE, TIMING

165-81132-20-00

Unavailable

11

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

14

.. BRUSH

165-81111-20-00

Unavailable

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

.. SPRING, BRUSH

165-81113-20-00

Unavailable

18

LUBRICATOR

131-81231-20-00

Unavailable

19

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

20

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

21

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

22

. SCREW, STATOR

165-81135-21-00

Unavailable

23

. GOVERNOR ASSEMBLY

165-81153-20-00

Unavailable

23

. GOVERNOR ASSEMBLY

165-81153-21-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

. BOLT

165-81152-20-00

Unavailable
