1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1967 Yamaha Trailmaster (YL2C_TRAILMASTER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

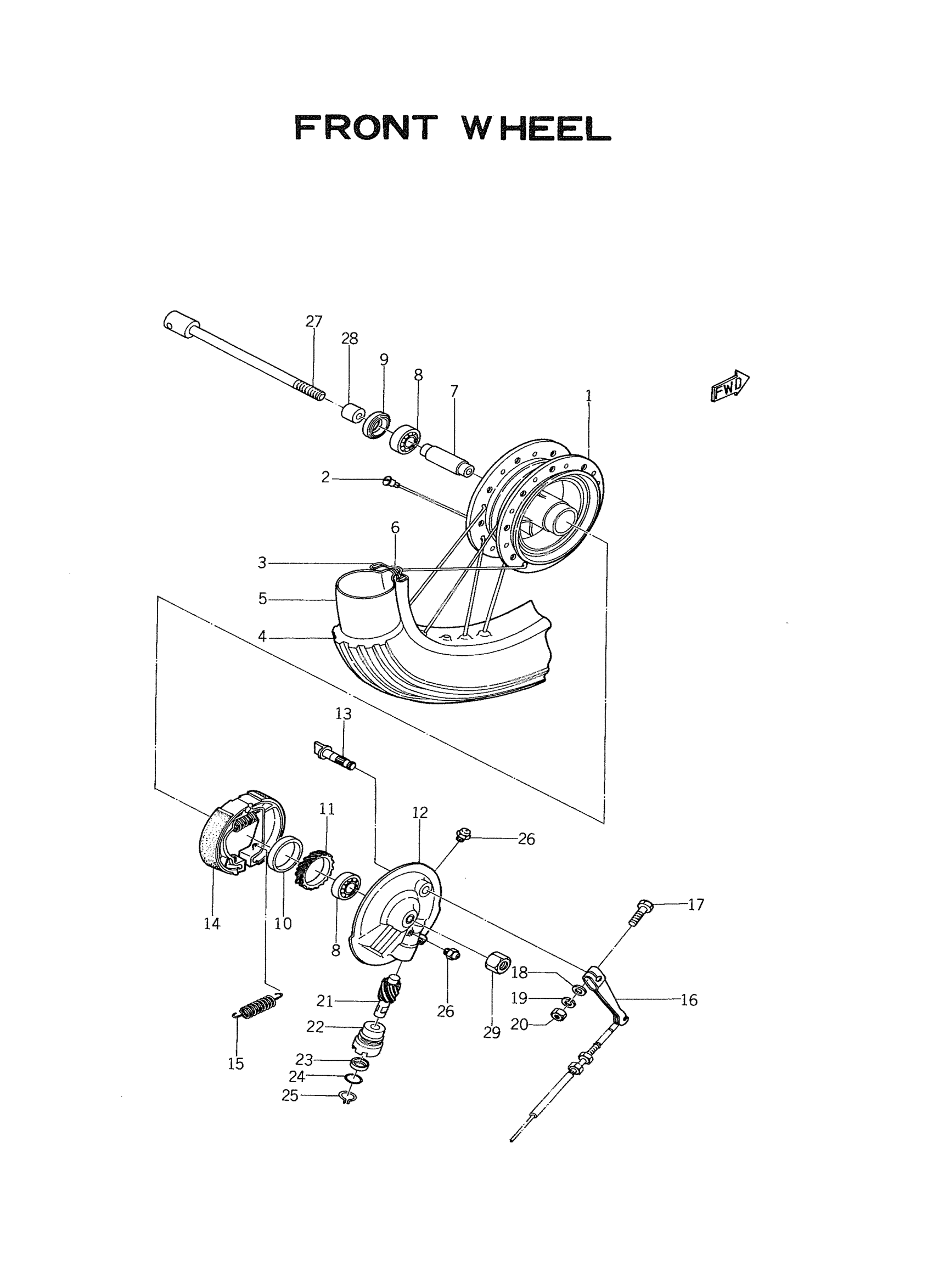

1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,FRONT

102-25111-01-38

1
Out of stock

2

SPOKE SET, FRONT

164-25104-00-00

1
Out of stock

3

RIM 1.60X18

94416-18017-00

1
Out of stock

4

300X18 YOKO Y610

94130-18041-00

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER, BEARING

102-25117-00-00

1
Out of stock

8

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

9

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

10

OIL SEAL, OS-TYPE

93107-42001-00

1
Out of stock

11

GEAR, DRIVE

164-25135-00-00

1
Out of stock

12

PLATE, BRAKE SHOE

122-25121-02-38

1
Out of stock

13

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

14

BRAKE SHOE KIT

4KN-W253E-11-00

1

$22.40

In stock

15

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

16

LEVER, CAMSHAFT 1

109-25155-00-00

1
Out of stock

17

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

18

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

GEAR, METER

164-25138-00-00

1
Out of stock

22

BUSHING

109-25136-00-00

—

$8.78

In stock

23

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

24

O-RING (26H)

93210-14579-00

—

$5.69

In stock

25

RING, STOP

102-25137-00-00

—
Out of stock

26

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

27

AXLE,WHEEL

5G3-25181-00-00

1
Out of stock

28

COLLAR

90387-10079-00

1
Out of stock

29

NUT,SPEC'L SHAPE

90179-10106-00

1
Out of stock
