1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1967 Yamaha Trailmaster (YL2C_TRAILMASTER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

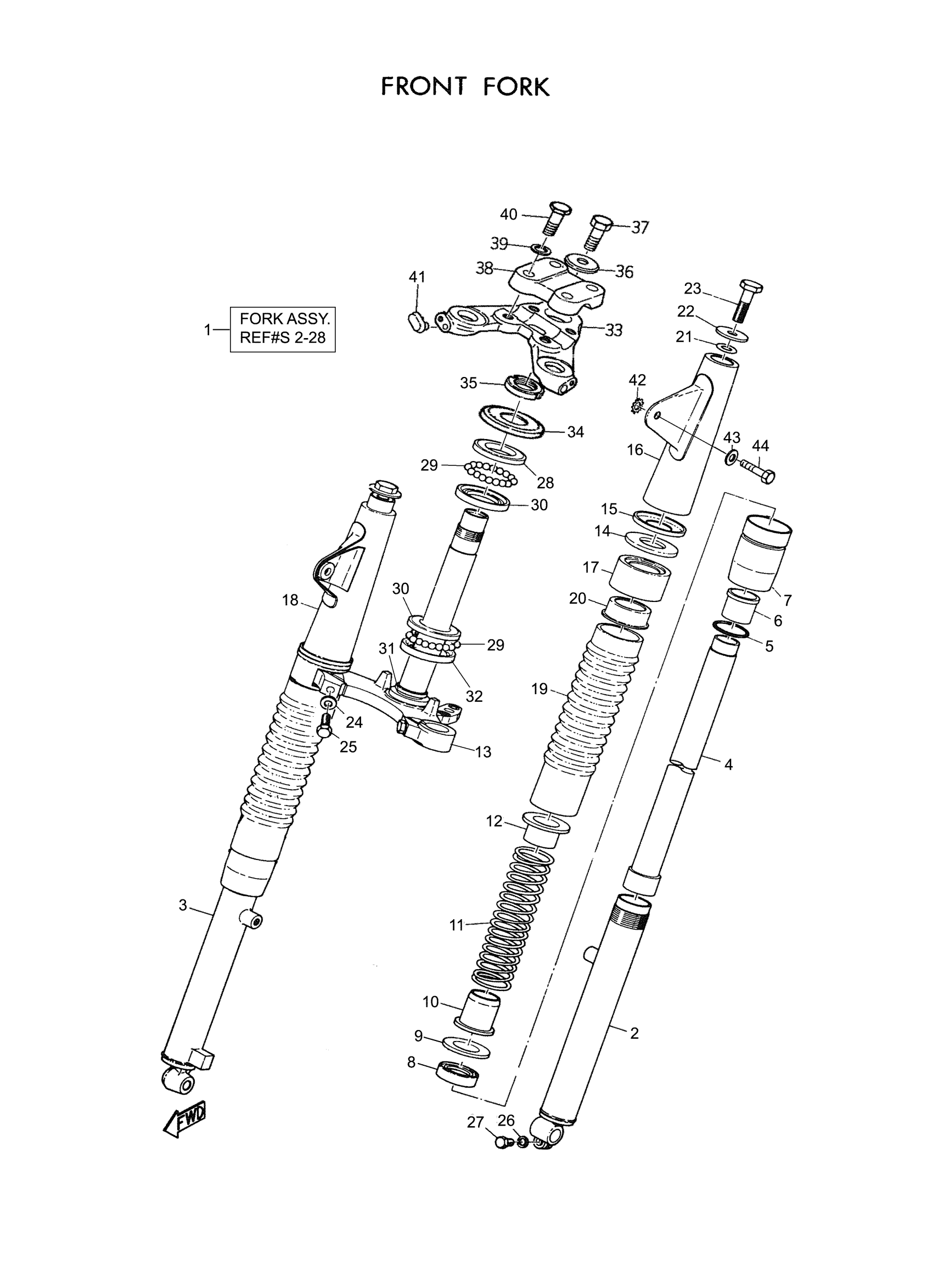

1967 Yamaha Trailmaster (YL2C_TRAILMASTER) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

167-23100-00-81

1
Out of stock

2

. TUBE, OUTER 1

167-23126-00-81

1
Out of stock

3

. TUBE, OUTER 2

167-23136-00-81

1
Out of stock

4

. TUBE, INNER 1

167-23124-00-00

1
Out of stock

5

. O-RING

164-23147-00-00

1
Out of stock

6

. METAL, SLIDE 1

164-23125-00-00

1
Out of stock

7

. NUT, OUTER TUBE

167-23127-00-00

1
Out of stock

8

. OIL SEAL

164-23145-01-00

1
Out of stock

9

. WASHER, OIL SEAL

464-23146-00-00

1
Out of stock

10

. SEAT, SPRING LOWER

164-23143-00-00

1
Out of stock

11

SPRING,FRONT FORK

205-23141-40-00

1
Out of stock

12

. SEAT, SPRING UPPER

167-23142-00-00

1
Out of stock

13

. UNDER BRACKET

164-23340-00-33

1
Out of stock

14

PACKING(LAMP STAY)

164-23163-00-00

1

$6.46

In stock

15

. GUIDE, COVER LOWER

166-23116-80-00

1
Out of stock

16

. COVER, UPPER 1

166-23121-80-81

1
Out of stock

17

. COVER, UPPER 2

166-23131-80-81

1
Out of stock

18

. COVER, OUTER

167-23122-00-00

1
Out of stock

19

BOOT,FRONT FORK

183-23191-40-00

1
Out of stock

20

. GUIDE, BOOT

167-23193-00-00

1
Out of stock

21

GASKET

307-23114-00-00

—
Out of stock

22

. WASHER, CAP

164-23112-00-00

1
Out of stock

23

. BOLT, CAP

164-23111-00-00

1
Out of stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

25

BOLT 1

122-23346-02-00

—

$6.25

In stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

27

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

28

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

29

BALL

93501-04011-00

—
Out of stock

30

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

31

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

32

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

33

CROWN, HANDLE

183-23435-00-38

1
Out of stock

34

COVER, BALL RACE

136-23415-00-00

—

$7.71

In stock

35

NUT

90179-25004-00

—

$20.78

In stock

36

WASHER, PLATE

90201-10147-00

1
Out of stock

36

WASHER (1YJ)

90209-10160-00

—

$5.68

In stock

37

BOLT 1222345100

90105-10006-00

—

$9.17

In stock

38

HOLDER HANDLE UPR

164-23441-01-38

1
Out of stock

39

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

40

BOLT

97013-08035-00

—

$4.80

In stock

41

PLUG, BLIND

164-83319-00-00

1
Out of stock

42

WASHER (688)

92990-08400-00

1

$3.46

In stock

43

WASHER, PLAIN

92903-08200-00

1
Out of stock

44

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock
