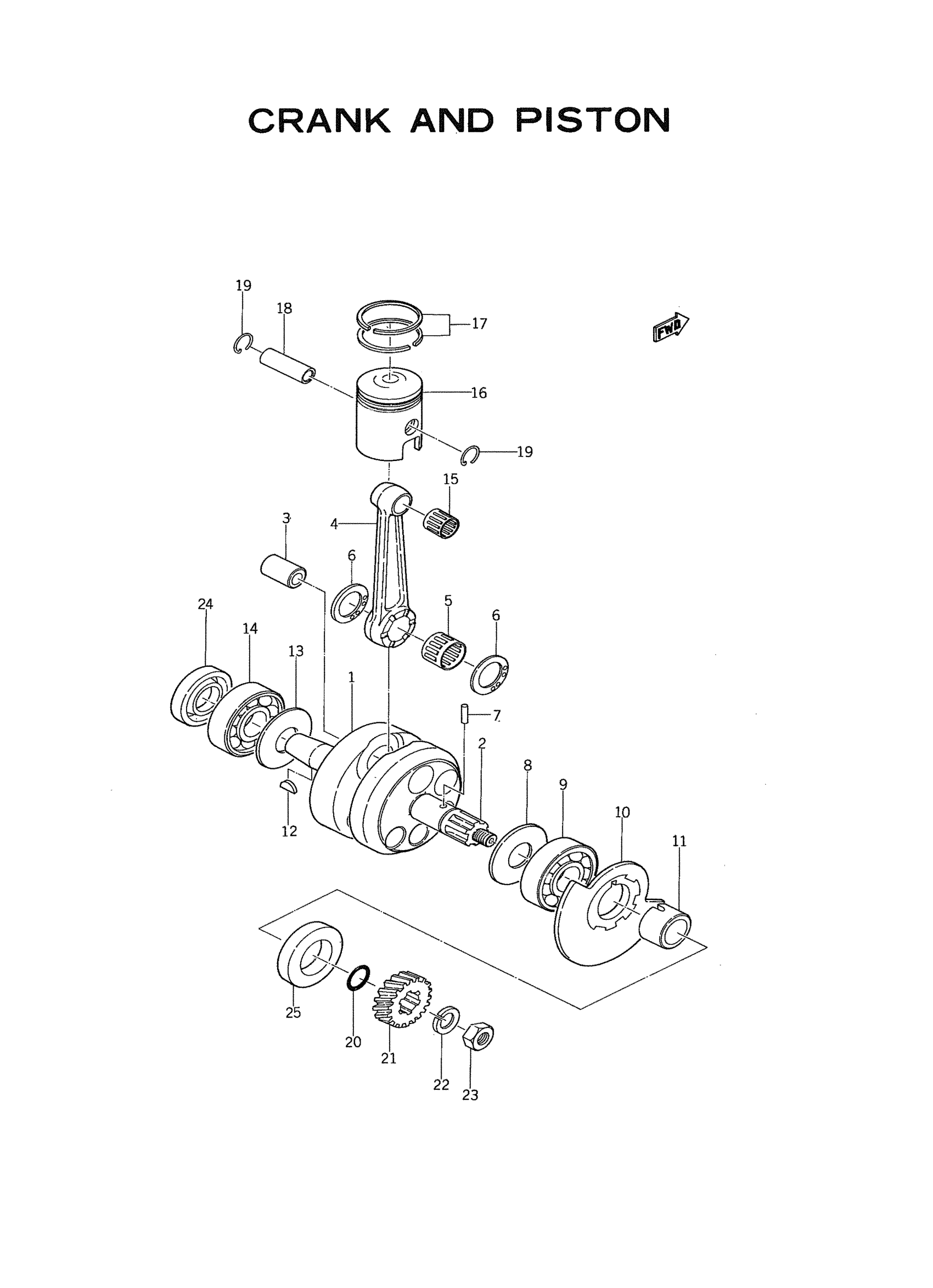

Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 CRANK AND PISTON Diagram

#

Description
Price

1

CRANK 1

255-11412-00-00

Unavailable

2

. CRANK 2

164-11422-00-00

Unavailable

3

PIN, CRANK

5E2-11681-00-00

$32.99

4

ROD, CONNECTING

164-11651-00-00

Unavailable

5

BRG,CYL-CAL ROLLER 14G TM

93310-42237-00

Unavailable

6

WASHER (29L)

90209-22248-00

Unavailable

7

PIN,DOWEL (137)

93604-14012-00

$1.81

8

SHIM, CRANK 1

136-11561-00-04

Unavailable

9

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$65.99

10

VALVE, ROTARY

166-13512-00-00

Unavailable

11

COLLAR, VALVE

164-13515-00-00

Unavailable

12

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

13

SHIM, CRANK 1

136-11561-00-04

Unavailable

14

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$65.99

15

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

$31.99

16

PISTON STD

166-11631-01-96

Unavailable

16

PISTON 1 O/S 0.25

166-11635-01-00

Unavailable

16

PISTON 2 O/S 0.50

166-11636-01-00

Unavailable

16

PISTON 3 O/S 0.75

166-11637-01-00

Unavailable

16

PISTON 4 O/S 1.00

166-11638-01-00

Unavailable

17

PISTON RINGSET STD

166-11601-09-00

Unavailable

17

PISTON RINGSET 1ST

166-11601-19-00

Unavailable

17

PISTON RINGSET 2ND

166-11601-29-00

Unavailable

17

PISTON RINGSET 3RD

166-11601-30-00

Unavailable

17

PISTON RINGSET 4TH

166-11601-40-00

Unavailable

18

PIN, PISTON

131-11633-00-00

Unavailable

19

CIRCLIP 131116340000

93450-15023-00

Unavailable

20

O-RING(3KX)

93210-180A6-00

Unavailable

21

GEAR, PRI DRIVE

164-16111-00-00

Unavailable

22

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

23

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

24

OIL SEAL(4BA)

93102-20447-00

Unavailable

25

OIL SEAL (28X47X8-137)

93103-28012-00

Unavailable

26

CRANKSHAFT ASY

255-11400-00-00

Unavailable
